SRT Microcéramique Low Inductance Capacitor Series

SRT Microcéramique Low Inductance Capacitor Series
  • Low inductance ceramic chip MLCC capacitors
  • Available in capacitance ratings between 1nF and 470nF
  • Available in standard chip sizes from 0204 to 0612
  • Dissipation factor under 2.5% at 1kHz
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of Voltage ratings: 6.3V, 10V, 16V, 25V and 50V
  • Selection of tolerances: ±10% and ±20%
  • Operating temperature between -55°C and +125°C

The Low Inductance ceramic chip MLCC capacitor series from SRT Microcéramique offers a high-speed energy transfer for semiconductor applications. This series features a wide range of options to suit any demand, including capacitance between 1nF to 470nF across a range of chip sizes from 0204 to 0612, a selection of ±10% or ±20% tolerance, voltage options (6.3V, 10V, 16V, 25V and 50V) and a selection of termination options. As with all SRT-MC components, the X7R capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Nickel
  • Tin-plated Copper
  • Flexible Tin-plated polymer (Microflex), improving the resistance to brittle fracture if the board is subject to flexion or vibration

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please Contact us to discuss the custom solutions available.

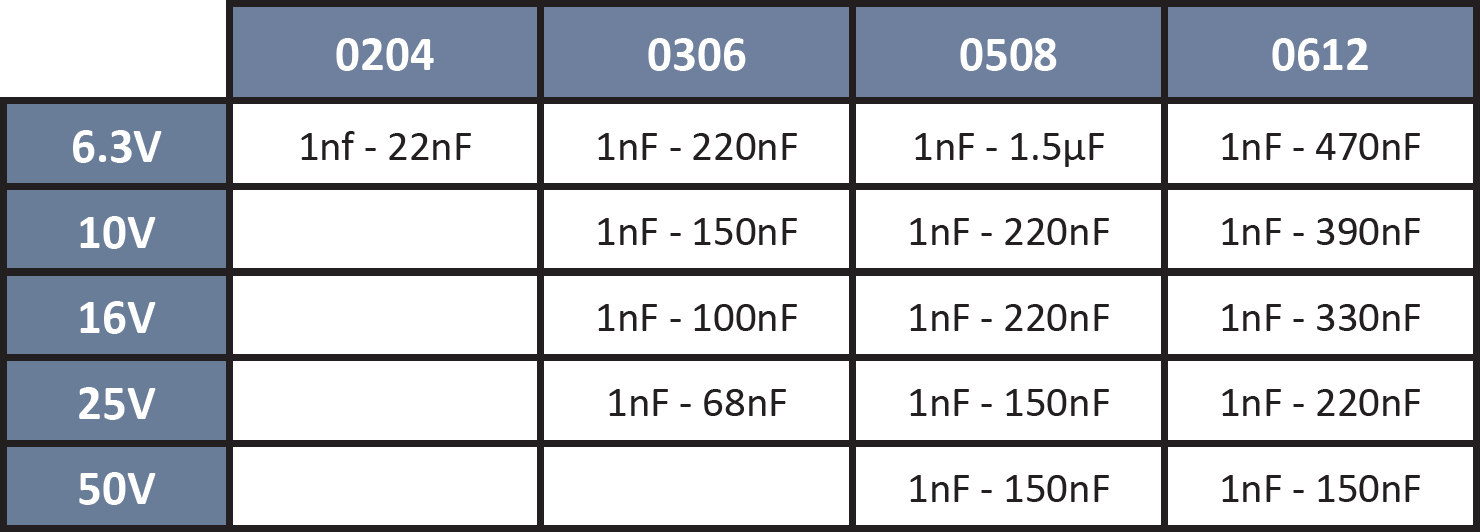

The below table gives the specifications overview for each capacitor model available within the Low Inductance series:

SRT Microcéramique Low Capacitance Capacitor series
Specifications
Additional Features
  • Low inductance capacitors for high energy transfer
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 2.5% at 1KHz
  • Insulation resistance of 20°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less
Dielectric X7R
Operating Temperature -55°C to +125°C
Package/Size
  • 0204
  • 0306
  • 0508
  • 0612
TCR ± 15% with 0Vdc applied
Termination
  • Palladium-Silver
  • Silver with Gold plated finish
  • Nickel with Tin plated finish
  • Microflex (Polymer with Tin plated finish)
  • Copper with Tin plated finish
Tolerance
  • ±10%
  • ±20%
Voltage Reference
  • 6.3V
  • 10V
  • 16V
  • 25V
  • 50V

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microcéramique low inductance capacitor series datasheet
PDF Document SRT Microcéramique's Microflex - Innovative flexible termination option for chip capacitors

Below is an example of the part number breakdown for the SRT Microcéramique's Low Inductance Capacitor series :

SRT Microcéramique Low Inductance Capacitors

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

  • Views: 91
  • Product Code: SRT Microcéramique Low Inductance Capacitor Series
  • SKU: SRT Microcéramique Low Inductance Capacitor Series
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.
