SRT Microcéramique Non Magnetic X7R Capacitor Series

SRT Microcéramique Non Magnetic X7R Capacitor Series
  • Non-magnetic ceramic chip MLCC capacitors
  • Available in capacitance ratings between 100pF and 8.2µF
  • Available in standard chip sizes from 0402 to 5550
  • Dissipation factor of 2.5% maximum at 1Vrms and 1kHz (16V < Un < 25V) or maximum 1% at 1Vrms and 1kHz (25V < Un < 50V)
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of Voltage ratings: 16V, 25V, 50V, 100V, 500V, 1kV, 3kV or 6kV
  • Selection of tolerances: ±5%, ±10% and ±20%
  • Operating temperature between -55°C and +125°C

The Non-magnetic X7R (Type 2) ceramic chip MLCC capacitor series from SRT Microcéramique offers a wide range of options to suit any demand, including capacitance between 100pF to 8.2µF across a range of chip sizes from 0402 to 5550, a selection of ±5%, ±10% or ±20% tolerance, voltage options (16V, 25V, 50V, 100V, 500V, 1kV, 3kV or 6kV) and a selection of termination options. As with all SRT-MC components, the non-magnetic X7R capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

Termination options available include:

  • Palladium-Silver
  • Gold-plated Silver
  • Tin-plated Copper

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please Contact us to discuss the custom solutions available.

Typical applications for the SRT-MC Non-magnetic X7R series of ceramic capacitors include:

  • Magnetic resonance imaging
  • Medical test equipment
  • Laboratory analysis systems

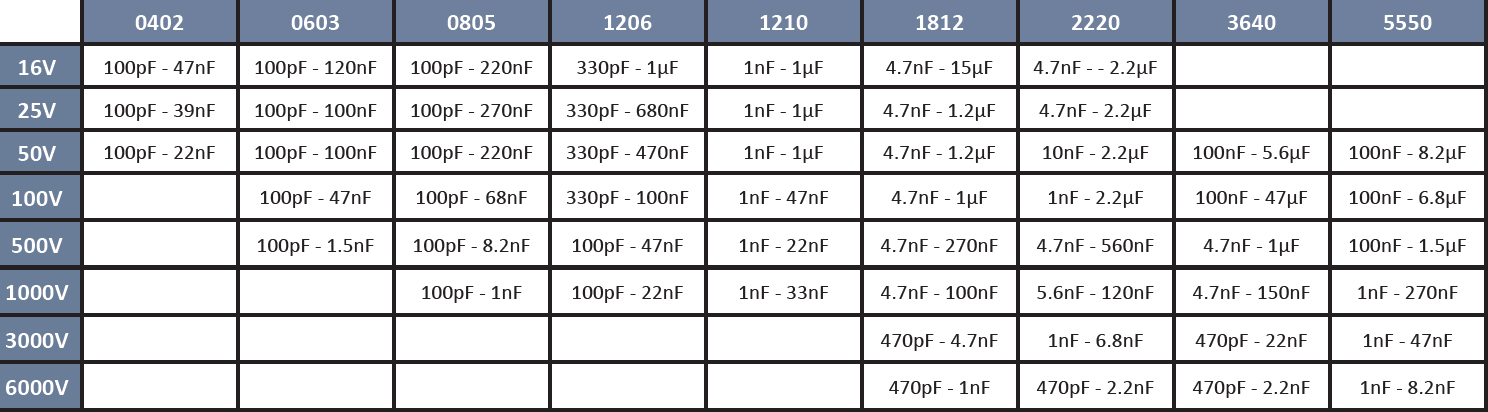

The below table gives the specifications overview for each capacitor model available within the Non-magnetic X7R series:

SRT Microcéramique Non Magnetic X7R Capacitor series
Specifications
Additional Features
  • Non magnetic X7R (Type 2) MLCC Capacitors
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor maximum of 2.5% at 1Vrms and 1kHz for Un between 16V and 25V and maximum 1% at 1Vrms and 1kHz for Un between 25V and 50V
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
Dielectric X7R
Operating Temperature -55°C to +125°C
Package/Size
  • 0402
  • 0603
  • 0805
  • 1206
  • 1210
  • 1812
  • 2220
  • 3640
  • 5550
TCR ± 15% with 0Vdc applied
Termination
  • Palladium-Silver
  • Silver with Gold plated finish
  • Copper with Tin plated finish
Tolerance
  • ±5%
  • ±10%
  • ±20%
Voltage Reference
  • 16V
  • 25V
  • 50V
  • 100V
  • 500V
  • 1kV
  • 3kV
  • 6kV

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microceramique Non Magnetic X7R Capacitor series datasheet
PDF Document SRT Microcéramique's Microflex - Innovative flexible termination option for chip capacitors

Below is an example of the part number breakdown for the SRT Microcéramique Non Magnetic X7R Capacitor Series :

SRT Microcéramique Non Magnetic X7R Capacitor Series

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

  • Views: 49
  • Product Code: SRT Microcéramique Non Magnetic X7R Capacitor Series
  • SKU: SRT Microcéramique Non Magnetic X7R Capacitor Series
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.
