SRT Microcéramique Radial Moulded Capacitor Series (500V - 2kV)

New SRT Microcéramique Radial Moulded Capacitor Series (500V - 2kV)
  • High voltage moulded radial MLCC capacitors, 500V - 2kV
  • Two package sizes available – SRMC50 or SRM60
  • Available in capacitance ratings between 150pF and 270nF
  • Dissipation factor under 0.025 at 1Vrms and 1KHz
  • Capacitance-Temperature characteristics of ±15% without voltage
  • Selection of tolerances: ±10% or ±20%
  • Operating temperature between -55°C and +125°C

The X7R (Type 2) high voltage moulded radial MLCC capacitor series is designed especially for severe environment, high voltage military applications, offering excellent shock and vibration resistance. The series features capacitance values between 150pF and 270nF across two package sizes (SR50 or SR60), option of high voltage ratings 500V, 1kV or 2kV, and tolerances ±10% or ±20. The operating temperature of these capacitors is between -55°C and +125°C

While this capacitor series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options is suitable for your application, please Contact us to discuss the custom solutions available.

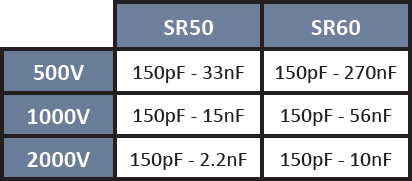

The below table gives the specifications overview for high voltage 500V - 2kV capacitor models available within the moulded radial capacitor series:

SRT Microcéramique Radial Moulded Capacitor series (500V - 2kV)
Specifications
Additional Features
  • Radial moulded capacitor series for military applications
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025 at 1Vrms and 1kHz
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Climatic Category 55/125/56
Capacitance 150pF - 270nF
Dielectric X7R
Operating Temperature -55°C to +125°C
Package/Size
  • SR50
  • SR60
TCR ± 15% with 0Vdc applied
Tolerance
  • ±10%
  • ±20%
Type Radial
Voltage Reference
  • 500V
  • 1kV
  • 2kV

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microcéramique Radial Moulded Capacitor (500V - 2kV) Series Datasheet

Below is an example of the part number breakdown for the SRT Microcéramique Radial Moulded Capacitor (500V - 2kV) Series:

SRT Microcéramique Radial Moulded Capacitor (500V - 2kV) Series

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
