SRT Microcéramique Radial Dipped NP0 Capacitor Series (200V - 500V)

New SRT Microcéramique Radial Dipped NP0 Capacitor Series (200V - 500V)
  • Dipped radial MLCC capacitors, 200-500V
  • Five sizes available – SRMC32, SRMC41, SRMC43 and SRMC44
  • Available in capacitance ratings between 1pF and 12nF
  • Dissipation factor under 0.025
  • Temperature Coefficient of ±15% with 0Vdc applied
  • Selection of tolerances: ±0.25pF, ±0.5pF, ±1%, ±2%, ±5% or ±10%
  • Operating temperature between -55°C and +125°C

The NP0 (Type 1) dipped radial condenser MLCC capacitor series is designed especially for severe environment applications, offering excellent shock and vibration resistance. The series features capacitance values between 1pF and 12nF across four package sizes (SRMC32, SRMC41, SRMC43 and SRMC44), option of voltage rating 200V or 500V, and tolerances ±0.25pF, ±0.5pF, ±1%, ±2%, ±5% or ±10%. The operating temperature of NP0 radial capacitors is between -55°C and +125°C.

While this product series offers a number of options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please Contact us to discuss the custom solutions available.

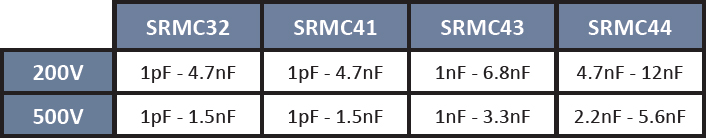

The below table gives the specifications overview for 200-500V capacitor models available within the NP0 radial capacitor series:

SRT Microcéramique High Frequency Capacitor series
Specifications
Additional Features
  • Radial dipped NP0 capacitor series
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor up to 0.025
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
Capacitance 1pF - 12nF
Dielectric NP0
Operating Temperature -55°C to +125°C
Package/Size
  • SRMC32
  • SRMC41
  • SRMC43
  • SRMC44
TCR ± 15% with 0Vdc applied
Tolerance
  • ±0.25pF
  • ±0.5pF
  • ±1%
  • ±2%
  • ±5%
  • ±10%
Type Radial
Voltage Reference
  • 200V
  • 500V

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microcéramique Radial Dipped NP0 Capacitor (200V - 500V) Series Datasheet

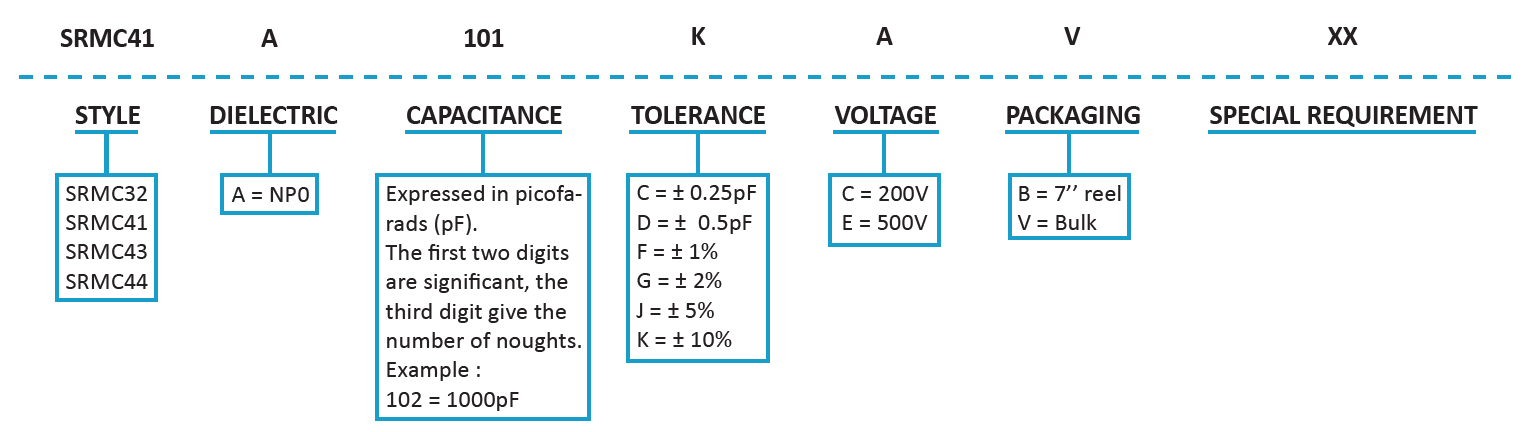

Below is an example of the part number breakdown for the SRT Microcéramique Radial Dipped NP0 Capacitor (200V - 500V) Series:

SRT Microcéramique Radial Dipped NP0 Capacitor (200V - 500V) Series

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

  • Views: 82
  • Product Code: SRT Microcéramique Radial Dipped NP0 Capacitors (200V - 500V)
  • SKU: SRT Microcéramique Radial Dipped NP0 Capacitors (200V - 500V)
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.

Tags: srt microceramique, np0, srmc32, srmc41, srmc43, srmc44
