SRT Microcéramique RF Power High Frequency Capacitor Series

SRT Microcéramique RF Power High Frequency Capacitor Series
  • RF Power, High frequency ceramic chip MLCC capacitors
  • Available in capacitance ratings between 1pF and 4.7nF
  • Available in standard chip sizes from 0505 to 4040
  • Dissipation factor under 5.10-4 at 1Vrms and 1MHz  (≤ 1000pF) or 1KHz (> 1000pF)
  • Temperature coefficient of ±30ppm
  • Selection of Voltage ratings: 200V, 250V, 300V, 500V, 630V, 1kV, 1.5kV, 2kV, 3kV, 4kV, 5kV and 7.2kV
  • Selection of tolerances: (±0.05pF, ±0.1pF, 0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%
  • Operating temperature between -55°C and +125°C

The RF power, high frequency ceramic chip MLCC capacitor series from SRT Microcéramique offers a wide range of options to suit any demand, including capacitance between 1pF to 4.7nF across a range of chip sizes from 0505 to 4040, selection of tolerances (±0.05pF, ±0.1pF, ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%, ±10%), voltage options between 200V and 7.2kV and a range of terminations. As with all SRT-MC components, the SRT-MC RF, power high frequency capacitors are popular in safety-critical industries thanks to their excellent quality and reliability. Their operating temperature is between -55°C and +125°C.

Termination options available include:

  • Nickel with 100% tin plating (matte finish)
  • Copper with 100% tin plating (matte finish)
  • Nickel banner with Tin (64%) and LCad (36%)

While this capacitor series offers a large number of standard options, customisation is possible on all SRT Microcéramique components – if none of the options are suitable for your application, please Contact us to discuss the custom solutions available.

Typical applications for the SRT-MC RF Power, high frequency series of ceramic capacitors include:

  • Lasers
  • CATV
  • RF Power amplifiers
  • Mixers
  • RF Instruments

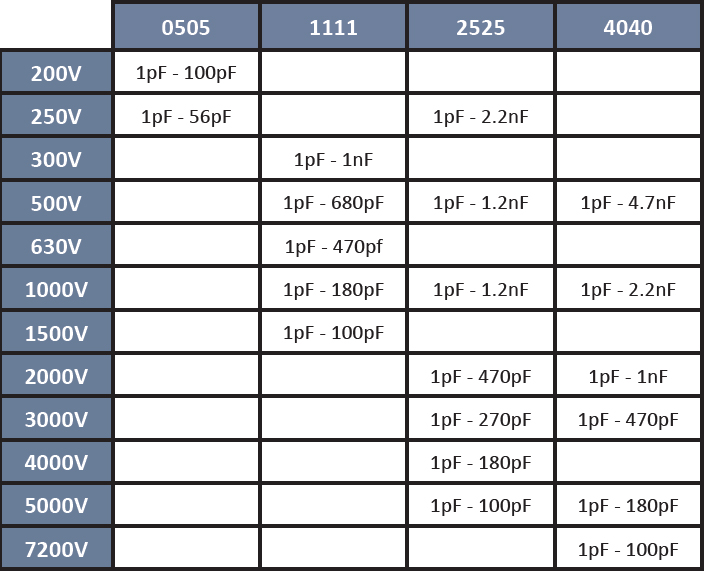

The below table gives the specifications overview for each capacitor model available within the RF Power High Frequency series:

SRT Microcéramique High Frequency Capacitor series
Specifications
Additional Features
  • MLCC RF power, high frequency capacitors for RF instruments, lasers and similar applications
  • Highest quality and reliability, suitable for safety-critical industries
  • Dissipation factor under 5.10-4 at 1Vrms and 1MHz for values ≤ 1000pF and under 5.10-4 at 1Vrms and 1KHz for values > 1000pF
  • Insulation resistance of 25°C/Un 105 MΩ or 1000 Ohm-Farad whichever is less and 125°C/Un 104 MΩ or 100 Ohm-Farad whichever is less
  • Dielectric strength test performed per method 103 of EIA 198-2-E
Dielectric High Q
Operating Temperature -55°C to +125°C
Package/Size
  • 0505
  • 1111
  • 2525
  • 4040
TCR ±30ppm
Termination
  • Nickel with 100% Tin plated matte finish
  • Copper with 100% Tin plated matte finish
  • Nickel banner with Tin (64%) Lcad (36%)
Tolerance
  • ±0.05pF
  • ±0.1pF
  • ±0.25pF
  • ±0.5pF
  • ±1%
  • ±2%
  • ±5%
  • ±10%
Voltage Reference
  • 200V
  • 250V
  • 300V
  • 500V
  • 630V
  • 1kV
  • 1.5kV
  • 2kV
  • 3kV
  • 4kV
  • 5kV
  • 7.2kV

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document SRT Microceramique RF Power High Frequency Capacitor series datasheet

Below is an example of the part number breakdown for the SRT Microcéramique RF Power High Frequency Capacitor Series:

SRT Microcéramique RF Power High Frequency Capacitor Series

This product is available fully compliant to the RoHS EU directive 2011/65/EU, however, Non-RoHS compliant options are available.

  • Views: 69
  • Product Code: SRT Microcéramique RF Power High Frequency Capacitor Series
  • SKU: SRT Microcéramique RF Power High Frequency Capacitor Series
  • Availability: In Stock
0 Product(s) Sold
  • £0.00
  • Ex Tax: £0.00

Available Options

Please refer to the table at the bottom of Description tab and/or the Datasheet available from Technical Library to see available capacitance values for each chip size and voltage combination.
