Susumu KRL6432 Series

Susumu KRL6432 Series

The KRL6432 series of long sided terminal metal foil low resistance chip resistors from Susumu have been developed to withstand high operating temperatures and applications that require the use of low EMF components. The C type utilises materials that can be operated up to +175°C, where as the M type utilises low EMF materials that are stable up to +155°C. Susumu's metal foil technology enables a very stable TCR at low resistance and the face down mounting allows for accurate high current measurement.

  • Surface-mount long sided terminal metal foil low resistance chip resistor
  • Resistance values range from 0.001Ω to 0.5Ω
  • Resistance value series E-6
  • Power rating of 3W
  • Tolerance values available are ±1% (F), ±2% (G) and ±5% (J) (depending on the resistance value required)
  • TCR values available are ±50 ppm°C (Q), ±100 ppm/°C (R) and ±150 ppm°C (depending on the resistance value required)
  • Chip size 2512
  • Choices of operating temperature range are −55°C to +175°C (C) or −55°C to +155°C (M) for the low EMF version
  • Choices of electrode type are bottom electrode (B) or U-shaped electrode (E)
  • Certified AEC-Q200 compliant

The Susumu KRL6432 series of long sided terminal metal foil low resistance chip resistors are ideal for the the following applications:

  • Automotive electronics
  • Power source devices
  • ACDC converters
  • DCDC converters
  • Motors
  • Inverters
  • Office automation equipment

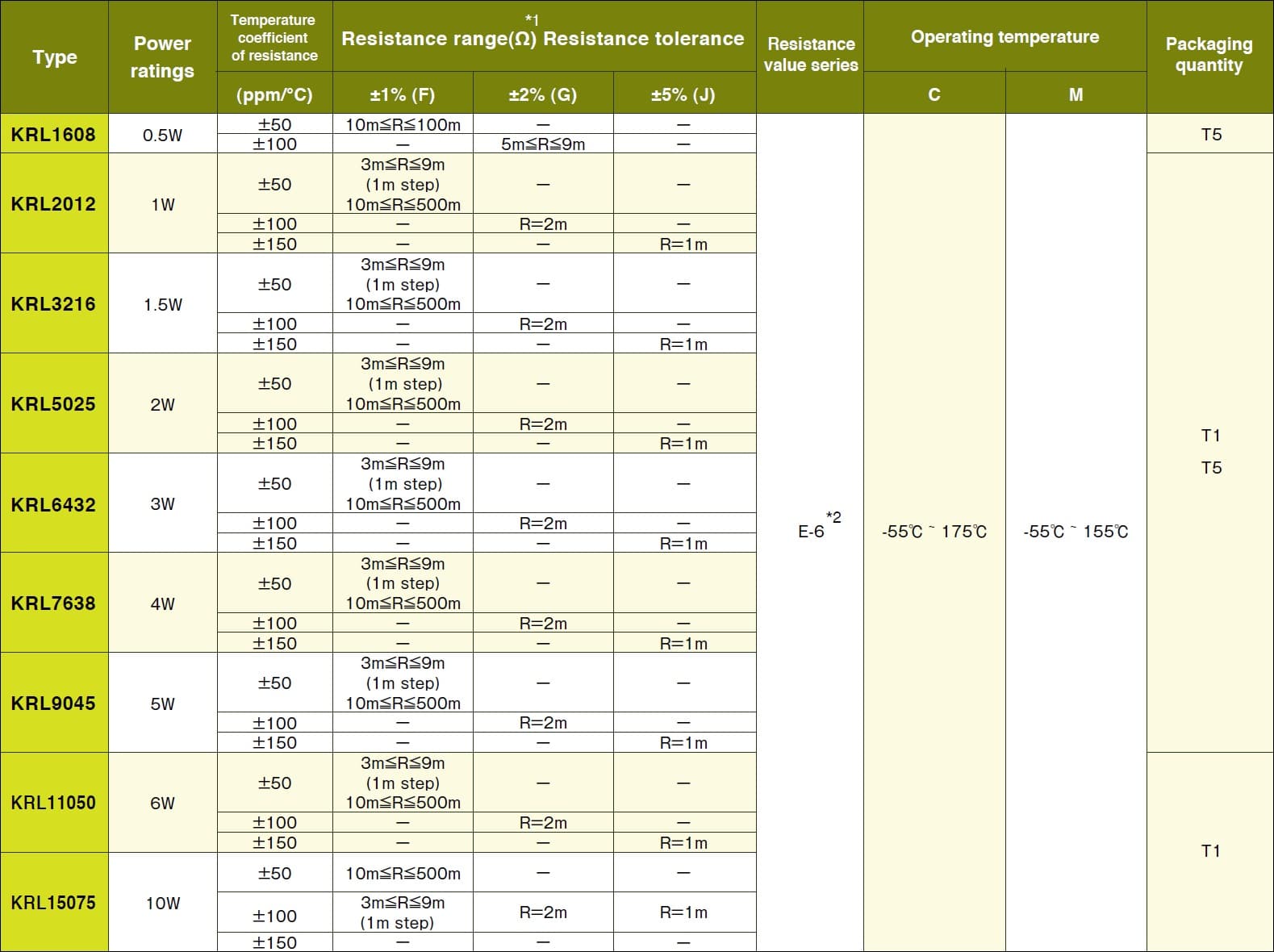

The below table gives the full specifications of the Susumu KRL series including the KRL6432:

Susumu KRL6432 Specifications

*1 We can meet your requirement of less than 0.0001Ω, please contact us for further details
*2 We can meet your requirement of resistance value outside of E-6 series, please contact us for further details

Specifications
Additional Features
  • Surface-mount long sided terminal metal foil low resistance chip resistor
  • Choice of operating temperature ranges of either −55°C to +175°C (C) or −55°C to +155°C (M) for the low EMF version
  • Certified AEC-Q200 compliant
  • Option of electrode types: bottom electrode (B) or U-shaped electrode (E)
Maximum Power Rating 3W
Maximum Resistance 0.5Ω
Minimum Resistance 0.001Ω
Package/Size 2512
TCR 0.001Ω:
  • ±150 ppm/°C
0.002Ω:
  • ±100 ppm/°C (R)
0.003Ω to 0.5Ω:
  • ±50 ppm/°C (Q)
Tolerance 0.001Ω:
  • ±5% (J)
0.002Ω:
  • ±2% (G)
0.003Ω to 0.5Ω:
  • ±1% (F)
