Susumu NRG3216 Series

Susumu NRG3216 Series

The NRG3216 series of non-magnetic metal thin film chip precision resistors from Susumu utilises non-magnetic materials making them ideal for medical electronics and equipment exposed to magnetic fields. The thin film structure enables low noise and anti-sulfur as well as the resistors having long term stability with inorganic passivation. The NRG3216 series has a resistance range between 10Ω and 1MΩ with a voltage rating of 200V and a chip size of 1206.

  • Surface-mount non-magnetic metal thin film chip precision resistor
  • Resistance range between 10Ω and 1MΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.25W
  • Tolerance values available ±0.05% (W) ±0.1% (B) and ±0.5% (D)
  • TCR values available ±5 ppm/°C (V), ±10 ppm/°C (N), ±25 ppm/°C (P) and ±50 ppm°C (Q)
  • Maximum voltage of 200V
  • Operating temperature range of −55°C to +155°C
  • Thin film structure enabling low noise and anti-sulfur
  • Long term stability with inorganic passivation
  • Chip size of 1206
  • Resistors using non-magnetic materials

Susumu NRG3216 non-magnetic metal thin film chip resistors are ideal for the following applications:

  • Industrial measurement instrumentation
  • Medical electronics
  • Equipment/devices under magnetic field

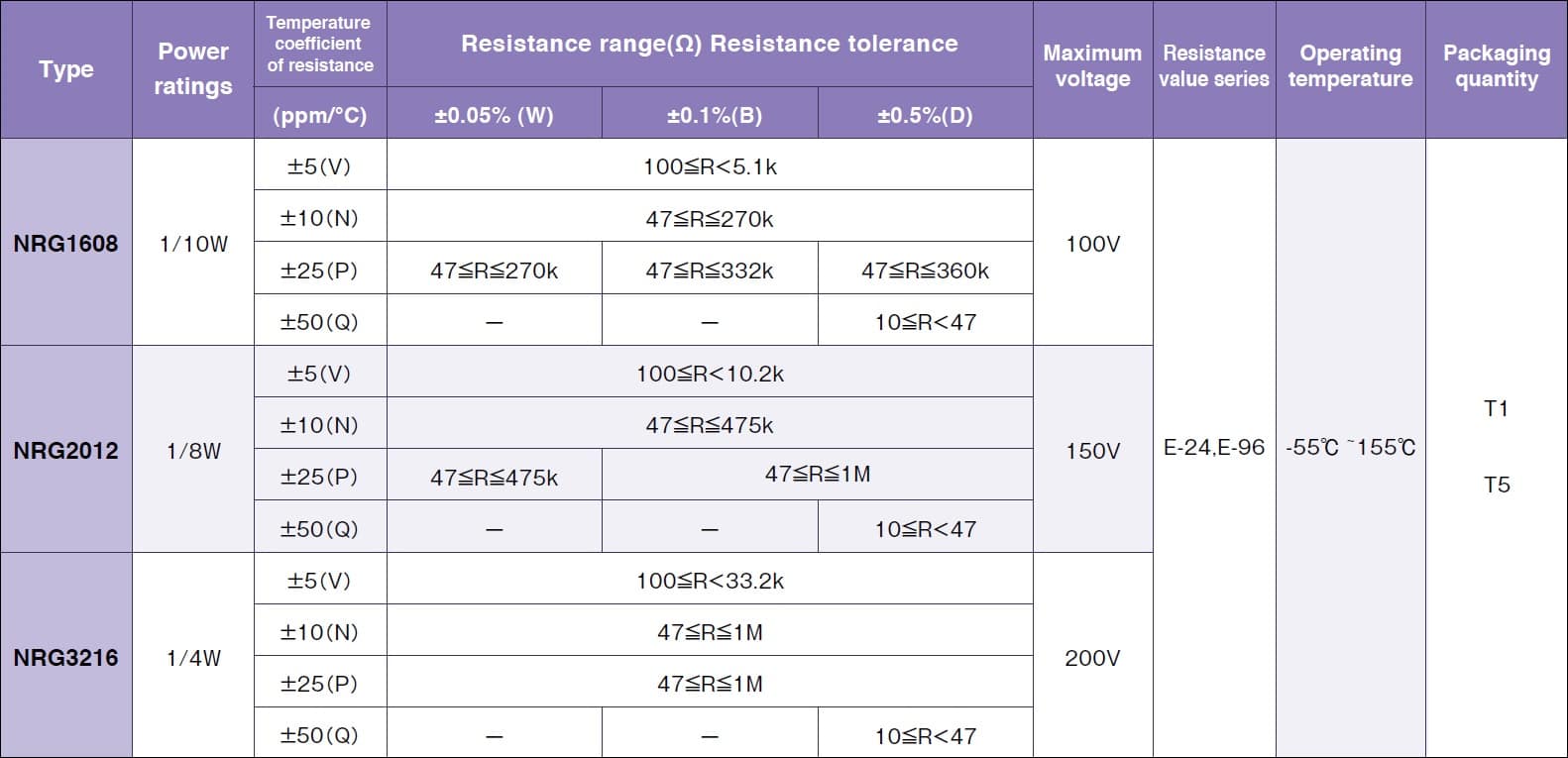

The below table gives the full specifications of the Susumu NRG series including the NRG3216:

Susumu NRG3216 Specifications

Please see the Susumu selection guide in the Technical Libary tab for the E-24 and E-96 values

Specifications
Additional Features
  • Surface-mount non-magnetic metal thin film chip precision resistor
  • Operating temperature range of −55°C to +155°C
  • Maximum voltage of 200V
  • Thin film structure enabling low noise and anti-sulfur
Maximum Power Rating 0.25W
Maximum Resistance 1MΩ
Minimum Resistance 10Ω
Package/Size 1206
TCR
  • ±5 ppm/°C (V)
  • ±10 ppm/°C (N)
  • ±25 ppm/°C (P)
  • ±50 ppm/°C (Q)
Tolerance
  • ±0.05% (W)
  • ±0.1% (B)
  • ±0.5% (D)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Susumu NRG non-magnetic thin film chip resistor series datasheet
PDF Document Susumu product selection guide and handling care information
PDF Document Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
