Susumu PRL3264 Series

Susumu PRL3264 Series

The PRL3264 series of long sided terminals thin film low resistance chip resistors from Susumu offer an innovative structure that takes heat dissipation into consideration. This structure suppresses the surface temperature, enabling small chip sizes as well as a reduction of the influence on surrounding components, excellent temperature cycle resistance, low ESL and low noise. The Susumu PRL3264 series has a resistance range of 0.003Ω to 0.1Ω and tolerance values available of ±0.5% (D) ±1% (F), ±2% (G) and ±5% (J).

  • Long sided terminal thin film low resistance chip resistor
  • Resistance values range from 0.003Ω to 0.1Ω
  • Resistance value series E-24
  • Power rating of 2W
  • Tolerance values available are ±0.5% (D), ±1% (F) ±2% (G) and ±5% (J) (depending on the resistance value required)
  • TCR values available are ±50 ppm°C, ±100 ppm/°C, 0∼+200 ppm°C and 0∼+350 ppm°C (depending on the resistance value required)
  • Chip size 2512
  • Operating temperature range of −55°C to +125°C

The Susumu PRL3264 series of long sided terminal thin film low resistance chip resistors are ideal for the following applications:

  • Automotive electronics
  • Industrial machines
  • PC power sources
  • Adapters
  • Inverters

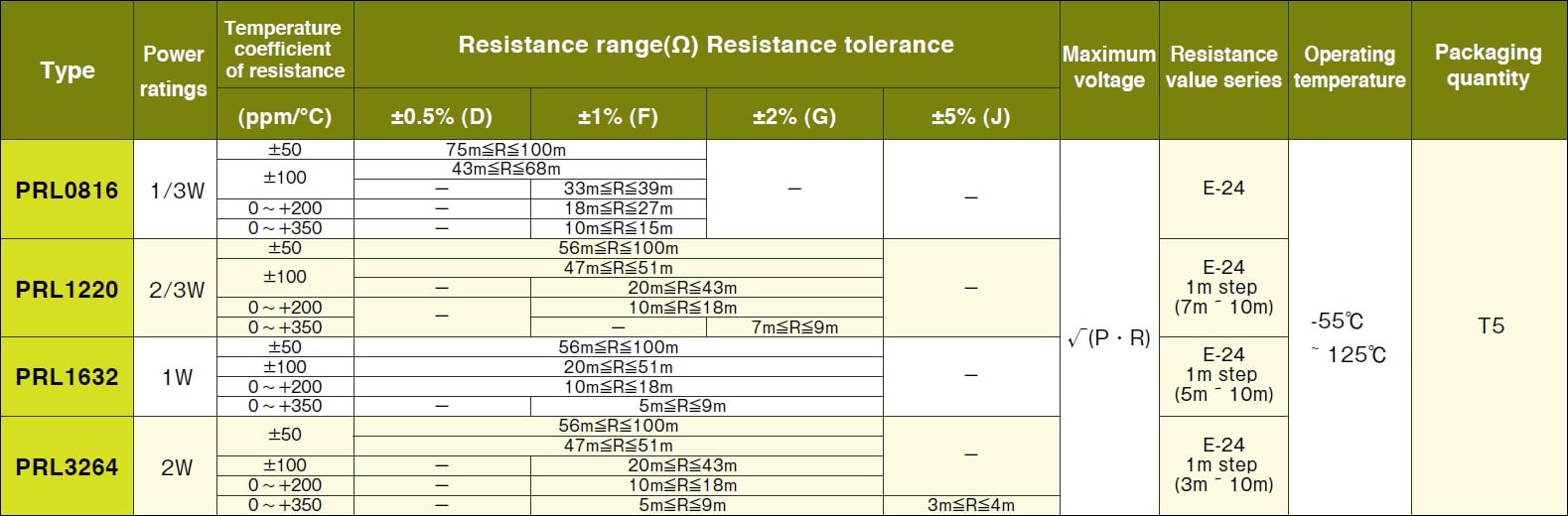

The below table gives the full specifications of the Susumu PRL Series including the PRL3264:

Susumu PRL3264 Specifications
Specifications
Additional Features
  • Surface mount long sided terminal metal foil low resistance chip resistor
  • Operating temperature range of −55°C to +125°C
  • Excellent temperature cycle resistance
  • Low noise and low ESL
Maximum Power Rating 2W
Maximum Resistance 0.1Ω
Minimum Resistance 0.003Ω
Package/Size 2512
TCR 0.003Ω to 0.009Ω:
  • 0∼+350 ppm/°C
0.01Ω to 0.018Ω:
  • 0∼+200 ppm/°C
0.02Ω to 0.051Ω:
  • ±100 ppm/°C
0.056Ω to 0.1Ω:
  • ±50 ppm/°C
Tolerance Depending on the resistance value required:
  • ±0.5% (D)
  • ±1% (F)
  • ±2% (G)
  • ±5% (J)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Susumu PRL long sided terminals precision low resistance chip resistor series datasheet
PDF Document Susumu product selection guide and handling care information
PDF Document Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
