ICS-NH

  • ICS-NH

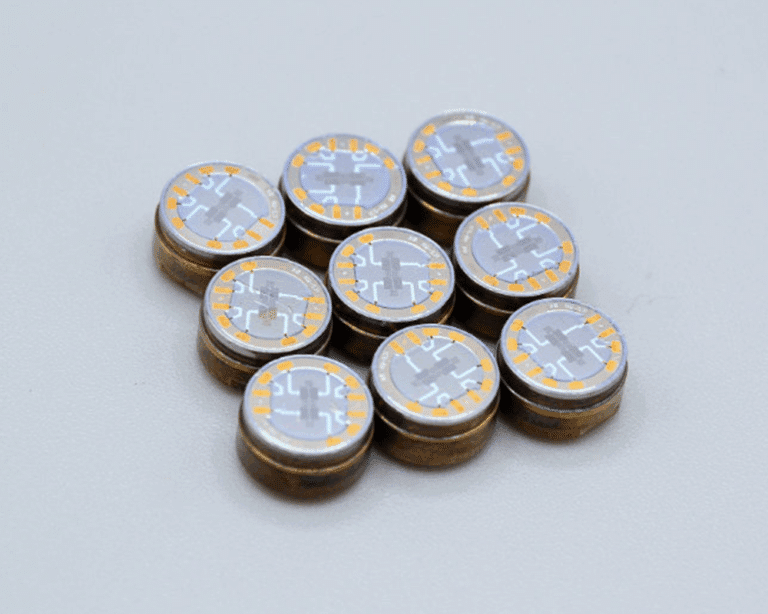

ICS-NH C10 Type

High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.
  • ICS-NH

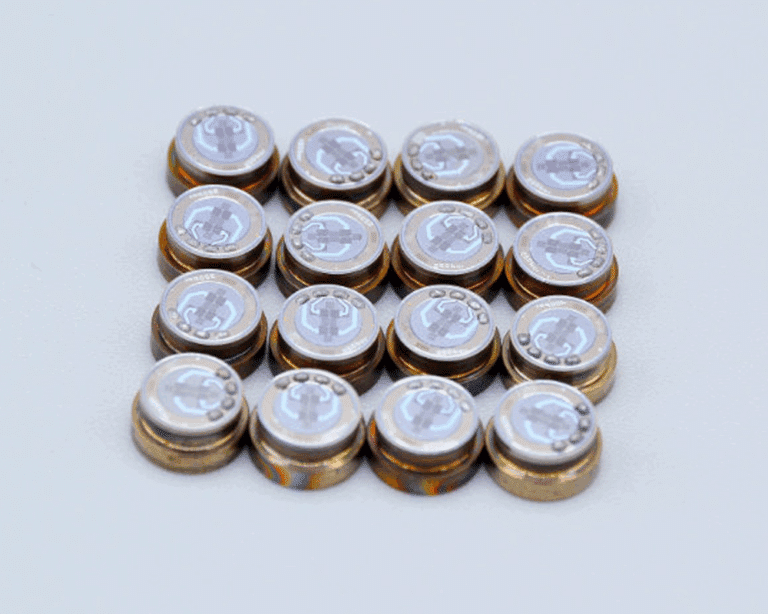

ICS-NH C8 Type

High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65ยฐC to +260ยฐC.
  • ICS-NH

ICS-NH DPH100 Series

SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output, 316L stainless steel media contact and -65ยฐC to +170ยฐC operation.
  • ICS-NH

ICS-NH MPT6 Series

Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC supply. Offers voltage, current, bridge, IยฒC and SPI outputs with DO-160 Cat. H/R vibration testing
  • ICS-NH

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from 2 bar to 2,000 bar
  • Operating temperature from โˆ’200 ยฐC to +260 ยฐC
  • Multiple output options including voltage, current and digital
  • Fully welded stainless steel construction
  • Vibration tested to DO-160 Cat. H and R
  • ICS-NH

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from 0โ€“30 psig up to 0โ€“8,700 psig
  • Ratiometric pressure output 0.5โ€“4.5 V @ 5 V supply
  • Integrated PT1000 2-wire temperature output
  • Operating temperature range โˆ’40 ยฐC to +150 ยฐC (approx.)
  • Stainless steel housing with multiple connection options

ICS-NH C10 Type

High Precision Pressure Sensor C10 Type
High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel…Read More

ICS-NH C8 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V…Read More

ICS-NH DPH100 Series

Differential pressure sensor
SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output,…Read More

ICS-NH MPT6 Series

Actively compensated miniature pressure transmitter
Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC…Read More

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

ICS-NH MPT6C Cryogenic Pressure Transmitter
  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from <strong…Read More

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

ICS-NH PTM-10 Pressure Temperature Transmitter
  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from…Read More
  • Exclusive Partner

About ICS-NH

Founded in 2008 and headquartered in Berlin, ICS-NH specialises in high-precision sensing technology, providing advanced pressure, flow and temperature sensors for demanding environments. With expertise in thin-film sensor technology and certified to EN9100 aerospace standards, ICS-NH develops solutions that deliver exceptional accuracy, reliability and long-term stability in critical applications such as aerospace, industrial systems and energy sectors.

In addition to a comprehensive portfolio of standard sensors, ICS-NH also offers fully customised solutions and complete assemblies, working closely with engineers to adapt sensor designs to meet specific performance, environmental or integration requirements. Their flexible manufacturing capabilities allow them to support projects from concept through to series production, ensuring high-quality results even in challenging operating conditions.

Through our partnership with ICS-NH, Rhopoint Components can now support customers with both off-the-shelf sensing products and bespoke engineered solutions tailored to exact project needs.

For their official website, visit https://www.ics-nh.de/en/
