Electronic Components

SRT Microcéramique Radial Capacitor Dipped High Voltage

High voltage radial dipped capacitors
Capacitance from 0.4pF to 47µF
TCR options from ±30ppm/°C (NP0) to ±15% (X7R)
Voltages from 1kV to 15kV
IR 25°C/Un ≥10⁵MΩ or 1000Ω-Farad whichever is less *
Dielectrics: NP0, N2T, BX, 2C1, X7R
Operating temperatures from -55°C to +125°C

ISOCOM CDMR1006

Dual-channel solid state relay for high-reliability applications
Hermetically sealed 8-lead surface mount package
6A continuous current with buffered input stage
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR1010

Dual-channel solid state relay with 10A continuous current
Hermetically sealed 8-lead surface mount package
Buffered input stage for enhanced reliability
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR1020

Dual-channel solid state relay with 20A continuous current
Hermetically sealed 8-lead surface mount package
Buffered input stage for enhanced reliability
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR2010

Dual-channel solid state relay with 10A continuous current
Hermetically sealed 8-lead surface mount package
Buffered input stage for enhanced performance
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR310

Single-channel solid state switch for high reliability
Hermetically sealed 8-pin DIP package
Continuous output current of 0.8A
Withstands up to 1,500V DC isolation
Operates over full military temperature range -55°C to +125°C

ISOCOM CH101

Single-channel, radiation-hardened optocoupler for space applications
Surface mount 4-pin package
High current transfer ratio
Withstands up to 1,000V DC isolation
Ionizing dose tested to 150 Krad(Si)

ISOCOM CQMR310

Quad-channel solid state relay with independent switches
Hermetically sealed 32-pin flatpack package
Continuous output current of 0.8A, surge up to 3A
Withstands up to 1,500V DC isolation
High transient immunity, optically coupled

ISOCOM CS201

Single-channel optocoupler for space applications
Hermetically sealed 6-pin DIP package
High current transfer ratio
Withstands 1,500V DC isolation
Ionising dose tested to 150 Krad(Si) and
Tested displacement damage to 1 MEV x 10¹³

ISOCOM CS600

Single-channel, high-speed optocoupler for space and isolation applications
Hermetically sealed 8-pin DIP package
High common mode rejection (1,000V/μs)
Withstands 1,500V DC and 2,500V DC isolation
Radiation tested to 1 Mrad(Si) and 1 MEV x 10¹³

ISOCOM CSM100

Single-channel high-gain optocoupler for space applications
Hermetically sealed 4-pin surface mount package
Current transfer ratio up to 1,500%
Low input current requirement of 0.5mA
Withstands up to 1,000V DC isolation

ISOCOM CSM1200

Single-channel optocoupler for space applications
Hermetically sealed LCC-6 package
High current transfer ratio
Low input requirements
Withstands up to 1,000V DC isolation

ISOCOM CSM1224

Single channel optocoupler for high-reliability applications
Hermetically sealed 6-pin package
High current transfer ratio
Withstands up to 1,000V DC isolation
Radiation tested to 150 Krad(Si)

ISOCOM CSM160

Dual-channel or Quad-channel, high-gain optocoupler
Hermetically sealed 16-pin flatpack package
Current transfer ratio typically 1,000%
Low input requirement of 0.5mA
Withstands 1,500V DC
Radiation-tolerant

ISOCOM CSM166

Dual-channel or Quad-channel, high-reliability optocoupler for space
Hermetically sealed 16-pin flatpack package
High current transfer ratio
Radiation tolerance of 150 Krad(Si)
Withstands up to 1,500V DC isolation

ISOCOM CSMR140

Single-channel solid state relay for space applications
Hermetically sealed LCC-4 surface mount package
Continuous output current from 0.8A to 3A
Withstands up to 1,000V DC isolation
High transient immunity and optically coupled input/output

SRT Microcéramique Radial Capacitor Dipped High Voltage

High voltage radial dipped capacitors
Capacitance from 0.4pF to 47µF
TCR options from ±30ppm/°C (NP0) to ±15% (X7R)
Voltages from 1kV to 15kV
IR 25°C/Un ≥10⁵MΩ or 1000Ω-Farad whichever is less *
Dielectrics: NP0, N2T, BX, 2C1, X7R
Operating temperatures from -55°C to +125°C

ISOCOM CDMR1006

Dual-channel solid state relay for high-reliability applications
Hermetically sealed 8-lead surface mount package
6A continuous current with buffered input stage
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR1010

Dual-channel solid state relay with 10A continuous current
Hermetically sealed 8-lead surface mount package
Buffered input stage for enhanced reliability
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR1020

Dual-channel solid state relay with 20A continuous current
Hermetically sealed 8-lead surface mount package
Buffered input stage for enhanced reliability
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR2010

Dual-channel solid state relay with 10A continuous current
Hermetically sealed 8-lead surface mount package
Buffered input stage for enhanced performance
High isolation up to 1,000V DC
Optically coupled with independent SPST relays

ISOCOM CDMR310

Single-channel solid state switch for high reliability
Hermetically sealed 8-pin DIP package
Continuous output current of 0.8A
Withstands up to 1,500V DC isolation
Operates over full military temperature range -55°C to +125°C

ISOCOM CH101

Single-channel, radiation-hardened optocoupler for space applications
Surface mount 4-pin package
High current transfer ratio
Withstands up to 1,000V DC isolation
Ionizing dose tested to 150 Krad(Si)

ISOCOM CQMR310

Quad-channel solid state relay with independent switches
Hermetically sealed 32-pin flatpack package
Continuous output current of 0.8A, surge up to 3A
Withstands up to 1,500V DC isolation
High transient immunity, optically coupled

ISOCOM CS201

Single-channel optocoupler for space applications
Hermetically sealed 6-pin DIP package
High current transfer ratio
Withstands 1,500V DC isolation
Ionising dose tested to 150 Krad(Si) and
Tested displacement damage to 1 MEV x 10¹³

ISOCOM CS600

Single-channel, high-speed optocoupler for space and isolation applications
Hermetically sealed 8-pin DIP package
High common mode rejection (1,000V/μs)
Withstands 1,500V DC and 2,500V DC isolation
Radiation tested to 1 Mrad(Si) and 1 MEV x 10¹³

ISOCOM CSM100

Single-channel high-gain optocoupler for space applications
Hermetically sealed 4-pin surface mount package
Current transfer ratio up to 1,500%
Low input current requirement of 0.5mA
Withstands up to 1,000V DC isolation

ISOCOM CSM1200

Single-channel optocoupler for space applications
Hermetically sealed LCC-6 package
High current transfer ratio
Low input requirements
Withstands up to 1,000V DC isolation

ISOCOM CSM1224

Single channel optocoupler for high-reliability applications
Hermetically sealed 6-pin package
High current transfer ratio
Withstands up to 1,000V DC isolation
Radiation tested to 150 Krad(Si)

ISOCOM CSM160

Dual-channel or Quad-channel, high-gain optocoupler
Hermetically sealed 16-pin flatpack package
Current transfer ratio typically 1,000%
Low input requirement of 0.5mA
Withstands 1,500V DC
Radiation-tolerant

ISOCOM CSM166

Dual-channel or Quad-channel, high-reliability optocoupler for space
Hermetically sealed 16-pin flatpack package
High current transfer ratio
Radiation tolerance of 150 Krad(Si)
Withstands up to 1,500V DC isolation

ISOCOM CSMR140

Single-channel solid state relay for space applications
Hermetically sealed LCC-4 surface mount package
Continuous output current from 0.8A to 3A
Withstands up to 1,000V DC isolation
High transient immunity and optically coupled input/output

Featured products

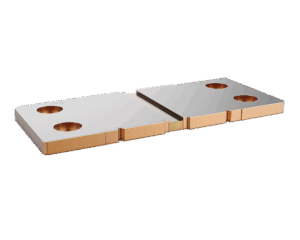

Isabellenhütte BAX Series Current Sensing Resistor

Isabellenhütte BAX Series

Low Resistance Busbar Shunt Resistor
Up to 40 W permanent power
Continuous current load up to 1,400 A
High pulse power rating
Available with nickel-tin-plating
Shunt with tinned terminals

SRT Microcéramique Stacked Capacitor High Voltage 10kV

High Voltage Stacked Capacitor
High Voltage Capability (1kV to 10kV)
Stacked MLCC Construction for High Capacitance
Available in NP0, N2T, and X7R dielectrics
Low ESR/ESL for High-Frequency Efficiency
100% tested at elevated temperatures (125°C) and voltages for 48 hours

SRT Microcéramique Stacked Capacitor High Voltage 8kV

High Voltage Stacked Capacitor
High Voltage Capability (1kV to 10kV)
Stacked MLCC Construction for High Capacitance
Available in NP0, N2T, and X7R dielectrics
Low ESR/ESL for High-Frequency Efficiency
100% tested at elevated temperatures (125°C) and voltages for 48 hours

SRT Microcéramique Stacked Capacitor High Voltage 5kV

High Voltage Stacked Capacitor
High Voltage Capability (1kV to 10kV)
Stacked MLCC Construction for High Capacitance
Available in NP0, N2T, and X7R dielectrics
Low ESR/ESL for High-Frequency Efficiency
100% tested at elevated temperatures (125°C) and voltages for 48 hours

Manufacturers

Looking for Electronic Components?

The below manufacturers are all of our authorised partners that produce Electronic Components or related products.

Coto Technology

Exxelia Ohmcraft

General Resistance

Rhopoint Instruments

SRT Microcéramique

SRT Resistor Technology

VPG Foil Resistors

Electronic Components

From our first product to our primary sellers, electronic components have been at the heart of our business since the beginning. We offer an extensive range of electronic components to suit a wide range of industries and applications, these include:

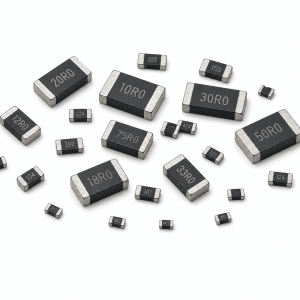

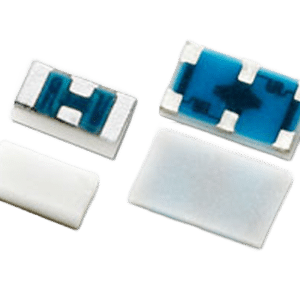

Attenuators
Capacitors
Digital Isolators
JFETs
Relays & Switches

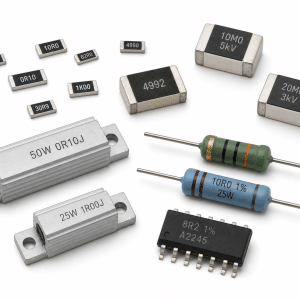

Resistors
Semiconductors

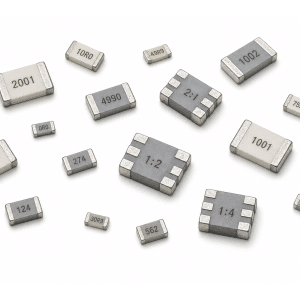

Terminators & Power Splitters

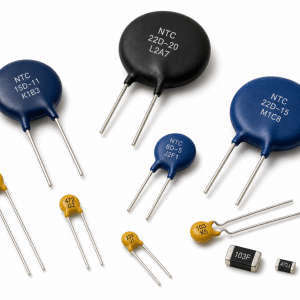

Thermistors

Whilst we try to cover as many of your needs as possible, sometimes specialist options are required to meet your exact specification. The majority of our manufacturing partners are able to customise their standard products to suit such requirements. Whether a custom capacitance or resistance value, TCR, VCR, tolerance, lead length, terminations, or package. If you are struggling to see the part you are looking for, or would like some advice on what to select, talk to one of our friendly advisors who will be happy to help. Get in touch now!
