Thermosensitive Resistors

Alpha CLA Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosensitive through-hole resistor
Resistance range from 5Ω to 100Ω
Tolerance from ±0.5% available
TCR of linear +4250 ±1% ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -65°C to +125°C

Thermosensitive through-hole resistor
Resistance range from 5Ω to 100Ω
Tolerance from ±0.5% available
TCR of linear +4250 ±1% ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -65°C to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

Alpha CLB Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosensitive through-hole resistor
Resistance range from 5Ω to 200Ω
Tolerance from ±0.5%
TCR linear +4250 ±1% ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -65°C to +125°C

Thermosensitive through-hole resistor
Resistance range from 5Ω to 200Ω
Tolerance from ±0.5%
TCR linear +4250 ±1% ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -65°C to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

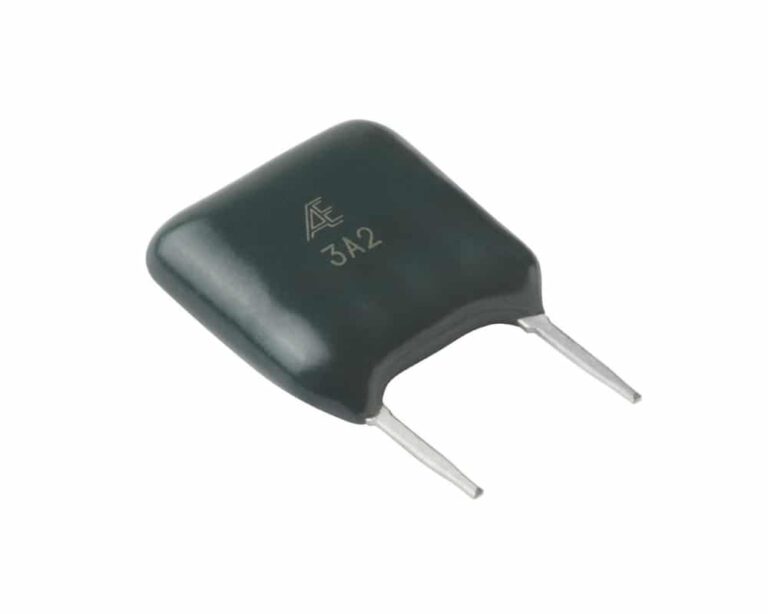

Alpha KLC Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosenstive through-hole resistor
Resistance range from 20Ω to 40kΩ
Tolerance from ±0.5% available
TCR are almost linear
Power rating of 0.25W (at +70°C)
Temperature range from -25°C up to +125°C

Thermosenstive through-hole resistor
Resistance range from 20Ω to 40kΩ
Tolerance from ±0.5% available
TCR are almost linear
Power rating of 0.25W (at +70°C)
Temperature range from -25°C up to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

Alpha NLA Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosensitive through-hole resistor
Resistance range from 5Ω and 500Ω
Tolerance from ±0.5%
TCR linear +6660 ±1% ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -65°C to +125°C

Thermosensitive through-hole resistor
Resistance range from 5Ω and 500Ω
Tolerance from ±0.5%
TCR linear +6660 ±1% ppm/°C
Power rating of 0.125W (at +70°C)
Temperature range from -65°C to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

Alpha NLB Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosensitive through-hole resistor
Resistance range from 5Ω to 1kΩ
Tolerance from ±0.5%
TCR linear +6660 ±1% ppm/°C TCR
Power rating of 0.25W (at +70°C)
Temperature range from -65°C to +125°C

Thermosensitive through-hole resistor
Resistance range from 5Ω to 1kΩ
Tolerance from ±0.5%
TCR linear +6660 ±1% ppm/°C TCR
Power rating of 0.25W (at +70°C)
Temperature range from -65°C to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

Alpha NMP Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosensitive surface-mount resistor
Resistance range from 5Ω to 250Ω
Tolerance from ±0.5%
TCR linear +6660 ±2% ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -25°C to +125°C

Thermosensitive surface-mount resistor
Resistance range from 5Ω to 250Ω
Tolerance from ±0.5%
TCR linear +6660 ±2% ppm/°C
Power rating of 0.1W (at +70°C)
Temperature range from -25°C to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

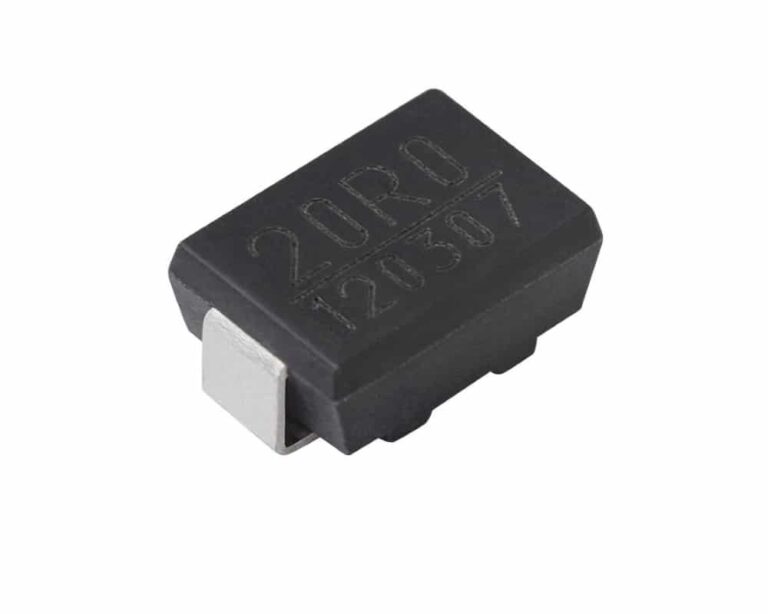

Alpha NMQ Series

Alpha CL, KLC, NL & NM Series Datasheet

Thermosensitive surface-mount resistor
Resistance range from 5Ω to 500Ω
Tolerance from ±0.5%
TCR Linear +6660 ±2% ppm/°C TCR
Power rating of 0.125W (at +70°C)
Temperature range from -25°C to +125°C

Thermosensitive surface-mount resistor
Resistance range from 5Ω to 500Ω
Tolerance from ±0.5%
TCR Linear +6660 ±2% ppm/°C TCR
Power rating of 0.125W (at +70°C)
Temperature range from -25°C to +125°C

Alpha CL, KLC, NL & NM Series Datasheet

Manufacturers

Looking for Thermosensitive Resistors?

The below manufacturers are all of our authorised partners that produce Thermosensitive Resistors or related products.

Thermosensitive Resistors

Here at Rhopoint Components, we offer a range of highly accurate, through-hole and surface-mount thermosensitive resistors from Alpha Electronics. These ultra-precision resistors utilise metal foil technology to achieve resistivity values changing linearly (or almost linearly) as the temperature changes, which makes them a perfect choice for use in cold junction references for thermocouples, temperature compensation and temperature sensing applications. The Alpha thermosensitive resistors are generally available in any resistance value within a given range and with a choice of different tolerances, while the most popular values are available from stock for quick delivery.
