About SRT Resistor Technology

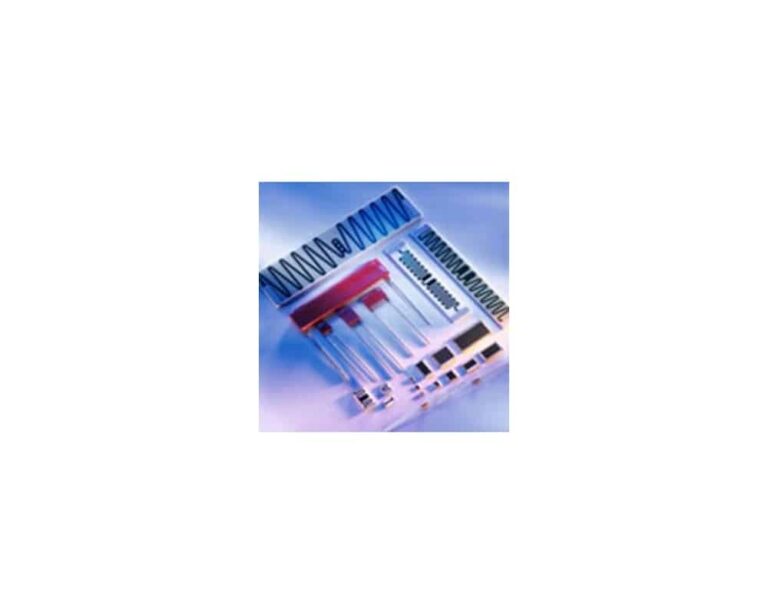

High Voltage, High Ohmic, High Temperature Thick Film Resistors
SRT Resistor Technology GmbH, founded in 1996 as MBO of the resistor department of former Siegert GmbH, is continuing a nearly 50 year old tradition in the production of resistors. In former years the main products have been leaded miniature resistors for Hearing Aids, but during the last 10 years a leading position on the world market has been achieved with High Value Resistors. The main applications of these products are in Industrial Electronics for detection and amplification of low signals. Other important products are non-magnetic resistors for Medical Electronics and glueable chip resistors for the Automotive Electronics.
- High ohmic resistors, up to 10Tฮฉ, and high voltage resistors in both SMD and through-hole packages
- High temperature variants available with operating temperatures up to +300ยฐC
- High voltage resistors with operating voltages up to 6000 Volt (SMD) and 80 kV (leaded)
- Non-magnetic models available
- Custom voltage dividers and resistor networks options
SRT Resistor Technology GmbH is an independent company, located in the south of Germany, with long experience in the development and production of high-grade resistors and special products. Their main product focus is High-Value Resistors in Thick film technology. For their official website, please visit www.srt-restech.de

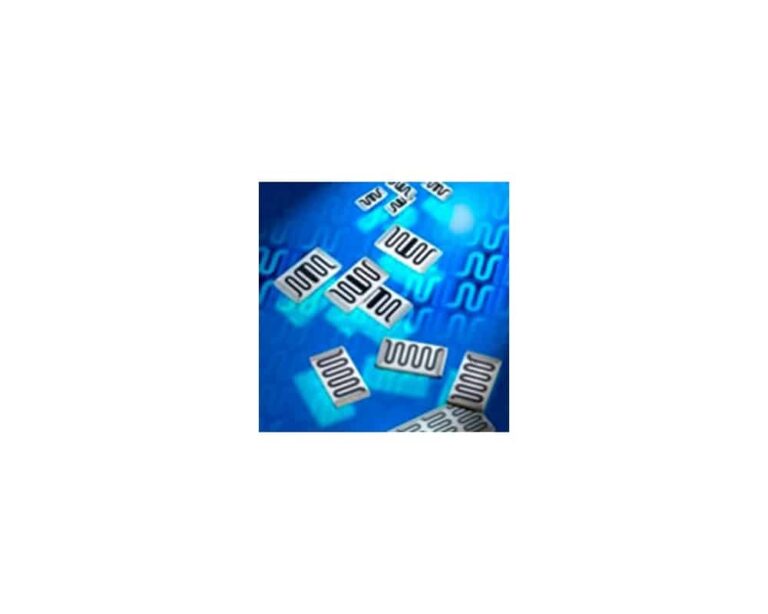

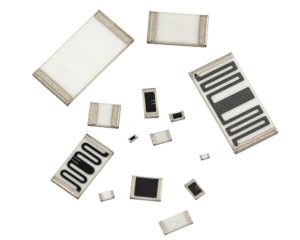

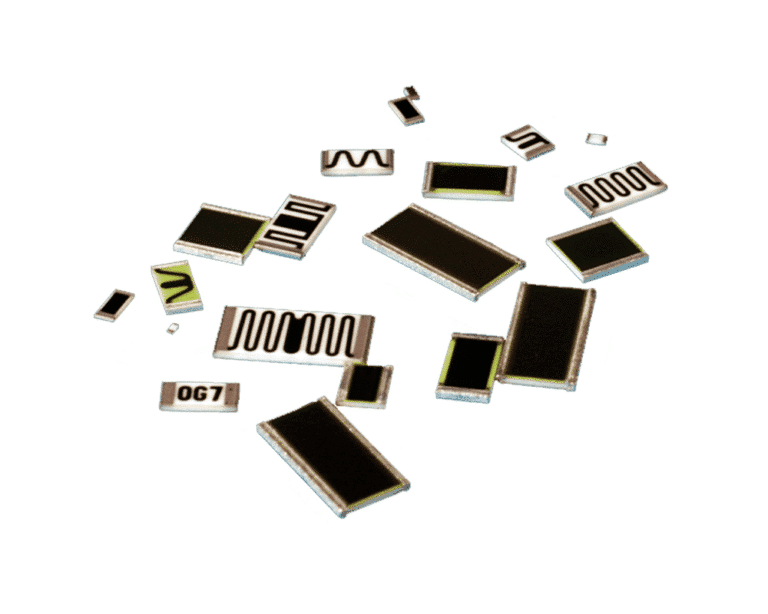

- Non-magnetic thick film chip resistor
- Resistance range from 10ฮฉ to 100Gฮฉ
- Tolerances from ยฑ5.0% to ยฑ30%
- TCR from ยฑ100 ppm/ยฐC to ยฑ3000 ppm/ยฐC
- Power rating of 0.05W (at +70ยฐC)
- Temperature range from -55ยฐC to +155ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 10ฮฉ to 100Gฮฉ
- Tolerances from ยฑ5.0% to ยฑ30%
- TCR from ยฑ100 ppm/ยฐC to ยฑ3000 ppm/ยฐC
- Power rating of 0.1W (at +70ยฐC)
- Temperature from -55ยฐC to +155ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 10ฮฉ to 1Tฮฉ
- Tolerances from ยฑ5.0% to ยฑ30%
- TCR from ยฑ100 ppm/ยฐC to ยฑ3000 ppm/ยฐC
- Power rating of 0.125W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 10ฮฉ to 1Tฮฉ
- Tolerances from ยฑ5.0% to ยฑ30%
- TCR from ยฑ100 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.25W (at +70ยฐC)
- Temperature range from -55ยฐC to +155ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ0.5% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.125W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- High temperature, non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ2% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.125W (at +70ยฐC)
- Temperature range from -55ยฐC up to +300ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ0.5% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.250W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- High temperature, non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ1% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.25W (at +70ยฐC)
- Temperature range from -55ยฐC up to +300ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ0.5% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.35W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- High temperature, non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ1% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 0.35W (at +70ยฐC)
- Temperature range from -55ยฐC up to +300ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ0.5% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ1000 ppm/ยฐC
- Power rating of 0.5W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- High temperature, non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 1Tฮฉ
- Tolerances from ยฑ2% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ1000 ppm/ยฐC
- Power rating of 0.5W (at +70ยฐC)
- Temperature range from -55ยฐC up to +300ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 10Tฮฉ
- Tolerances from ยฑ0.5% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ3000 ppm/ยฐC
- Power rating of 1W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- High temperature, non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 10Tฮฉ
- Tolerances from ยฑ1% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ3000 ppm/ยฐC
- Power rating of 1W (at +70ยฐC)
- Temperature range from -55ยฐC up to +300ยฐC
- Non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 10Tฮฉ
- Tolerances from ยฑ0.5% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 2W (at +70ยฐC)
- Temperature range from -55ยฐC up to +155ยฐC
- High temperature, non-magnetic thick film chip resistor
- Resistance range from 100kฮฉ to 10Tฮฉ
- Tolerances from ยฑ1% to ยฑ30%
- TCR from ยฑ25 ppm/ยฐC to ยฑ2000 ppm/ยฐC
- Power rating of 2W (at +70ยฐC)
- Temperature range from -55ยฐC up to +300ยฐC
