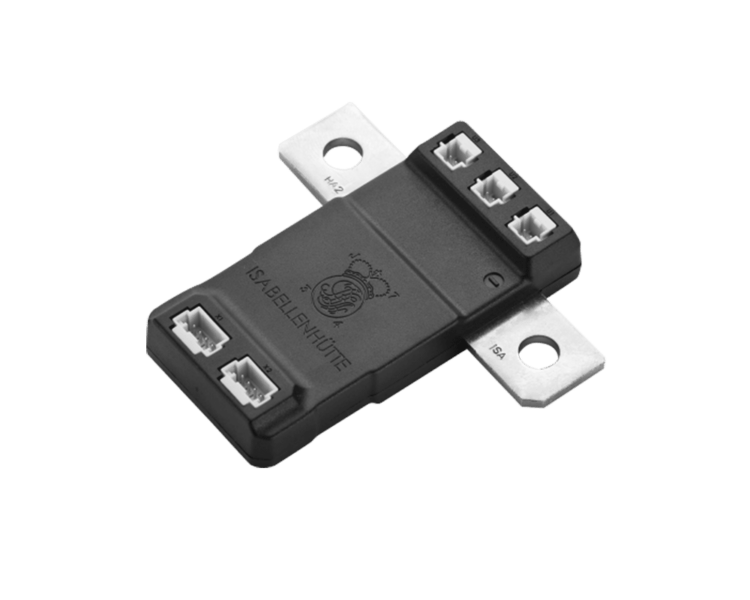

isabellenhütte-ivt-s-compact-high-precision-current-measurement-device

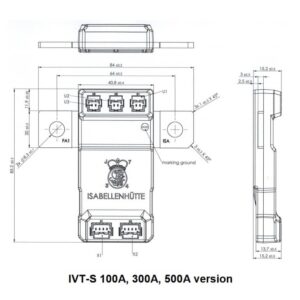

ivt-s_100-500_drawing

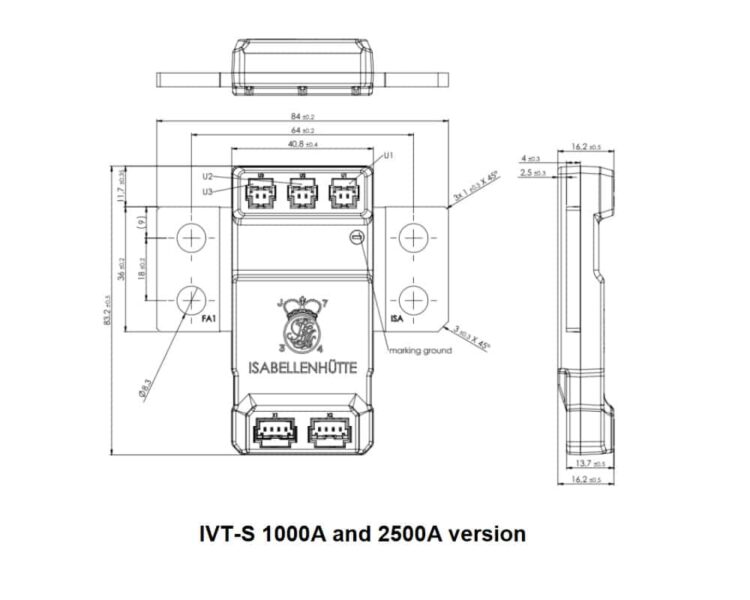

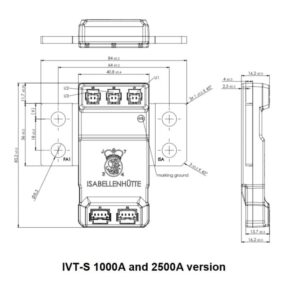

ivt-s_1000-2500_drawing

isabellenhütte-ivt-s-compact-high-precision-current-measurement-device

ivt-s_100-500_drawing

ivt-s_1000-2500_drawing

Isabellenhütte IVT-S series

Product Features

Current & voltage measurement sensor
Current range up to ±2,500A
Voltage range up to ±1,200V (Extended)
Communication based on CANbus 2.0 & DBC
Accuracy of ±0.4% of reading
Temperature range from -40°C to +105°C

Series / Model
Communication Channels
Current Rating
Voltage Channels
Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Any questions, contact us?

Why buy from Rhopoint?

Frequently Asked Questions

Application Notes

The IVT-S current and voltage measurement sensor is an intelligent shunt-based plug-and-play measurement system. The module continuously measures current and is available in either 100A, 300A, 500A, 1000A or 2500A. The IVT-S modules offer guaranteed galvanic isolation up to 1000V making them suitable for high-voltage applications. There is also a temperature sensor within the module utilised for temperature calibration, ensuring optimised results across the whole temperature range.

The shunt-based measurement method uses a 16-bit analog-digital-converter (ADC) at a speed of up to 1kHz to transform the voltage drop into a digital signal. The communication is based on a CANbus 2.0a interface. A CAN description file (CAN-dbc) is available and supports fast system integration.

The ITV-S is offered as a modular system, with the options for 3 voltage monitoring channels and an additional CAN port to enable daisy-chaining.

Key features of the IVT-S Current & Voltage Measurement Sensor include:

Intelligent shunt-based current and voltage measurement sensor
5 nominal current options: 100A, 300A, 500A, 1000A or 2500A
Optional 3-channel voltage measurement channels and extra CAN port
Optional extra CAN port for daisy-chain capabilities
Communication via CANbus 2.0 interface & DBC
Ambient temperature range of -40°C to +105°C
Accuracy of ±0.4% of reading for current measurement
Accuracy of ±0.5% of reading for voltage measurement
Dielectric strength of 1000V

Standard Module outputs

Current
Temperature (at shunt)
Current counter (As)

Additional outputs available with voltage measurement:

3x voltage
Power
Energy counter (Wh)

Typical applications for the IVT-S current and voltage measurement module series include:

Hybrid and full electric drives
UPS systems
Stationary energy storage systems
Fuel cells
All battery and storage based applications

Isabellenhütte IVT-S Series Operating Specification Table

Attributes	Value
Operating temperature	-40°C to +105°C
Storage temperature	-40°C to +125°C
Storage humidity	≤95%
Supply voltage (Vcc)	5.5V to 40V (12V typical)
Supply voltage	-42V to 42V
Current consumption	≤80mA (30mA typical)
Re-/ Startup time	≤400ms (350ms typical)
Waiting time power on/off	>2ms

Isabellenhütte IVT-S Series Current Measurement Table

Attributes
Nominal measurement range (depending on shunt)	±100A	±300A	±500A	±1000A	±2500A
Extended load (5 min)	±120A	±320A	±730A	±1100A	±2700A
Extended load (30s)	±200A	±430A	±860A	±1400A	±3200A
Extended load (10s)	±300A	±600A	±1000A	±2000A	±4300A
Extended load (1s)	±900A	±1600A	±2700A	±5500A	±11300A
Extended load (200ms)	±2000A	±3600A	±6000A	±12000A	±24000A
Power loss	<3W	<9W	<9W	<20W	<32W
Initial accuracy *	±0.1%rdg**	±0.1%rdg**	±0.1%rdg**	±0.1%rdg**	±0.1%rdg**
Total accuracy *	±0.4%rdg**	±0.4%rdg**	±0.4%rdg**	±0.4%rdg**	±0.4%rdg**
Offset	8mA	25mA	75mA	125mA	500mA
Linearity	0.01% of range	0.01% of range	0.01% of range	0.01% of range	0.01% of range
Noise	5mA (RMS)	15mA (RMS)	40mA (RMS)	70mA (RMS)	280mA (RMS)
Resolution	3mA	10mA	27mA	47mA	186mA
Overcurrent measurement range	±800	±2500	±6900	±12200	±48000
Accuracy (Overcurrent range)	±3%rdg	±3%rdg	±3%rdg	±3%rdg	±3%rdg
Offset (Overcurrent range)	60mA	200mA	540mA	940mA	3720mA
Linearity (Overcurrent range)	0.1% of range	0.1% of range	0.1% of range	0.1% of range	0.1% of range
Noise (Overcurrent range)	40mA (RMS)	120mA (RMS)	320mA (RMS)	560mA (RMS)	2240mA (RMS)
Resolution (Overcurrent range)	24mA	80mA	216mA	376mA	1488mA

Isabellenhütte IVT-S Series Voltage Measurement Table

Attributes	Value
Nominal measurement range	±1000V
Extended range (nonlinear)	±1200V
Initial accuracy	0.1% of reading
Total accuracy	0.5% of reading
Offset	100mV
Linearity	0.01% of range
Noise ***	30mV (RMS)
Resolution	30mV

_{* In nominal measurement range}
_{** Failure of reading}
_{*** Without averaging}

Isabellenhütte has been one of the world’s leading providers of ultra-modern measurement technology systems for years as a proven specialist in the precise measurement of high currents. We offer our customers precision measurement systems with exceptional performance data under the brand name ISAscale®. Please visit www.isabellenhuette.de for more information on ISAscale® or contact one of our technical engineers today.

Specifications

Weight	0.133 kg
Dimensions	16.20 x 83.20 x 84.00mm
Accuracy	±0.4% (Current Measurement), ±0.5% (Voltage Measurement)
Series / Model	IVT-S
Communication Channels	CAN-Termination on board, No CAN-Termination on board
Current Rating	100A, 300A, 500A, 1kA, 2.5kA
Options	Galvanic Isolation
Output	Current, Current Counter, Power, Temperature at Shunt, Three Voltage Channels
Product Type	Current and Voltage Measurement Sensor
Supply Voltage	12V/24V
Temperature Range (°C)	-40 to +105°C
Voltage Channels	3 channels, No channels
Voltage Rating	±1200V

Series / Model (IVT-S)

IVT-S: IVT-S

Current Rating (XXX)

100: 100A
1k: 1kA
2k5: 2.5kA
300: 300A
500: 500A

Voltage Channels (XX)

U0: No channels
U3: 3 channels

Options (X)

I: Galvanic Isolation

Communication Channels (XXXX)

CAN1: CAN-Termination on board
CAN2: No CAN-Termination on board

Isabellenhütte IVT-S Series - Available Variations


IVT-S-100-U0-I-CAN1-12/24	IVT-S-500-U3-I-CAN1-12/24
IVT-S-100-U0-I-CAN2-12/24	IVT-S-500-U3-I-CAN2-12/24
IVT-S-100-U3-I-CAN1-12/24	IVT-S-1K-U0-I-CAN1-12/24
IVT-S-100-U3-I-CAN2-12/24	IVT-S-1K-U0-I-CAN2-12/24
IVT-S-300-U0-I-CAN1-12/24	IVT-S-1K-U3-I-CAN1-12/24
IVT-S-300-U0-I-CAN2-12/24	IVT-S-1K-U3-I-CAN2-12/24
IVT-S-300-U3-I-CAN1-12/24	IVT-S-2K5-U0-I-CAN1-12/24
IVT-S-300-U3-I-CAN2-12/24	IVT-S-2K5-U0-I-CAN2-12/24
IVT-S-500-U0-I-CAN1-12/24	IVT-S-2K5-U3-I-CAN1-12/24
IVT-S-500-U0-I-CAN2-12/24	IVT-S-2K5-U3-I-CAN2-12/24

SKU	Communication Channels	Current Rating	Voltage Channels	Series / Model
Isa IVT-S-1K-U3-I-CAN1-12/24	CAN-Termination on board	1kA	3 channels		Request Quote
Isa IVT-S-1K-U3-I-CAN2-12/24	No CAN-Termination on board	1kA	3 channels		Request Quote
Isa IVT-S-1K-U0-I-CAN1-12/24	CAN-Termination on board	1kA	No channels		Request Quote
Isa IVT-S-1K-U0-I-CAN2-12/24	No CAN-Termination on board	1kA	No channels		Request Quote
Isa IVT-S-100-U3-I-CAN1-12/24	CAN-Termination on board	100A	3 channels		Request Quote
Isa IVT-S-100-U3-I-CAN2-12/24	No CAN-Termination on board	100A	3 channels		Request Quote
Isa IVT-S-100-U0-I-CAN1-12/24	CAN-Termination on board	100A	No channels		Request Quote
Isa IVT-S-100-U0-I-CAN2-12/24	No CAN-Termination on board	100A	No channels		Request Quote
Isa IVT-S-2K5-U3-I-CAN1-12/24	CAN-Termination on board	2.5kA	3 channels		Request Quote
Isa IVT-S-2K5-U3-I-CAN2-12/24	No CAN-Termination on board	2.5kA	3 channels		Request Quote
Isa IVT-S-2K5-U0-I-CAN1-12/24	CAN-Termination on board	2.5kA	No channels		Request Quote
Isa IVT-S-2K5-U0-I-CAN2-12/24	No CAN-Termination on board	2.5kA	No channels		Request Quote
Isa IVT-S-300-U3-I-CAN1-12/24	CAN-Termination on board	300A	3 channels		Request Quote
Isa IVT-S-300-U3-I-CAN2-12/24	No CAN-Termination on board	300A	3 channels		Request Quote
Isa IVT-S-300-U0-I-CAN1-12/24	CAN-Termination on board	300A	No channels		Request Quote
Isa IVT-S-300-U0-I-CAN2-12/24	No CAN-Termination on board	300A	No channels		Request Quote
Isa IVT-S-500-U3-I-CAN1-12/24	CAN-Termination on board	500A	3 channels		Request Quote
Isa IVT-S-500-U3-I-CAN2-12/24	No CAN-Termination on board	500A	3 channels		Request Quote
Isa IVT-S-500-U0-I-CAN1-12/24	CAN-Termination on board	500A	No channels		Request Quote
Isa IVT-S-500-U0-I-CAN2-12/24	No CAN-Termination on board	500A	No channels		Request Quote

Isabellenhütte IVT-S series Resources

Product Datasheet

Isabellenhütte IVT-S Series Datasheet
Isabellenhütte IVT-S intelligent current and voltage measurement sensor series datasheet

Supporting Product Information

Isabellenhütte IVT-S flyer
A short overview of the ISAscale® IVT-S shunt-based current & voltage sensor designed for DC applications

Supporting Manufacturer Information

Isabellenhütte Powder Metallurgy Information
Further information on the powder metallurgy process used to create Isabellenhütte precision resistors
