USB Data Jack

Weidmüller USB2.0A R1V 2.5N4 TY BK series

Through-hole PCB USB jack
THT/THR solder connection
Plugging cycles ≥1500
Solder pin length 2.9mm
Black in colour
UL listed
Temperature range of −20°C to +60°C

Through-hole PCB USB jack
THT/THR solder connection
Plugging cycles ≥1500
Solder pin length 2.9mm
Black in colour
UL listed
Temperature range of −20°C to +60°C

Weidmüller USB2.0A S1H 1.4N4 TY BK series

Through-hole PCB USB jack
THT/THR solder connection
Plugging cycles ≥1500
Solder pin length 1.4mm
Black in colour
UL listed
Temperature range of −40°C to +60°C

Through-hole PCB USB jack
THT/THR solder connection
Plugging cycles ≥1500
Solder pin length 1.4mm
Black in colour
UL listed
Temperature range of −40°C to +60°C

Weidmüller USB2.0A T1H 2.5N4 TY BK series

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 2.84mm
Black in colour
UL listed
Temperature range of −20°C to +60°C

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 2.84mm
Black in colour
UL listed
Temperature range of −20°C to +60°C

Weidmüller USB2.0A T1V 2.5N4 TY BK series

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 2.9mm
Black in colour
Temperature range of −40°C to +60°C
UL listed

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 2.9mm
Black in colour
Temperature range of −40°C to +60°C
UL listed

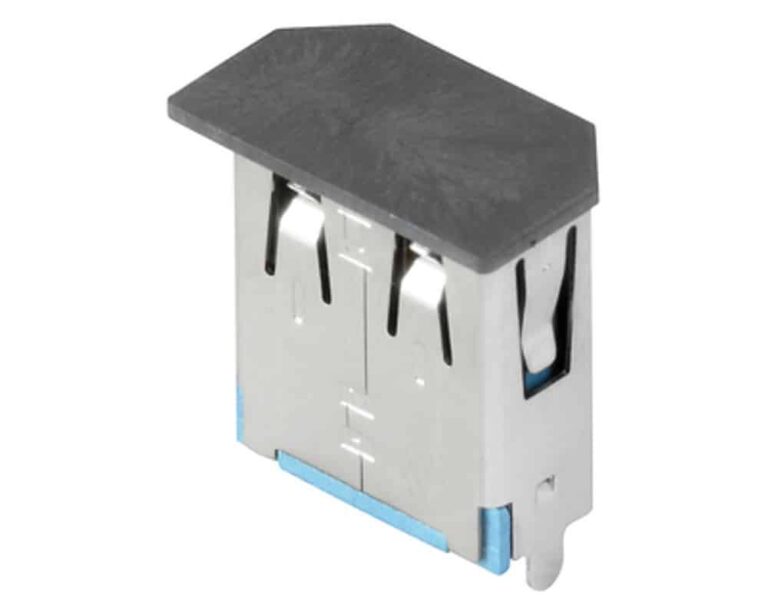

Weidmüller USB3.0A R1V 2.0N3 RL BL series

Through-hole PCB USB jack
THT/THR solder connection
Plugging cycles ≥1500
Solder pin length 2mm
Black in colour
Temperature range of −55°C to +85°C

Through-hole PCB USB jack
THT/THR solder connection
Plugging cycles ≥1500
Solder pin length 2mm
Black in colour
Temperature range of −55°C to +85°C

Weidmüller USB3.0A R1V 3.0N2 TY BL series

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 3mm
Pitch 0.5mm
Blue in colour
Temperature range of −40°C to +85°C
UL listed

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 3mm
Pitch 0.5mm
Blue in colour
Temperature range of −40°C to +85°C
UL listed

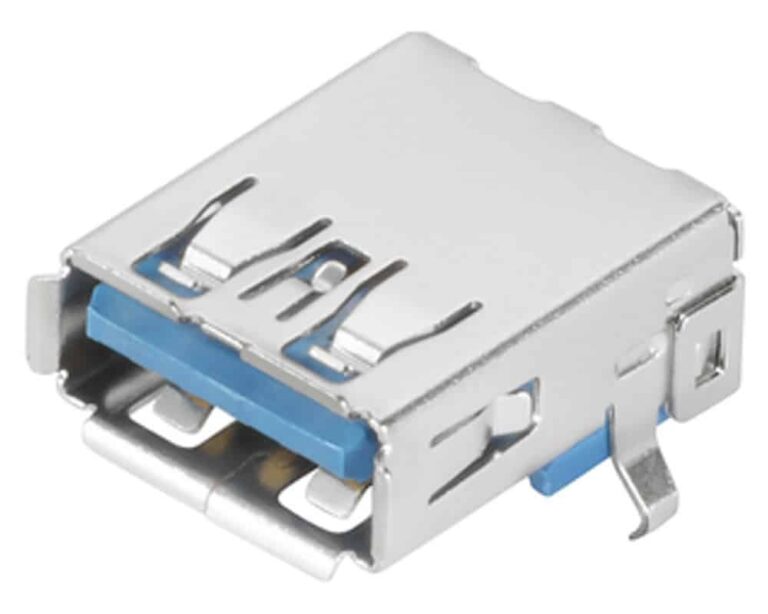

Weidmüller USB3.0A T1H 2.3N4 TY BL series

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 2.3mm
Blue in colour
UL listed
Temperature range of −25°C to +85°C

Through-hole PCB USB jack
THT solder connection
Plugging cycles ≥1500
Solder pin length 2.3mm
Blue in colour
UL listed
Temperature range of −25°C to +85°C

Manufacturers

Looking for USB Data Jack?

Looking for USB Data Jack?

The below manufacturers are all of our authorised partners that produce USB Data Jack or related products.

USB Data Jack

Weidmüller OMNIMATE range of USB data jacks offers a variety of PCB mountable Type A USB 2.0 and 3.0 connectors. Available with THT or TRH solder connections, various solder pin lengths, vertical (180°) or horizontal (90°) design option and other variables to meet your requirements. As with all Weidmüller connectors, the brand is a guarantee of high quality and reliable connectivity.
