Thermocouples

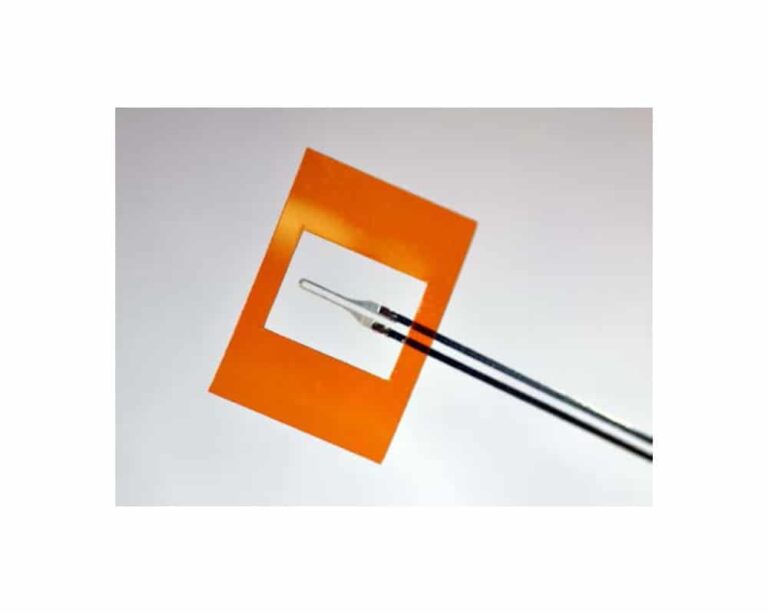

RdF 20100 Series

Butt bonded foil thermocouple
Micro-foil® thickness of 0.0128mm (0.0005″)
Insulation resistance of 50MΩ at 50VDC in Ungrounded junction TCs
2 wire configuration
Removable Kapton® frame for bare foil applications
Standard lead length of 6″, additional lengths available on request

Butt bonded foil thermocouple
Micro-foil® thickness of 0.0128mm (0.0005″)
Insulation resistance of 50MΩ at 50VDC in Ungrounded junction TCs
2 wire configuration
Removable Kapton® frame for bare foil applications
Standard lead length of 6″, additional lengths available on request

RdF 20101 Series

Butt bonded foil thermocouple
Micro-foil® thickness of 0.0128mm (0.0005″)
Insulation resistance of 50MΩ at 50VDC in Ungrounded junction TCs
2 wire configuration
Removable Kapton® frame for bare foil applications
Standard lead length of 6″, additional lengths available on request

Butt bonded foil thermocouple
Micro-foil® thickness of 0.0128mm (0.0005″)
Insulation resistance of 50MΩ at 50VDC in Ungrounded junction TCs
2 wire configuration
Removable Kapton® frame for bare foil applications
Standard lead length of 6″, additional lengths available on request

RdF 20102 Series

Butt bonded foil thermocouple
Micro-foil® thickness of 0.0128mm (0.0005″)
Insulation resistance of 50MΩ at 50VDC in Ungrounded junction TCs
2 wire configuration
Removable Kapton® frame for bare foil applications
Standard lead length of 6″, additional lengths available on request

Butt bonded foil thermocouple
Micro-foil® thickness of 0.0128mm (0.0005″)
Insulation resistance of 50MΩ at 50VDC in Ungrounded junction TCs
2 wire configuration
Removable Kapton® frame for bare foil applications
Standard lead length of 6″, additional lengths available on request

RdF 26721 Series

Stikon® type E thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

Stikon® type E thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

RdF 26722 Series

Stikon® type E thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

Stikon® type E thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

RdF 26723 Series

Stikon® type K thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

Stikon® type K thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

RdF 26724 Series

Stikon® type J thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

Stikon® type J thermocouple
Insulation resistance of 50MΩ minimum at 50VDC in Ungrounded junction TCs
2 wire configuration
Kapton® case material
Embeded in a paper thin laminate

Manufacturers

Looking for Thermocouples?

Looking for Thermocouples?

The below manufacturers are all of our authorised partners that produce Thermocouples or related products.

Thermocouples

We are pleased to offer a select range of RDF surface thermocouples.

These thermocouples are presented in two styles, these are:

RdF’s exclusive butt bonded thin foils for the most demanding applications. Butt bonded (no overlap) sensing junctions in 0.0002″ or 0.0005″ thick foil provide an ideal response. Types K, E and T are available in a choice of foil patterns with ribbon or fibreglass covered leads. Free foil TCs operate <540°C (1000°F) when installed using ceramic cement or plasma spray.

Stikon® styles are ideal for temporary test or permanent adhesive mounting. Sensing junctions are flattened and packaged in flexible Kapton® to bond sufficient length for accurate measurement Available with or without adhesive layer to 260°C (500°F).
