About Core Sensors

Core Sensors manufacture highly configurable sensors, transducers, and transmitters for measuring pressure and temperature properties in industrial, hydrogen, energy, and other fluid and gas process applications.

We manufacture sensors specifically designed to withstand the rugged demands of industrial applications including high vibration, long-term submersion, high humidity, and high-pressure washdowns for both indoor and outdoor applications. We also offer sensors designed to overcome the complications that are inherent to Hydrogen applications and provide a high-quality/long-life solution.

Core Sensors offers a wide variety of pressure transducers certified to operate safely in hazardous locations. Third-party certifications include CSA Class I, Division 2 Non-Incendive, Division 1 Intrinsically Safe, CE, and more.

We offer a diverse portfolio of sensor configuration options, ensuring the best fit for your application. Don’t see what you need? Let us know and we will work with you on the most suitable option.

For their official website, please visit www.core-sensors.com

Services

Core Sensors CS-SM Series

Steel mill pressure transducer
Pressures up to 350 Bar
Accuracy down to ≤±0.25% BFSL
Pressure cycles of >100 million
Burst pressure of 10X or 20,000 PSI (whichever is less)
IP69 protection against high pressure washdown
Integral snubber protects against pressure transients

Core Sensors CS10 Series

Industrial pressure transducer
Pressure ranges from vacuum up to 45,000 PSI
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum
Temperature range from -40°C to +85°C
Media Temperature from -40°C to +120°C

Core Sensors CS11 Series

Compact media isolated pressure sensor
Pressure ranges from 0-2 up to 2,000 PSI
Accuracy as low as ≤ ±0.25% BFSL
Stability of ≤ ±0.2% of FS (1 year)
Pressure cycles of 10 million
Overpressure of 2x minimum
Burst pressure of 5x or 4,000 PSI

Core Sensors CS12 Series

Submersible pressure transducer
Pressure ranges from 1 to 100 PSI
Accuracy down to ≤±0.25% BFSL
Stability (1 year) of ≤±0.25% of FS
Pressure cycles of 50 million
Overpressure of 2x minimum
Burst pressure of 5x or 500 PSI

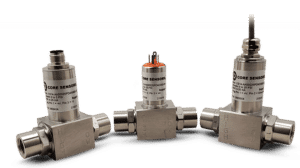

Core Sensors CS14 Series

Wet/wet differential pressure transducer
Differential pressure ranges up to 300 PSI
Line pressure up to 500 PSI
Accuracy of ≤±0.25% BFSL at 25°C
Stability of ≤±0.25% of FS
Pressure cycles of 4 million
Overpressure of 2x or 500 PSI

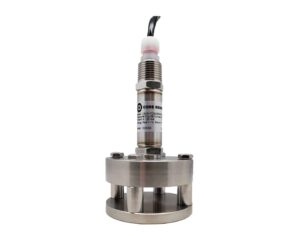

Core Sensors CS15 Series

Non-Clogging submersible pressure transducer
Pressure ranges from 2 PSI to 50 PSI
Flush diaphragm prevents clogging
Hastelloy C276 diaphragm material
IP68 rated
Operating temperature of -40 to +85°C
Compensated temperatures from 0 to +55°C

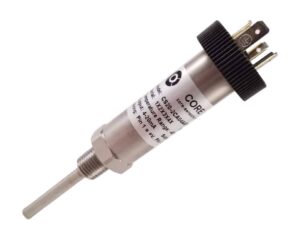

Core Sensors CS20 Series

Industrial temperature transmitter
RTD sensor type, PT100, Class B
Media temperature range of -40°C up to +200°C *
Operating temperature range of -40°C up to +85°C
Total error at RT & FS of ≤±1%
Maximum pressure of 5,000 PSI
Amplified 4-20mA or 1-5V output signal

Core Sensors CS-DHP Series

Downhole Pressure Sensor
Pressure ranges from 5,000 PSI to 30,000 PSI
High strength titanium BT9 sensing element
Excitation of 10VDC typical (12VDC maximum)
Full Scale Output at 10VDC of 125mV typical
Accuracy at 25°C of ≤±0.15% BFSL
Overpressure of 1.5x rated pressure

Core Sensors CS-HTP Series

Miniature High Temperature Pressure Sensor
Pressure ranges up to 30,000 PSI
High strength titanium BT9 sensing element
Accuracy of ≤±0.15% BFSL at 25°C
Optional PT1000 temperature output
Operating temperature from -195°C up to +204°C

Core Sensors CS-HTR Series

High Temperature Ratiometric Pressure Sensor
Pressure ranges up to 20,000 PSI
High strength titanium BT9 sensing element
Amplified 0.5 to 4.5V ratiometric output signal
Accuracy of ≤±0.15% BFSL at 25°C
Optional PT1000 temperature output
Media temperature from -50°C up to +170°C

Core Sensors CS50 Series

Non-incendive pressure transducer
Pressure ranges from 50 PSI to 30,000 PSI
Accuracy of ≤±0.25% BFSL at 25°C
Stability of ≤±0.25% of FS
Pressure cycles of 100 million
Overpressure of 2x minimum
Burst pressure of 5x or 60,000 PSI

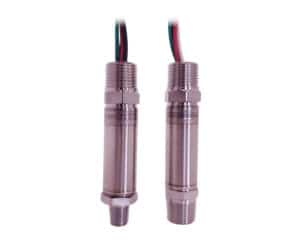

Core Sensors CS60 Series

Explosion-Proof Pressure Transducer
Pressure ranges from 50 PSI to 30,000 PSI
One piece diaphragm design – No internal O-rings or welds
Factory sealed stainless steel case – Withstands harsh environments
Accuracy of ≤±0.25% BFSL at 25°C (<10,000 PSI)
Pressure cycles of 100 million
Overpressure of 2x minimum

Core Sensors CS51 Series

Non-incendive low pressure transducer
Pressure ranges from 1 PSI up to 49 PSI
Temperature range from −20°C up to +80°C *
Accuracy of ≤±0.25% BFSL at 25°C **
Stability of ≤±0.25% of FS (1 year)
Pressure cycles of 100 million
Overpressure of 2x minimum

Core Sensors CS54 Series

Non-Incendive Differential Pressure Transducer
Differential pressure up to 50 PSI
Line pressure up to 500 PSI
Accuracy of ≤±0.25% BFSL / ≤±0.5% BFSL (2 PSI & below)
Overpressure of 2X or 500 PSI (whichever is less)
Temperature range −40°C to +80°C
Media temperature of -40 to +125°C

Core Sensors CS80 Series

Intrinsically safe pressure transducer
Pressure ranges available from 50 PSI up to 30,000 PSI
Temperature range −40°C to +85°C
Accuracy of ≤ ±0.25% BFSL
Burst pressure of 5x or 60,000 PSI whichever is less
Stability (1 year) of ≤ ±0.25% of FS
Pressure cycles of 100 million

Core Sensors CS81 Series

Intrinsically safe low pressure transducer
Pressure ranges from 1 PSI to 49 PSI
Accuracy of ≤±0.25% BFSL
Stability of ≤±0.25% of FS (1 year)
Pressure cycles of 100 million
Overpressure of 2x minimum
Burst pressure of 5x or 245 PSI
