OMNIMATE® Power

  • Weidmüller

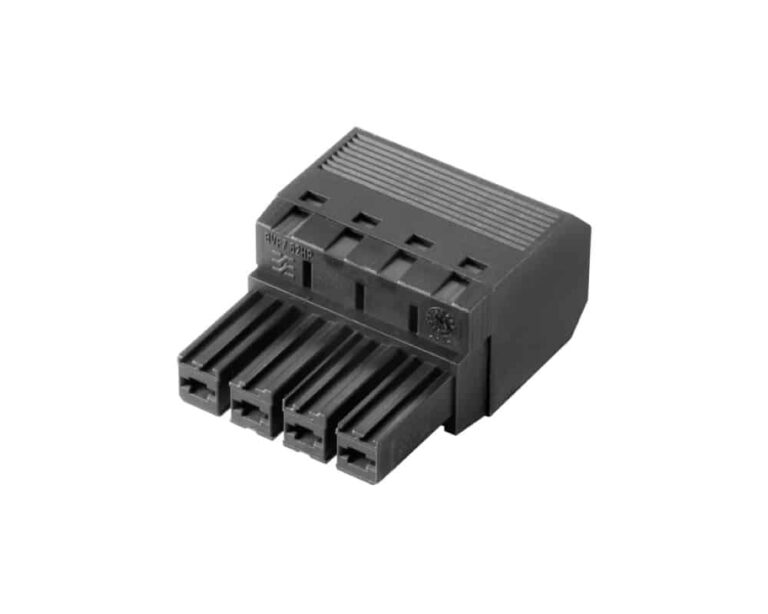

  • High power female plug in connector
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Clamping range from 0.2mm² to 16mm²
  • Wire connection cross section from AWG 22 to AWG 6
  • Temperature range −50°C up to +130°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • High power female plug in connector
  • Rated current for minimum number of poles 57A (IEC) and 39A (UL)
  • Dimensions of L1 7.62mm to 45.62mm (depending on the number of poles required)
  • Clamping range from 0.5mm² to 10mm²
  • Wire connection cross section from AWG 24 to AWG 8
  • Temperature range −50°C up to +125°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 41A (IEC) and 35A (UL)
  • Dimensions of L1 7.5mm to 82.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 24 to AWG 8
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 41A (IEC) and 37A (UL)
  • Dimensions of L1 7.5mm to 82.5mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 24 to AWG 8
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 65A (UL)
  • Dimensions of L1 10.16mm to 91.44mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 4.5mm
  • Wire connection cross section from AWG 22 to AWG 8
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 58A (UL)
  • Dimensions of L1 10mm to 110mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 6
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Study, direct connection fro extreme current and voltage requirements
  • Rated current for minimum number of poles 68A (IEC) and 58A (UL)
  • Dimensions of L1 15mm to 105mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 4
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 57A (UL)
  • Dimensions of L1 10mm to 110mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 4
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 76A (IEC) and 57A (UL)
  • Dimensions of L1 15mm to 105mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 5mm
  • Wire connection cross section from AWG 18 to AWG 4
  • Temperature range of −40°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • PCB terminal connector
  • Rated current for minimum number of poles 101A (IEC) and 85A (UL)
  • Dimensions of L1 0mm to 135mm (depending on the number of poles required)
  • THT solder connection with a solder pin length of 4.5mm
  • Wire connection cross section from AWG 16 to AWG 4
  • Temperature range of −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 78.3A (IEC) and 60A (UL)
  • Dimensions of L1 10.16mm to 81.28mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +120°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 57A (IEC) and 40.5A (UL)
  • Dimensions of L1 7.62mm to 83.82mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +130°C
  • CSA and UL 1059 approved, IEC listed
  • Weidmüller
  • High power PCB connector with male header and closed housing
  • Rated current for minimum number of poles 57A (IEC) and 40.5A (UL)
  • Dimensions of L1 7.62mm to 83.82mm (depending on the number of poles required)
  • Pin length of 3.5mm suitable for wave soldering
  • Temperature range −50°C to +130°C
  • CSA and UL 1059 approved, IEC listed

Manufacturers

Looking for OMNIMATE® Power?

Looking for OMNIMATE® Power?

The below manufacturers are all of our authorised partners that produce OMNIMATE® Power or related products.

OMNIMATE® Power

Weidmüller‘s OMNIMATE® Power products include PCB terminals, connectors, and panel feedthrough terminal blocks that are ideal for use in motor connections and power electronics, particularly in inverters, servo drives, heavy-duty power supplies, and motor starters.

The OMNIMATE® Power range contains all features necessary to meet the most demanding power and security requirements of PCB terminals, connectors, and panel feedthrough terminal blocks.

PCB connector key features

  • Application-oriented scalability: from the compact 2.5 mm² connectors up to the sturdy 16 mm²
  • Unlimited usage up to 1000V (IEC) or 600V (UL)
  • A variety of application-optimised mounting options
  • We offer you the compactest “PUSH IN” connection solution for field wiring up to 600 V UL

Power PCB terminals key features

  • High-power to 150A / 1000V (IEC) or 127A / 600V (UL)
  • Application-oriented scalability with connection cross-sections from 16mm² to 50mm²
  • Simple UL device approval up to 600V
  • PUSH IN wire connection up to 16mm²
  • Maintenance-free steel clamping yoke for vibration-resistant screw connections
