Current Sensing & Low Resistance Resistors

Alpha PSB Series

Alpha PSB Series Datasheet

Ultra-precision power shunt resistor
Resistance range form 0.001Ω to 1Ω
Tolerance of ±0.1%, ±0.5% or 1%
TCR of ±5 ppm/°C or ±15 ppm/°C
Power rating of upto 40W (on a heat sink at 25°C)
Temperature range from -55°C up to +85°C

Add to Compare

Ultra-precision power shunt resistor
Resistance range form 0.001Ω to 1Ω
Tolerance of ±0.1%, ±0.5% or 1%
TCR of ±5 ppm/°C or ±15 ppm/°C
Power rating of upto 40W (on a heat sink at 25°C)
Temperature range from -55°C up to +85°C

Alpha PSB Series Datasheet

Add to Compare

Alpha RBD Series

Alpha RBD, RBF & RBH Series Datasheet

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 0.5W (at 70°C)
Temperature range from -65°C to +155°C

Add to Compare

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 0.5W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBD, RBF & RBH Series Datasheet

Add to Compare

Alpha RBF Series

Alpha RBD, RBF & RBH Series Datasheet

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1W (at 70°C)
Temperature range from -65°C to +155°C

Add to Compare

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBD, RBF & RBH Series Datasheet

Add to Compare

Alpha RBH Series

Alpha RBD, RBF & RBH Series Datasheet

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 0.1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1.5W (at 70°C)
Temperature range from -65°C to +155°C

Add to Compare

Ultra-precision current sensing resistor
Resistance range form 0.01Ω to 0.1Ω
Tolerance from ±0.5% to ±5%
TCR of ±10 ppm/°C or ±25 ppm/°C
Power rating of 1.5W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RBD, RBF & RBH Series Datasheet

Add to Compare

Alpha RWA Series

Alpha RWA, RWB & RWC Series Datasheet

High precision wraparound resistor
Resistance range form 100Ω to 5kΩ
Tolerance of ±005% or ±0.1%
TCR of ±5 ppm/°C
Power rating of 0.1W (at 70°C)
Temperature range from -65°C to +155°C

Add to Compare

High precision wraparound resistor
Resistance range form 100Ω to 5kΩ
Tolerance of ±005% or ±0.1%
TCR of ±5 ppm/°C
Power rating of 0.1W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RWA, RWB & RWC Series Datasheet

Add to Compare

Alpha RWB Series

Alpha RWA, RWB & RWC Series Datasheet

High precision wraparound resistor
Resistance range form 10Ω to 10kΩ
Tolerance from ±0.02% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.2W (at 70°C)
Temperature range from -65°C to +155°C

Add to Compare

High precision wraparound resistor
Resistance range form 10Ω to 10kΩ
Tolerance from ±0.02% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.2W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RWA, RWB & RWC Series Datasheet

Add to Compare

Alpha RWC Series

Alpha RWA, RWB & RWC Series Datasheet

High precision wraparound resistor
Resistance range form 5Ω to 130kΩ
Tolerance from ±0.01% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.3W (at 70°C)
Temperature range from -65°C to +155°C

Add to Compare

High precision wraparound resistor
Resistance range form 5Ω to 130kΩ
Tolerance from ±0.01% to ±0.5%
TCR of ±2 ppm/°C, ±5 ppm/°C or ±10 ppm/°C
Power rating of 0.3W (at 70°C)
Temperature range from -65°C to +155°C

Alpha RWA, RWB & RWC Series Datasheet

Add to Compare

Caddock CC1512FC Series

Caddock CC Series Datasheet

Current sense resistor
Resistance range from 0.01Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 0.75W at 70°C
Temperature range from -55°C to +150°C

Add to Compare

Current sense resistor
Resistance range from 0.01Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 0.75W at 70°C
Temperature range from -55°C to +150°C

Caddock CC Series Datasheet

Add to Compare

Caddock CC2015FC Series

Caddock CC Series Datasheet

Current sensing resistor
Resistance range from 0.02Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 1W at 70°C
Temperature range from -55°C to +150°C

Add to Compare

Current sensing resistor
Resistance range from 0.02Ω to 10Ω
Tolerance from ±1.0% to ±5.0%
TCR of -20 to +80, 0 to +200 or +300 ppm/°C
Power rating of 1W at 70°C
Temperature range from -55°C to +150°C

Caddock CC Series Datasheet

Add to Compare

Caddock CC2015WB Series

Caddock CC Series Datasheet

Low resistance precision wire-bondable surface-mount resistor
Metalised back surface for soldering to a heat sink with bondable termination pads
2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
Chip size of 2015
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision wire-bondable surface-mount resistor
Metalised back surface for soldering to a heat sink with bondable termination pads
2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
Chip size of 2015
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CC Series Datasheet

Add to Compare

Caddock CC2520FC Series

Caddock CC Series Datasheet

Low resistance precision flip-chip surface-mount resistor
2-terminal current sense resistor with recommended 4-terminal PCB layout
Chip size of 2520
Solder coated pads between 0.01Ω and 0.02Ω, solderable pads between 0.025Ω and 10Ω
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision flip-chip surface-mount resistor
2-terminal current sense resistor with recommended 4-terminal PCB layout
Chip size of 2520
Solder coated pads between 0.01Ω and 0.02Ω, solderable pads between 0.025Ω and 10Ω
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CC Series Datasheet

Add to Compare

Caddock CC2520WB Series

Caddock CC Series Datasheet

Low resistance precision wire-bondable surface-mount resistor
Metalised back surface for soldering to a heat sink with bondable termination pads
2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision wire-bondable surface-mount resistor
Metalised back surface for soldering to a heat sink with bondable termination pads
2-terminal current sense resistor with 4-terminal connections available (see datasheet for further details)
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CC Series Datasheet

Add to Compare

Caddock CD2015FC Series

Caddock CD Series Datasheet

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD Series Datasheet

Add to Compare

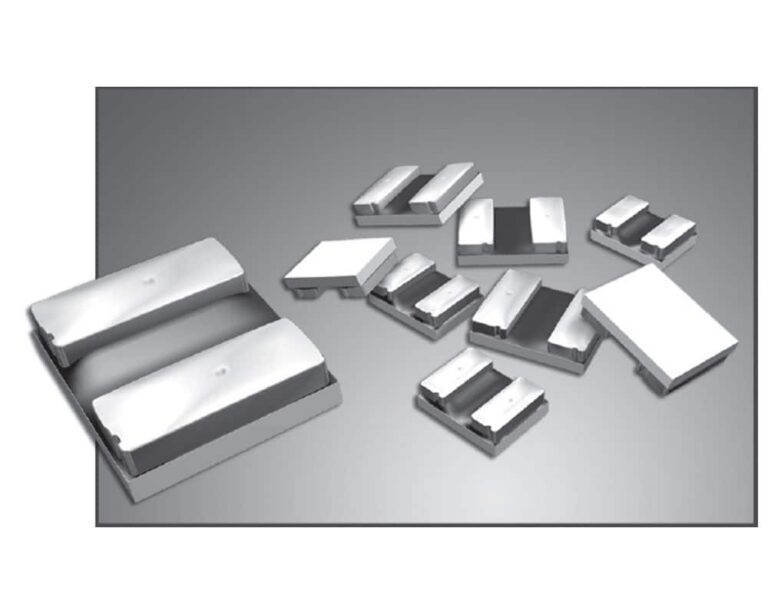

Caddock CD2015WBA Series

Caddock CD Series Datasheet

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2015
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD Series Datasheet

Add to Compare

Caddock CD2520FC Series

Caddock CD Series Datasheet

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision flip-chip surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Bare ceramic back surface
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD Series Datasheet

Add to Compare

Caddock CD2520WBA Series

Caddock CD Series Datasheet

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Add to Compare

Low resistance precision wire-bondable surface-mount resistor
Utilises the proven Caddock Micronox® resistance films to achieve the unique low resistance range
Pedestal terminal design helps maintain precision and its copper core provides heat spreading which enhances the high power handling capabilities
Chip size of 2520
Aluminium wire to be used for bonding
Inductance of less than 5nH typical
Maximum chip temperature of +150°C
Temperature range of -55°C to +150°C

Caddock CD Series Datasheet

Add to Compare

Manufacturers

Looking for Current Sensing & Low Resistance Resistors?

The below manufacturers are all of our authorised partners that produce Current Sensing & Low Resistance Resistors or related products.

Current Sensing & Low Resistance Resistors

Current sensing resistors are resistors used for measuring current in the circuit which can be converted using Ohm’s Law into a voltage reading. They usually come in very low resistance values, often measured in micro Ohms.

At Rhopoint Components we offer a wide range of current sensing resistors by leading manufacturers including Isabellenhütte, Alpha, Riedon and Susumu. Our current sensing resistors come in various shapes and sizes including surface-mount and through-hole. With such a vast range we can cater for virtually any resistance values.

Current Sensing & Low Resistance Resistors

Alpha PSB Series

Alpha RBD Series

Alpha RBF Series

Alpha RBH Series

Alpha RWA Series

Alpha RWB Series

Alpha RWC Series

Caddock CC1512FC Series

Caddock CC2015FC Series

Caddock CC2015WB Series

Caddock CC2520FC Series

Caddock CC2520WB Series

Caddock CD2015FC Series

Caddock CD2015WBA Series

Caddock CD2520FC Series

Caddock CD2520WBA Series

Manufacturers

Looking for Current Sensing & Low Resistance Resistors?

Current Sensing & Low Resistance Resistors

Products

Services

Help & Support

Privacy & Legal

Rhopoint Components Ltd.

Get in touch
