Load Banks

RARA FRH 25C

High Power Metal Clad Resistors
  • Metal clad thick film resistor
  • Resistance range from 1kΩ to 2MΩ
  • Max power rating of 15W
  • Cement moulding within aluminium housing
  • Short time overload of 2 x power rating is 5 seconds
  • High stability at conventional power ratings
  • Temperature range of -55°C up to +250°C

RARA FRH 50C

High Power Metal Clad Resistors
  • Metal clad thick film resistor
  • Resistance range from 1kΩ to 2MΩ
  • Max power rating of 25W
  • Cement moulding within aluminium housing
  • Short time overload of 2 x power rating is 5 seconds
  • High stability at conventional power ratings
  • Temperature range of -55°C up to +250°C

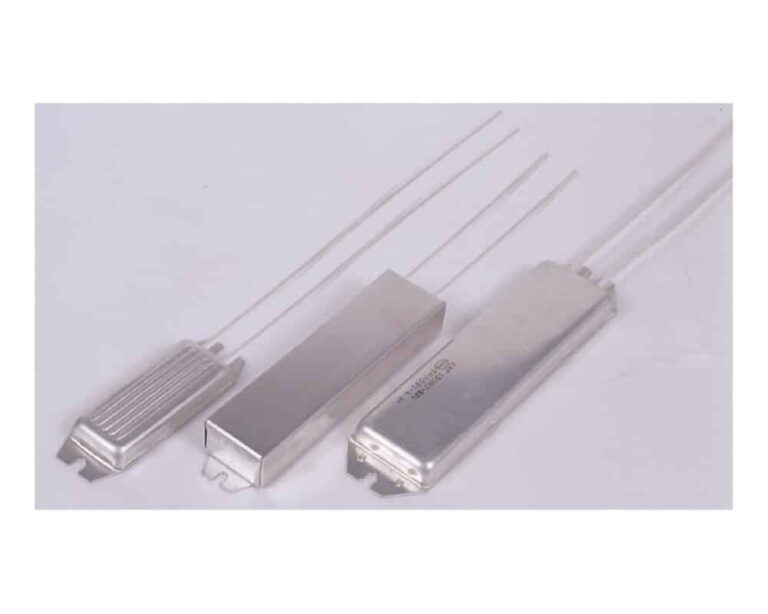

RARA IRH60

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 5 x power rating is 5 seconds

Talk to an Engineer

Get help specifying or customising the right product for your application.

RARA IRH80

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH100

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH120

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH150

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH200

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH300

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH400

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRH500

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Option of flying leads (tab terminals are standard)
  • Inductive or non-inductive design
  • Insulation resistance of 20MΩ minimum
  • Temperature range of -55°C up to +200°C
  • Extruded aluminium horizontal housing
  • Short time overload of 10 x power rating is 5 seconds

RARA IRM600

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Resistance options from 0.1Ω up to 94Ω
  • Power rating of up to 600W (on a heat sink)
  • Tolerance options between ±1% and ±10.0%
  • TCR of +260 ppm/°C maximum
  • For UL Approval see the ULM Series

RARA IRM800

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Resistance options from 0.1Ω up to 112Ω
  • Power rating of up to 800W (on a heat sink)
  • Tolerance options between ±1% and ±10.0%
  • TCR of +260 ppm/°C maximum
  • For UL Approval see the ULM

RARA IRM1000

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Resistance options from 0.1Ω up to 150Ω
  • Power rating of up to 1000W (on a heat sink)
  • Tolerance options between ±1% and ±10.0%
  • TCR of +260 ppm/°C maximum
  • For UL Approval see the ULM

RARA IRM1200

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Resistance options from 0.1Ω up to 160Ω
  • Power rating of up to 1200W (on a heat sink)
  • Tolerance options between ±1% and ±10.0%
  • TCR of +260 ppm/°C maximum
  • For UL Approval see the ULM

RARA IRM1600

Metal Clad Wire Wound Resistors
  • Metal clad wire wound resistor
  • Resistance options from 0.3Ω up to 88Ω
  • Power rating of up to 570W (free air)
  • Tolerance options between ±1% and ±10.0%
  • TCR of +260 ppm/°C maximum
  • For UL Approval see the ULM
