RJ45 Data Jack Transformers

Weidmüller RJ45G1 R12D 3.3E4G/Y TY

Through-hole RJ45 jack with transformer
  • Through-hole RJ45 jack with transformer
  • 750 plugging cycles
  • Gold over nickel contact surface
  • Twin port
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Weidmüller RJ45G1 R12D 3.3E4YG/YG RL

Through-hole RJ45 jack with transformer
  • Through-hole RJ45 jack with transformer
  • 750 plugging cycles
  • Gold over nickel contact surface
  • Twin port
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

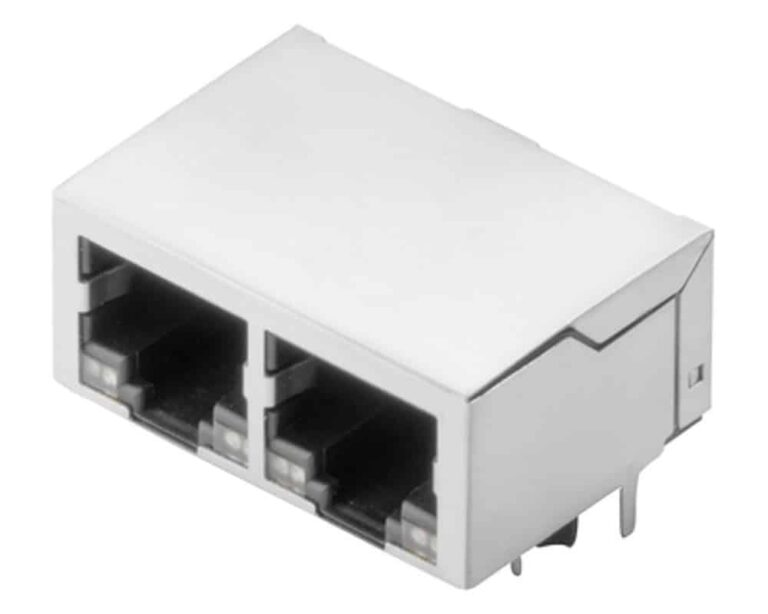

Weidmüller RJ45G1 R12D 3.3N4YG/YG RL

Through-hole RJ45 jack with transformer
  • Through-hole RJ45 jack with transformer
  • 750 Plugging cycles
  • Gold over nickel contact surface
  • Twin port
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Talk to an Engineer

Get help specifying or customising the right product for your application.

Weidmüller RJ45G1 R1D 3.3E4G/Y TY

Through-hole RJ45 jack with transformer
  • Through-hole RJ45 jack with transformer
  • 750 plugging cycle
  • Gold over nickel contact surface
  • Solder pin length of 3.3mm
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Weidmüller RJ45G1 R1V 3.3N4YG/YG TY series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Solder pin length 3.2mm
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Weidmüller RJ45M R12D 3.2N4G/Y RL series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer Jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Twin port
  • Black in colour
  • Temperature range of −40°C to +85°C
  • UL listed

Weidmüller RJ45M R1D 3.3N4Y/G TY series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer Jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Weidmüller RJ45M R1V 3.3N4Y/G TY series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

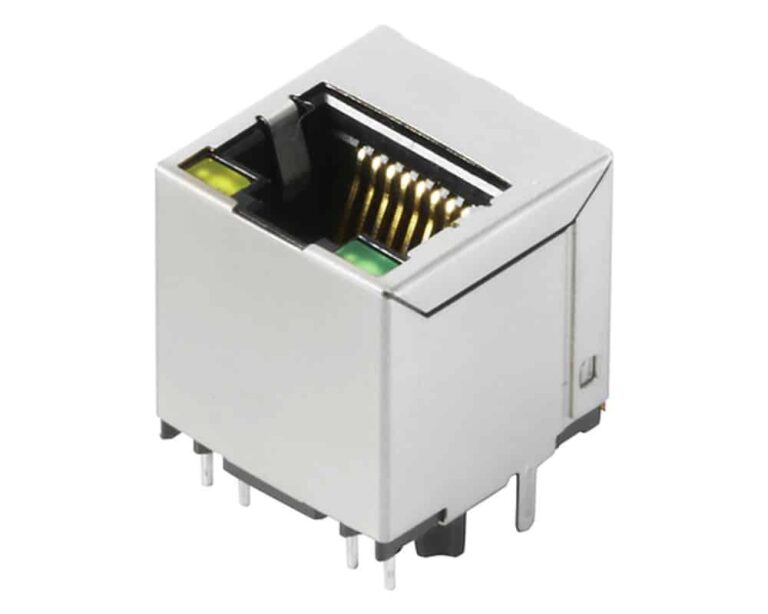

Weidmüller RJ45M R1V 3.3N4YG/YG TY series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Solder pin length 3.2mm
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

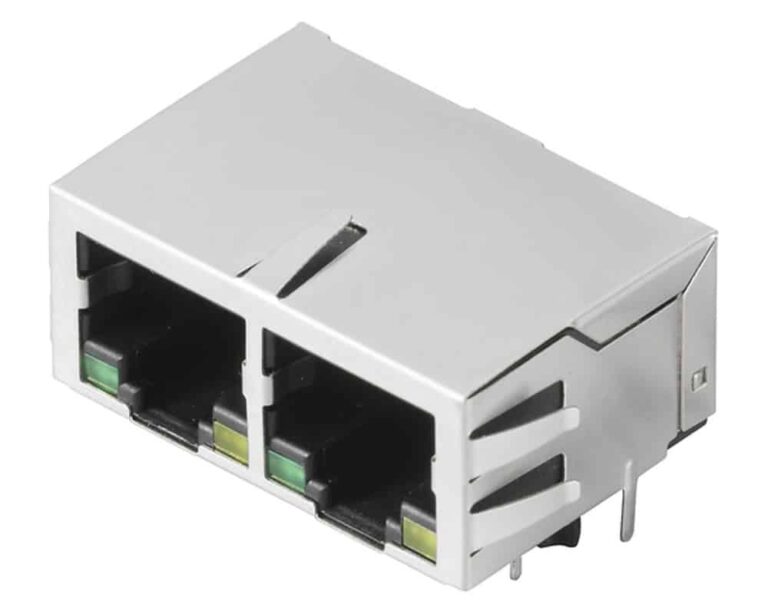

Weidmüller RJ45M T12D 3.3E4G/Y RL series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Twin port
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Weidmüller RJ45M T1D 3.2E4N TY series

Through-hole RJ45 transformer jack
  • Through-hole RJ45 transformer jack
  • Plugging cycles 750
  • Gold over nickel contact surface
  • Solder pin length 3.2mm
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed

Custom Component Solutions

Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

Related OMNIMATE® Data Components

Manufacturers

Looking for RJ45 Data Jack Transformers?

The below manufacturers are all of our authorised partners that produce RJ45 Data Jack Transformers or related products.

RJ45 Data Jack Transformers

RJ45 jacks with the Ethernet magnetics inside the connector body, so the transformer no longer occupies board area beside the PHY. Useful where port density is high or the layout is already tight.
