NVE ABT002-00E TMR Gear-Tooth Sensor

NVE ABT005-00E TMR gear-tooth sensor in a MSOP8 package
  • Dual-channel TMR gear-tooth sensor for module 0.2 gears
  • Target gear pitch 0.628mm, diametrical pitch 127
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 3 x 3mm MSOP8 package, RoHS
  • NVE

NVE ABT003-00E TMR Gear-Tooth Sensor

NVE ABT005-00E TMR gear-tooth sensor in a MSOP8 package
  • Dual-channel TMR gear-tooth sensor for module 0.3 gears
  • Target gear pitch 0.942mm, diametrical pitch 84.7
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 3 x 3mm MSOP8 package, RoHS
  • NVE

NVE ABT004-00E TMR Gear-Tooth Sensor

NVE ABT005-00E TMR gear-tooth sensor in a MSOP8 package
  • Dual-channel TMR gear-tooth sensor for module 0.4 gears
  • Target gear pitch 1.257mm, diametrical pitch 63.5
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 3 x 3mm MSOP8 package, RoHS
  • NVE

NVE ABT005-00E TMR Gear-Tooth Sensor

NVE ABT005-00E TMR gear-tooth sensor in a MSOP8 package
  • Dual-channel TMR gear-tooth sensor for module 0.5 gears
  • Target gear pitch 1.571mm, diametrical pitch 50.8
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 3 x 3mm MSOP8 package, RoHS
  • NVE

NVE ABT008-03E TMR Gear-Tooth Sensor

NVE ABT020-03E TMR gear-tooth sensor in a SOIC16 package
  • Dual-channel TMR gear-tooth sensor for module 0.8 gears
  • Target gear pitch 2.513mm, diametrical pitch 31.8
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 4 x 10mm SOIC16 package, RoHS
  • Requires a special order for a first-time build
  • NVE

NVE ABT010-03E TMR Gear-Tooth Sensor

NVE ABT020-03E TMR gear-tooth sensor in a SOIC16 package
  • Dual-channel TMR gear-tooth sensor for module 1 gears
  • Target gear pitch 3.142mm, diametrical pitch 25.4
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 4 x 10mm SOIC16 package, RoHS
  • Requires a special order for a first-time build
  • NVE

NVE ABT020-03E TMR Gear-Tooth Sensor

NVE ABT020-03E TMR gear-tooth sensor in a SOIC16 package
  • Dual-channel TMR gear-tooth sensor for module 2 gears
  • Target gear pitch 6.283mm, diametrical pitch 12.7
  • Maximum output 600mVpp/V typical when pitch matched to the gear
  • Sensor element linearity 1% maximum, hysteresis 1% maximum
  • Operating frequency to 350kHz
  • Supply voltage 0 to 10V
  • Operating temperature −50°C to +150°C
  • 4 x 10mm SOIC16 package, RoHS
  • Coto Technology

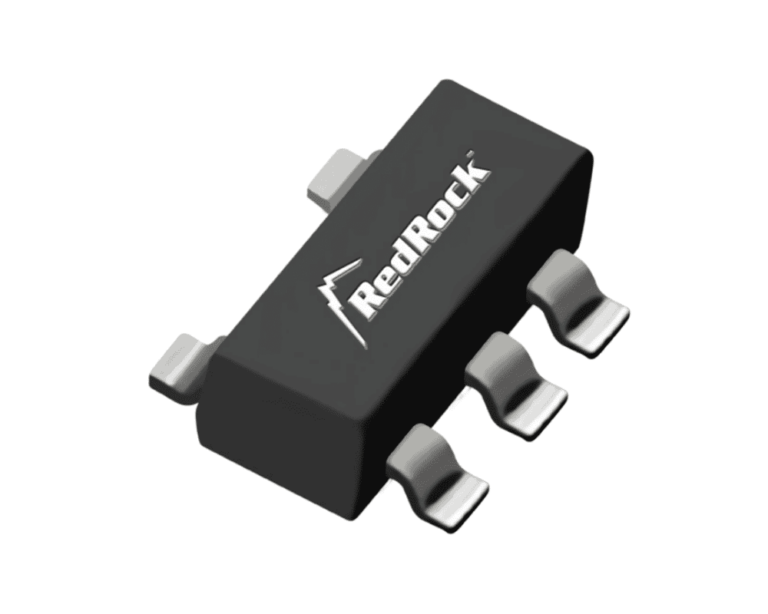

Coto RR123-1H02-612 Series

Coto RedRock TMR Digital Push-Pull Magnetic Sensor Switch
  • TMR digital push-pull magnetic sensor
  • Lower power consumption of 20nA
  • Omnipolar push-pull response
  • Supply voltage range from 1.0V to 3.6V
  • Temperature range of -40°C and +85°
  • LGA-4 package size
  • Compliant
RR123-1H02-612
  • Coto Technology

Coto RR112-1G42/1G43 Series

  • TMR analog magnetic sensor
  • Operate sensitivity from -80 G to +80 G (typical)
  • Average supply current of 1.5μA at 3V (typical)
  • Supply voltage range of 1.7V to 5.5V
  • Linear Analog Voltage Response
  • Operating frequency of 100Hz
  • SOT-23-3 (531) or LGA4 (532) package
  • Coto Technology

Coto RR132-2E22/2E23 Series

  • TMR digital open-drain magnetic sensor
  • Operate sensitivity of -15 G (typical)
  • Average supply current of 85nA at 3V (typical)
  • Supply voltage range of 1.7V to 5.5V
  • Unipolar Open-drain response
  • Operating frequency of 10Hz
  • SOT-23-3 (551) package
  • Compliant
Coto RR132-2E22/2E23
  • Coto Technology

Coto RR132-2E32/2E33 Series

  • TMR digital open-drain magnetic sensor
  • Operate sensitivity of -15 G (typical)
  • Average supply current of 110nA at 3V (typical)
  • Supply voltage range of 1.7V to 5.5V
  • Unipolar open-drain response
  • Operating frequency of 20Hz
  • SOT-23-3 (551) package
  • Compliant
Coto RR132-2E32/2E33
  • Coto Technology

Coto RR132-1B12/1B13 Series

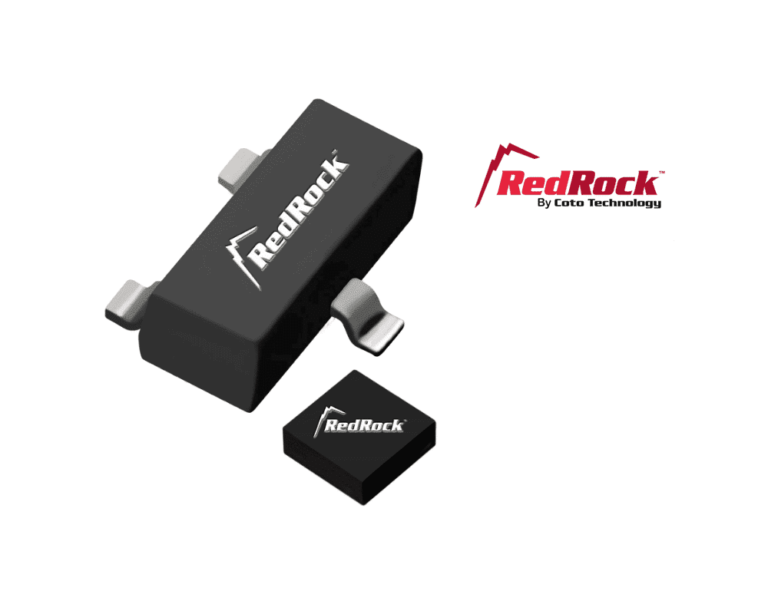

coto-tecnology_redrock-tmr-sensors
  • TMR digital open-drain magnetic sensor
  • Operate sensitivity of 30 G (typical)
  • Average supply current of 70nA at 3V (typical)
  • Supply voltage range of 1.7V to 5.5V
  • Omnipolar push-pull response
  • Operating frequency of 2Hz
  • SOT-23-3 (511) or LGA-4 (512) package
  • Compliant
Coto RR132-1B12/1B13 Series
  • Coto Technology

Coto RR133-1E83-511 Series

  • TMR ​ultra-low power digital magnetic sensor
  • Omnipolar magnetic field response
  • Operate sensitivity of 14 G (typical)
  • Supply voltage range of 2.4V to 5.5V
  • Operating frequency of 1 kHz
  • Operating temperature range from -40°C to +125°C.

  • Compliant
Coto RR133-1E83-511
  • NVE

NVE AAT001-10E

  • Tunnelling Magnetoresistance (TMR) technology
  • Supply voltage +5.5V
  • Miniature TDFN6 package
  • Microwatt power consumption
  • High output signal without amplification
  • Sine and cosine and outputs
  • Immune to airgap variations
  • Compliant
NVE AAT001-10E
  • NVE

NVE AAT003-10E

  • Tunnelling Magnetoresistance (TMR) technology
  • Supply voltage +5.5V
  • Miniature TDFN6 package
  • Low power consumption
  • High output signal without amplification
  • Sine and cosine and outputs
  • Direct microcontroller interfacing.
  • Temperature range −40°C to +125°C
  • Compliant
NVE AAT003-10E
  • NVE

NVE AAT006-10E

  • Tunnelling Magnetoresistance (TMR) technology
  • Supply voltage +5.5V
  • Miniature TDFN6 package
  • Low power consumption
  • High output signal without amplification
  • Sine and cosine and outputs
  • Immune to airgap variations
  • Compliant
NVE AAT006-10E

NVE ABT002-00E TMR Gear-Tooth Sensor

nve abt002-00e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 0.2 gears
  • Target gear pitch 0.628mm, diametrical pitch 127
  • Maximum output 600mVpp/V… Read More

NVE ABT003-00E TMR Gear-Tooth Sensor

nve abt003-00e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 0.3 gears
  • Target gear pitch 0.942mm, diametrical pitch 84.7
  • Maximum output 600mVpp/V… Read More

NVE ABT004-00E TMR Gear-Tooth Sensor

nve abt004-00e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 0.4 gears
  • Target gear pitch 1.257mm, diametrical pitch 63.5
  • Maximum output 600mVpp/V… Read More

NVE ABT005-00E TMR Gear-Tooth Sensor

nve abt005-00e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 0.5 gears
  • Target gear pitch 1.571mm, diametrical pitch 50.8
  • Maximum output 600mVpp/V… Read More

NVE ABT008-03E TMR Gear-Tooth Sensor

nve abt008-03e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 0.8 gears
  • Target gear pitch 2.513mm, diametrical pitch 31.8
  • Maximum output 600mVpp/V… Read More

NVE ABT010-03E TMR Gear-Tooth Sensor

nve abt010-03e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 1 gears
  • Target gear pitch 3.142mm, diametrical pitch 25.4
  • Maximum output 600mVpp/V… Read More

NVE ABT020-03E TMR Gear-Tooth Sensor

nve abt020-03e tmr gear tooth sensor
  • Dual-channel TMR gear-tooth sensor for module 2 gears
  • Target gear pitch 6.283mm, diametrical pitch 12.7
  • Maximum output 600mVpp/V… Read More

Coto RR123-1H02-612 Series

TMR Digital Push-Pull Magnetic Sensor-Switch
  • TMR digital push-pull magnetic sensor
  • Lower power consumption of 20nA
  • Omnipolar push-pull response
  • Supply voltage range from 1.0V to… Read More

Coto RR112-1G42/1G43 Series

TMR Analog Magnetic Sensor
  • TMR analog magnetic sensor
  • Operate sensitivity from -80 G to +80 G (typical)
  • Average supply current of 1.5μA at… Read More

Coto RR132-2E22/2E23 Series

TMR Digital Open-Drain Magnetic Sensor
  • TMR digital open-drain magnetic sensor
  • Operate sensitivity of -15 G (typical)
  • Average supply current of 85nA at 3V (typical)
  • … Read More

Coto RR132-2E32/2E33 Series

TMR Digital Open-Drain Magnetic Sensor
  • TMR digital open-drain magnetic sensor
  • Operate sensitivity of -15 G (typical)
  • Average supply current of 110nA at 3V (typical)
  • … Read More

Coto RR132-1B12/1B13 Series

TMR Digital Open-Drain Magnetic Sensor
  • TMR digital open-drain magnetic sensor
  • Operate sensitivity of 30 G (typical)
  • Average supply current of 70nA at 3V (typical)
  • … Read More

Coto RR133-1E83-511 Series

TMR Digital Magnetic Sensor
  • TMR ​ultra-low power digital magnetic sensor
  • Omnipolar… Read More

NVE AAT001-10E

Tunnelling Magnetoresistance (TMR) technology
  • Tunnelling Magnetoresistance (TMR) technology
  • Supply voltage +5.5V
  • Miniature TDFN6 package
  • Microwatt power consumption
  • High output signal without amplification
  • … Read More

NVE AAT003-10E

Surface-mount tunnelling magnetoresistance (TMR) angle sensor
  • Tunnelling Magnetoresistance (TMR) technology
  • Supply voltage +5.5V
  • Miniature TDFN6 package
  • Low power consumption
  • High output signal without amplification
  • Sine… Read More

NVE AAT006-10E

Surface-mount tunnelling magnetoresistance (TMR) angle sensor
  • Tunnelling Magnetoresistance (TMR) technology
  • Supply voltage +5.5V
  • Miniature TDFN6 package
  • Low power consumption
  • High output signal without amplification
  • Sine and cosine and outputs
  • Immune… Read More
