Space Approved Pressure Sensors

  • ICS-NH

ICS-NH C10 Type

High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel full-bridge construction.
  • ICS-NH

ICS-NH C8 Type

High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V output, 2mV/V nominal span and temperature variants up to -65ยฐC to +260ยฐC.
  • ICS-NH

ICS-NH DPH100 Series

SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output, 316L stainless steel media contact and -65ยฐC to +170ยฐC operation.

ICS-NH MPT4A Miniature Pressure Transmitter

  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0โ€“30 psi up to 0โ€“3,000 psi
  • Ratiometric output 0.5โ€“4.5 V @ 5 V supply
  • Supply voltage 4.5โ€“5.5 V DC
  • Fast response time 0.1 ms
  • Stainless steel construction with multiple connection options
  • ICS-NH

ICS-NH MPT6 Series

Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC supply. Offers voltage, current, bridge, IยฒC and SPI outputs with DO-160 Cat. H/R vibration testing
  • ICS-NH

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from 2 bar to 2,000 bar
  • Operating temperature from โˆ’200 ยฐC to +260 ยฐC
  • Multiple output options including voltage, current and digital
  • Fully welded stainless steel construction
  • Vibration tested to DO-160 Cat. H and R
  • ICS-NH

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from 0โ€“30 psig up to 0โ€“8,700 psig
  • Ratiometric pressure output 0.5โ€“4.5 V @ 5 V supply
  • Integrated PT1000 2-wire temperature output
  • Operating temperature range โˆ’40 ยฐC to +150 ยฐC (approx.)
  • Stainless steel housing with multiple connection options
  • Paine

Emerson Paineโ„ข 212-30-010-0500

  • Miniature satellite and space pressure transmitter
  • Pressure range of 0 – 500 PSIA
  • All welded stainless steel construction
  • Input voltage of ยฑ12 – 15VDC
  • Temperature range of โˆ’40ยฐC to +60ยฐC
  • Output voltage of 0.1 to 5.1VDC
  • Accuracy of ยฑ1.5%
Emerson Paineโ„ข 212-30-010-0500
  • Paine

Emerson Paineโ„ข 213 Heritage-Satellite Series Pressure Transmitter

Emerson Paine 213 Heritage-Satellite Series Pressure Transmitter
  • Space-qualified amplified pressure transmitter
  • Pressure ranges from 0-500 PSIA to 0-5000 PSIA
  • Operating temperature range โˆ’29 ยฐC to +70 ยฐC
  • Accuracy of ยฑ1.5% of full scale
  • 0-5Vdc output with low ripple
  • Designed to EEE INST-002/MSFCSTD-3012 Level 2 standards
  • Paine

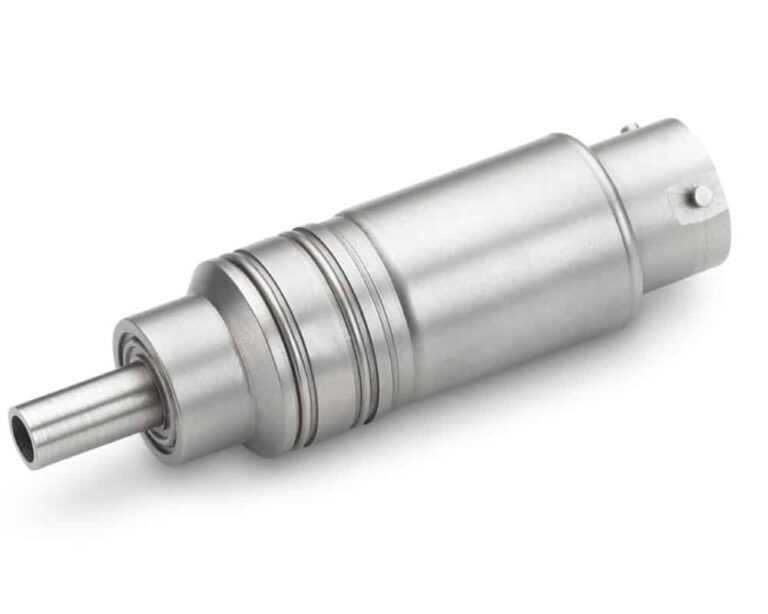

Emerson Paineโ„ข 212-35-070-05K0

  • Miniature satellite and space pressure transmitter
  • Pressure range of 0 – 5,000 PSIA
  • All welded stainless steel construction
  • Input voltage of ยฑ12 – 15VDC
  • Temperature range of โˆ’40ยฐC to +60ยฐC
  • Output voltage of 0.1 to 5.1VDC
  • Accuracy of ยฑ1.5%
Emerson Paineโ„ข 212-35-070-05K0

ICS-NH C10 Type

High Precision Pressure Sensor C10 Type
High precision thin film pressure sensor with 10 mm cup diameter, 1.6 bar to 2,500 bar ranges and stainless steel…Read More

ICS-NH C8 Type

High Precision Pressure Sensor
High precision thin film pressure sensor with 8mm cup diameter and 25 to 800 bar pressure ranges. Features raw mV/V…Read More

ICS-NH DPH100 Series

Differential pressure sensor
SOI differential pressure sensor with 0 to 400kPa range, 300 bar static pressure capability and <1ms response. Features 75mVDC output,…Read More

ICS-NH MPT4A Miniature Pressure Transmitter

MPT4A Miniature Pressure Transmitter MPT4A
  • Miniature pressure transmitter with extremely compact design
  • Pressure ranges from 0โ€“30…Read More

ICS-NH MPT6 Series

Actively compensated miniature pressure transmitter
Miniature actively compensated pressure transmitter with 0 to 30 psi to 0 to 15,000 psi ranges and 5 to 32VDC…Read More

ICS-NH MPT6C Series Cryogenic Pressure Transmitter

ICS-NH MPT6C Cryogenic Pressure Transmitter
  • Cryogenic pressure transmitter for extreme temperature applications
  • Pressure ranges from <strong…Read More

ICS-NH PTM-10 Miniature Pressure Temperature Transmitter

ICS-NH PTM-10 Pressure Temperature Transmitter
  • Combined pressure and temperature transmitter in miniature design
  • Pressure ranges from…Read More

Emerson Paineโ„ข 212-30-010-0500

Druckmessumformer der Miniatur-Satelliten-Serie
  • Miniature satellite and space pressure transmitter
  • Pressure range of 0 – 500 PSIA
  • All welded stainless steel construction
  • …Read More

Emerson Paineโ„ข 213 Heritage-Satellite Series Pressure Transmitter

Heritage-Satellite Series Pressure Transmitter
  • Space-qualified amplified pressure transmitter
  • Pressure ranges from 0-500 PSIA to 0-5000 PSIA
  • Operating temperature range โˆ’29 ยฐC to +70…Read More

Emerson Paineโ„ข 212-35-070-05K0

Druckmessumformer der Miniatur-Satelliten-Serie
  • Miniature satellite and space pressure transmitter
  • Pressure range of 0 – 5,000 PSIA
  • All welded stainless steel construction
  • …Read More
