Healthcare & Medical

A variety of analog and digital magnetic sensors and digital isolators based on TMR (Tunelling Magnetoresistance) and GMR (Giant Magnetoresistance) technology, available in ultra miniature packages suitable even for portable and implantable medical devices

Range of high quality high voltage relays with rhodium or tungsten contacts, achieving extremely low contact resistance or high switching voltages, respectively

MEMS sensing elements and pressure sensors and general purpose load cells offering high quality, robust build and excellent characteristics
Range of surface-mount chip ultra precision as well as high ohmic resistors, available in virtually any resistance value within their range, and including non-magnetic models, high-temperature models, resistors with no organics etc.

Healthcare & Medical

Merit Sensor MSS100 Series

Fully compensated pressure transducer.
Compact and lightweight design.
Easy electrical connection via Molex connector.
Designed for medical, pharmaceutical, and bio-processing applications.
Pressure range 5 to 100 psi (compound, vacuum, absolute, or gauge).
Operating temperature 10°C to 50°C.

Merit Sensor RSH Series

Uncompensated pressure sensor with MEMS-die-on-pressure-port design.
Compatible with wet and harsh media.
Suitable for broad temperature and pressure ranges.
Pressure range 0 to 500 psi (absolute or gauge).
Operating temperature range -40°C to 150°C

Merit Sensor TRVF Series

Fully compensated pressure sensor.
Wetted materials including silicon, glass, and ceramic enhances compatibility with harsh media.
Compact and lightweight, weighing approximately 1.35 grams.
Designed to measure pressure in air, gases, and liquids.
Pressure Range available from 1 to 300 psi (absolute or gauge).
Operating temperature range between -40°C to 150°C.

SRT Microcéramique Radial Capacitor Dipped High Voltage

High voltage radial dipped capacitors
Capacitance from 0.4pF to 47µF
TCR options from ±30ppm/°C (NP0) to ±15% (X7R)
Voltages from 1kV to 15kV
IR 25°C/Un ≥10⁵MΩ or 1000Ω-Farad whichever is less *
Dielectrics: NP0, N2T, BX, 2C1, X7R
Operating temperatures from -55°C to +125°C

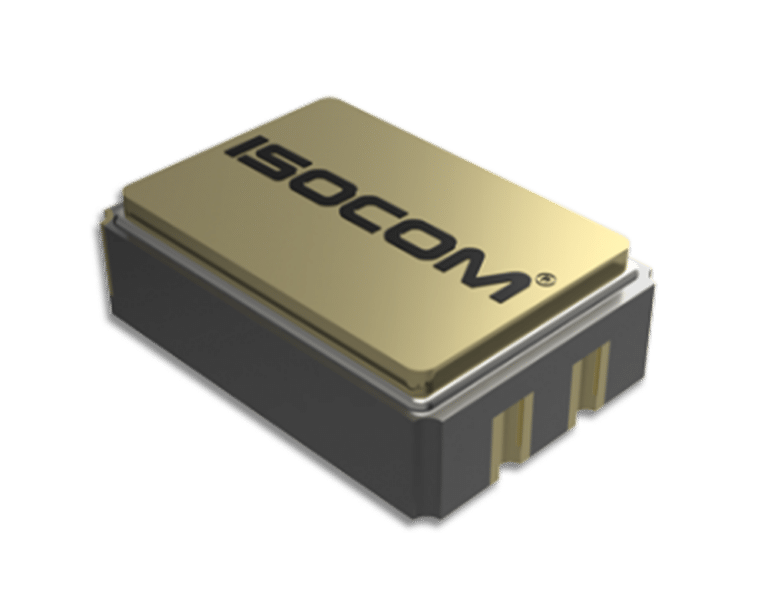

ISOCOM CH101

Single-channel, radiation-hardened optocoupler for space applications
Surface mount 4-pin package
High current transfer ratio
Withstands up to 1,000V DC isolation
Ionizing dose tested to 150 Krad(Si)

ISOCOM CS201

Single-channel optocoupler for space applications
Hermetically sealed 6-pin DIP package
High current transfer ratio
Withstands 1,500V DC isolation
Ionising dose tested to 150 Krad(Si) and
Tested displacement damage to 1 MEV x 10¹³

ISOCOM CS600

Single-channel, high-speed optocoupler for space and isolation applications
Hermetically sealed 8-pin DIP package
High common mode rejection (1,000V/μs)
Withstands 1,500V DC and 2,500V DC isolation
Radiation tested to 1 Mrad(Si) and 1 MEV x 10¹³

ISOCOM CSM100

Single-channel high-gain optocoupler for space applications
Hermetically sealed 4-pin surface mount package
Current transfer ratio up to 1,500%
Low input current requirement of 0.5mA
Withstands up to 1,000V DC isolation

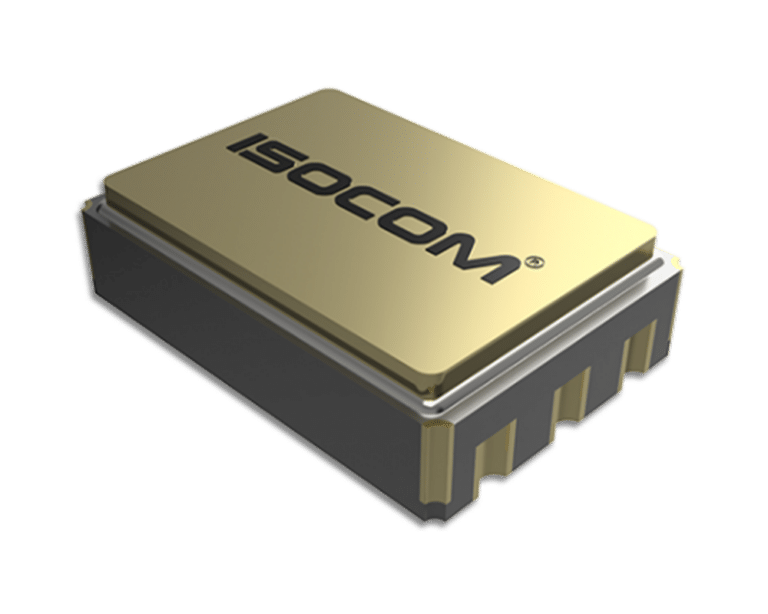

ISOCOM CSM1200

Single-channel optocoupler for space applications
Hermetically sealed LCC-6 package
High current transfer ratio
Low input requirements
Withstands up to 1,000V DC isolation

ISOCOM CSM1224

Single channel optocoupler for high-reliability applications
Hermetically sealed 6-pin package
High current transfer ratio
Withstands up to 1,000V DC isolation
Radiation tested to 150 Krad(Si)

ISOCOM CSM160

Dual-channel or Quad-channel, high-gain optocoupler
Hermetically sealed 16-pin flatpack package
Current transfer ratio typically 1,000%
Low input requirement of 0.5mA
Withstands 1,500V DC
Radiation-tolerant

ISOCOM CSM166

Dual-channel or Quad-channel, high-reliability optocoupler for space
Hermetically sealed 16-pin flatpack package
High current transfer ratio
Radiation tolerance of 150 Krad(Si)
Withstands up to 1,500V DC isolation

ISOCOM IS49

Single-channel, hermetically sealed optocoupler
LCC-6 package design
Maximum continuous forward current: 50mA
Input-to-Output isolation voltage: 1,000V DC
Suitable for isolating high-speed digital or analog signals

SRT Microcéramique Low Voltage High Capacitance X7R Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 47µF
TCR of ±15% with 0Vdc applied
Voltages from 4V to 100V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X7R
Operating temperatures of -55°C to +125°C **

SRT Microcéramique Low Voltage High Capacitance X5R Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 330µF
TCR of ±15% with 0Vdc applied
Voltages from 4V to 50V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X5R
Operating temperatures of -55°C, + 85°C

SRT Microcéramique Low Voltage High Capacitance X6S Capacitors

High capacitance SMD capacitors
Capacitance from 1.0µF to 330µF
TCR of ±22% with 0Vdc applied
Voltages from 2.5V to 50V
IR 25°C/Un 10⁴MΩ / 500Ω-Farad whichever is less *
Dielectric X6S
Operating temperatures of -55°C, + 105°C
