Temperature Transducers and Probes

Core Sensors CS20 Series

Industrial temperature transmitter
RTD sensor type, PT100, Class B
Media temperature range of -40°C up to +200°C *
Operating temperature range of -40°C up to +85°C
Total error at RT & FS of ≤±1%
Maximum pressure of 5,000 PSI
Amplified 4-20mA or 1-5V output signal

Industrial temperature transmitter
RTD sensor type, PT100, Class B
Media temperature range of -40°C up to +200°C *
Operating temperature range of -40°C up to +85°C
Total error at RT & FS of ≤±1%
Maximum pressure of 5,000 PSI
Amplified 4-20mA or 1-5V output signal

Cynergy3 ITT Programmable Temperature Probe series

Programmable temperature probes
Selection of thermocouple and RTD inputs
Output configurable to desired temperature range
1/4″ BSP connection

Programmable temperature probes
Selection of thermocouple and RTD inputs
Output configurable to desired temperature range
1/4″ BSP connection

Cynergy3 ITTU Programmable Temperature Probe series

Programmable temperature probes
Selection of thermocouple and RTD inputs
Output configurable to desired temperature range
1/4″ NPT connection

Programmable temperature probes
Selection of thermocouple and RTD inputs
Output configurable to desired temperature range
1/4″ NPT connection

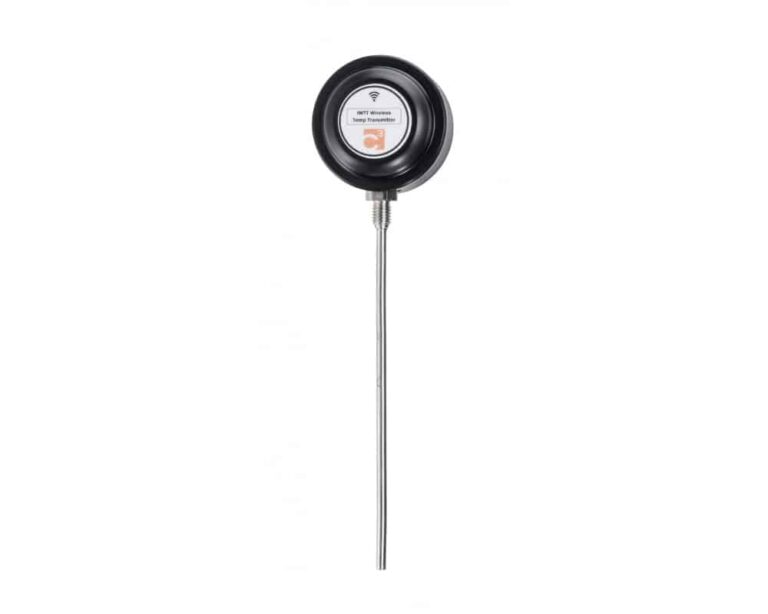

Cynergy3 IWTT Wireless Temperature Transducer Series

Industrial Wireless Temperature Transducer
Selection of thermocouple (J or K type) or RTD sensor inptu
Up to 750m line-of-sight range (depending on receiver used)
Excellent media compatibility
5 year battery life with 10s transmission update rate
Single or five channels available
Head connection via 1/4″ BSP
Economical solution

Industrial Wireless Temperature Transducer
Selection of thermocouple (J or K type) or RTD sensor inptu
Up to 750m line-of-sight range (depending on receiver used)
Excellent media compatibility
5 year battery life with 10s transmission update rate
Single or five channels available
Head connection via 1/4″ BSP
Economical solution

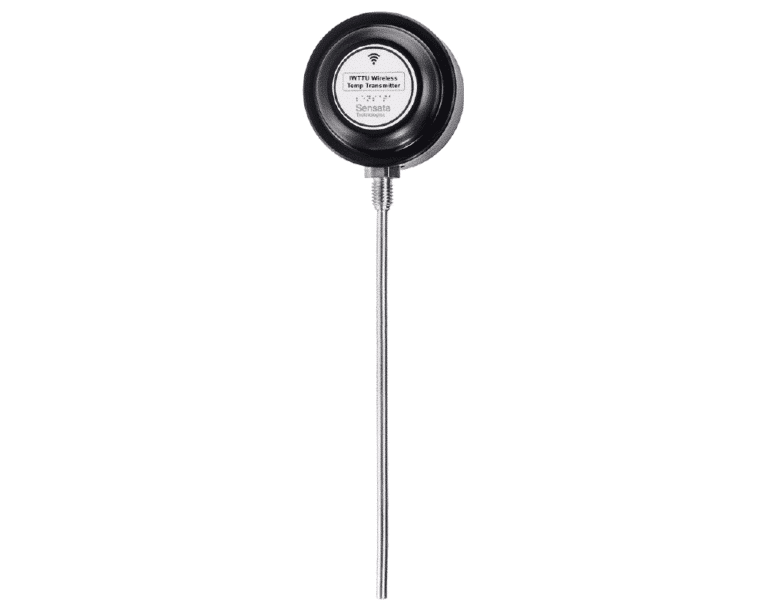

Cynergy3 IWTTU Wireless Temperature Transducer Series

Industrial Wireless Temperature Transducer
Selection of thermocouple (J or K type) or RTD sensor inptu
Up to 750m line-of-sight range (depending on receiver used)
Excellent media compatibility
5 year battery life with 10s transmission update rate
Single or five channels available
Head connection via 1/4″ NPT
Economical solution

Industrial Wireless Temperature Transducer
Selection of thermocouple (J or K type) or RTD sensor inptu
Up to 750m line-of-sight range (depending on receiver used)
Excellent media compatibility
5 year battery life with 10s transmission update rate
Single or five channels available
Head connection via 1/4″ NPT
Economical solution

Manufacturers

Looking for Temperature Transducers and Probes?

Looking for Temperature Transducers and Probes?

The below manufacturers are all of our authorised partners that produce Temperature Transducers and Probes or related products.

Temperature Transducers and Probes

We offer a select range of wired and wireless temperature transducers and probes from Core Sensors and Cynergy 3.

This selection covers a wide range of usage applications within the industrial sector. The CS20 series industrial temperature transmitter is designed for fluid temperature measurement applications. A 316L SS probe and thread area allow for installation in a wide range of process liquids and gasses. An internal amplifier offers a 4-20mA or voltage output signal to reduce installation time.

Cynergy3 temperature sensors are offered as part of the Cynergy3 Industrial Sensor family including both wired and wireless solutions. Wireless technology is convenient and growing in popularity. We offer the same precision in our wireless products as you’d expect in the wired sensors. The versatility of these products for use ‘in the field’ makes them ideal for many industrial applications including monitoring temperatures at solar farms.
