High Speed digital isolators

The IL717VE high voltage, high speed digital isolator from NVE is a four channel CMOS device with typical data rate of 110Mbps. It features an isolation voltage of 6kV_rms and 1kV_rms working voltage per VDE V 0884-10. The IL717VE isolators are available in an 16-pin SOIC package and are specified over a high temperature range of −40°C to +125°C. These isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. The IL717VE series from NVE are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL717 series, including IL717VE is UL1577 recognised and certified to VDE V 0884-10.

• High speed digital isolator

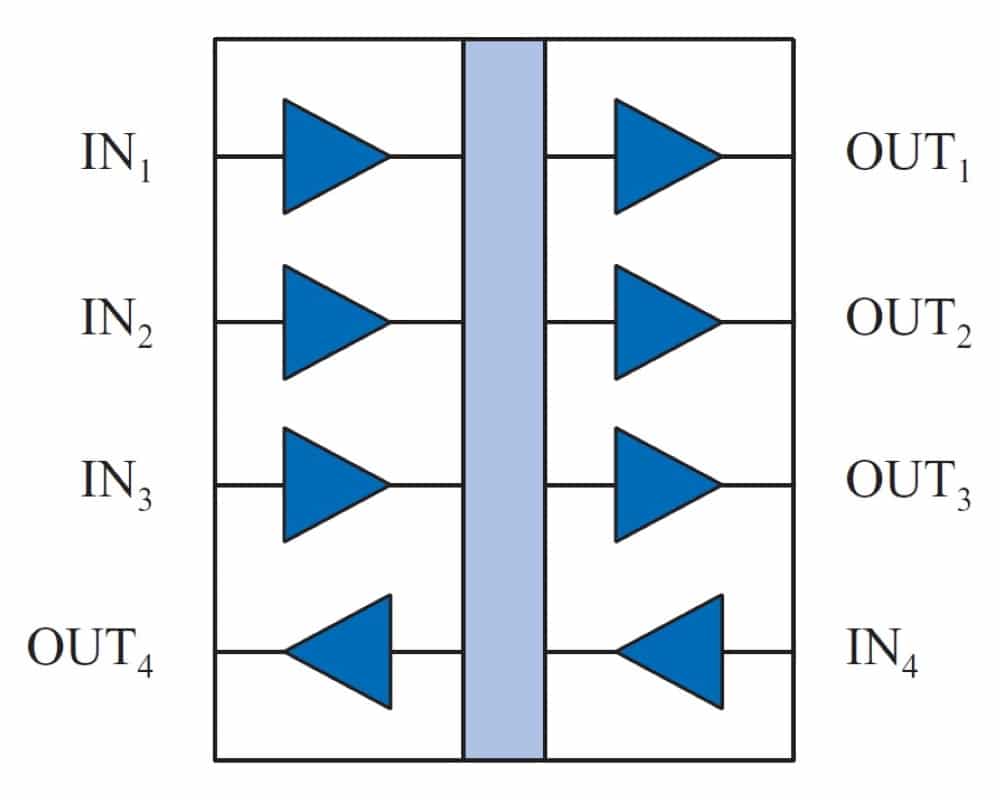

• Multidirectional four channel isolation (4 x transmit)
• High speed at 110 Mbps typical
• Isolation voltage of 6kV_rms
• Working voltage of 1kV_rms per VDE V 0884-10
• High operating temperature range of −40°C to +125°C
• 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
• No carrier or clock for low EMI emissions and susceptibility
• Typical quiescent current 0.0012A/channel
• Typical pulse width distortion of 2ns (at 5V)
• Pulse jitter 100ps
• Channel to channel skew 2ns
• Typical propagation delay of 10ns
• Barrier life of 44000 years
• Excellent magnetic immunity
• VDE V 0884-10 certified; UL 1577 recognised
• 16-pin, 0.3″ SOIC package

The NVE IL717VE series symmetric magnetic coupling barrier provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.

Typical applications for the IL717VE series include:

• Digital fieldbus
• ADCs and DACs
• Ground loop elimination
• Multiplex data transmission
• Board-to-board communication
• Logic level shifting
• Equipment covered under IEC 61010-1 Edition 3
• 5 kV_RMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL717 high speed digital isolator series including the IL717VE:
