Susumu SHR6432 Series

Susumu SHR6432 Series

The SHR6432 series thin film precision low resistance chip resistors from Susumu offer the design engineers precision with 4 separated voltage terminals, low resistance tolerance of ±0.5% (D) and resistance values ranging from 3Ω to 8Ω. The SHR6432 series from Susumu have a resistance error with self heating of ±100ppm(0.1W to 0.5W) and an operating temperature from 0°C to +60°C with a chip size of 2512.

  • Surface-mount 4 terminal thin film chip resistor
  • Resistance values range from 3Ω to 8Ω
  • Power rating of 0.5W
  • Tolerance value ±0.5% (D),
  • TCR value ±5 ppm/°C (V)
  • Chip size of 2512
  • Operating temperature range of 0°C to +60°C

Susumu SHR6432 series thin film precision low resistance chip resistors are ideal for the following applications:

  • Electronic scales
  • Test equipment
  • Measuring equipment

The below table gives the full specifications of the Susumu SHR643 Series:

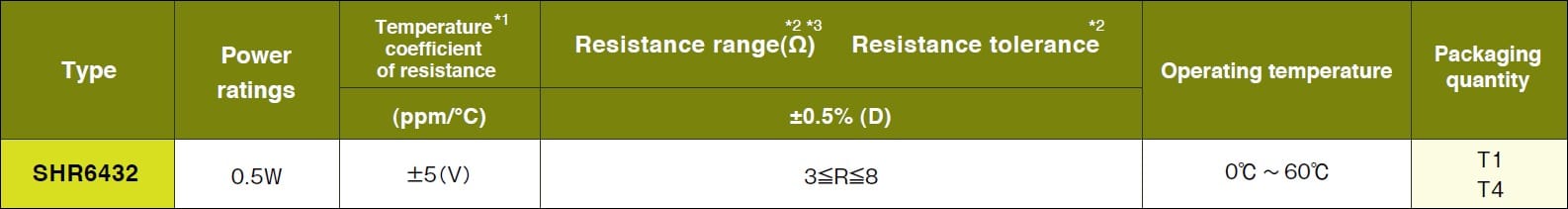

Susumu SHR6432 Specifications

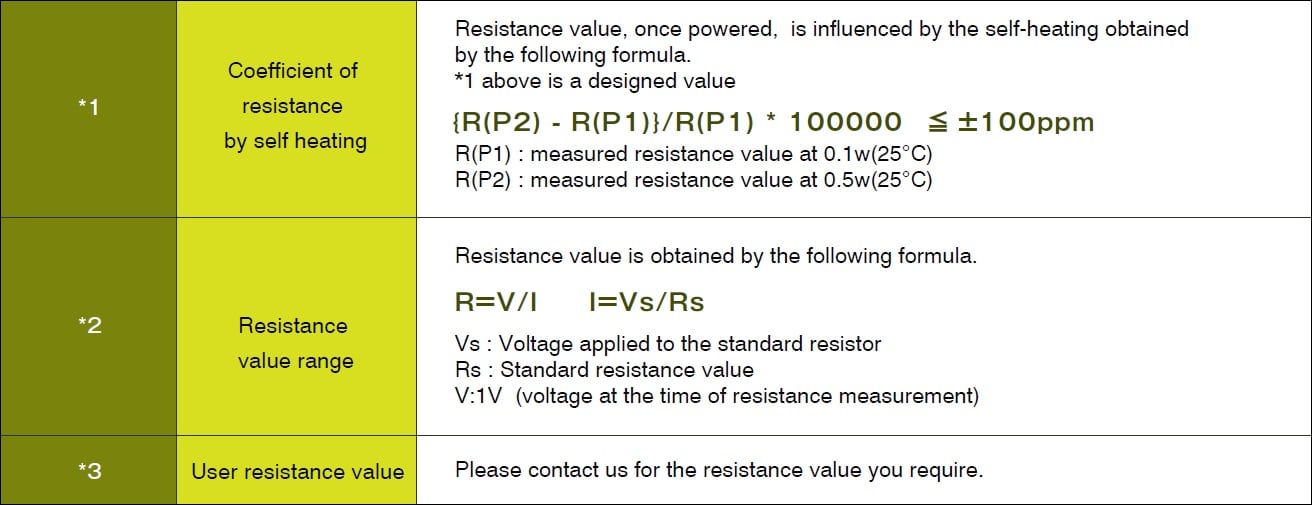

Please see below further information on the above specification table

Further Information
Specifications
Additional Features
  • Surface-mount 4 terminal thin film precision low resistance chip resistor
  • Operating temperature range of 0°C to +60°C
  • Resistance error with self heating of ±100ppm(0.1W to 0.5W)
Maximum Power Rating 0.5W
Maximum Resistance
Minimum Resistance
Package/Size 2512
TCR ±5 ppm/°C (V)
Tolerance ±0.5% (D)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Susumu SHR precision low resistance thin film chip resistor series datasheet
PDF Document Susumu product selection guide and handling care information
PDF Document Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
