Susumu SHR6432 Series

Susumu SHR6432 Series
Susumu SHR6432 Series
Susumu SHR6432 Series
  • Susumu

Product Features

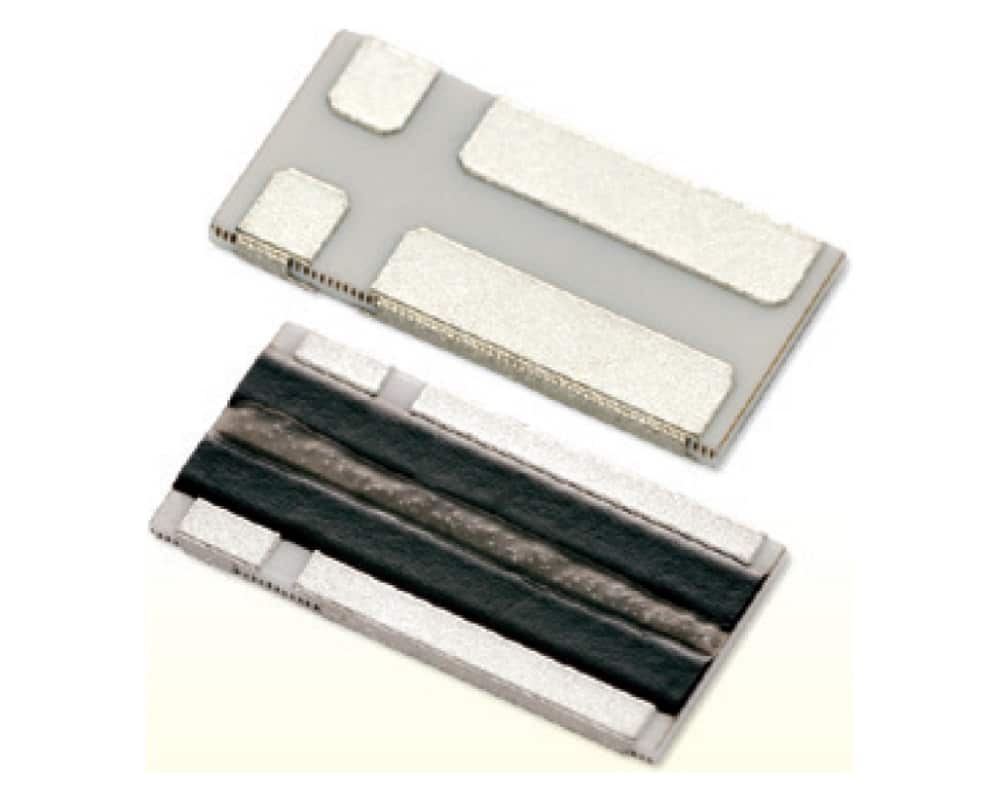

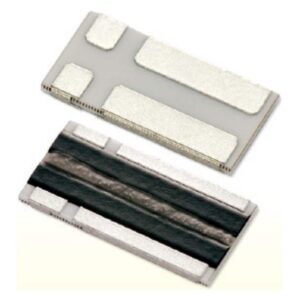

  • Surface-mount 4 terminal thin film precision low resistance chip resistor
  • Temperature range of 0°C to +60°C
  • Resistance error with self heating of ±100ppm(0.1W to 0.5W)

Applications

  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The SHR6432 series thin film precision low resistance chip resistors from Susumu offer the design engineers precision with 4 separated voltage terminals, low resistance tolerance of ±0.5% (D) and resistance values ranging from 3Ω to 8Ω. The SHR6432 series from Susumu have a resistance error with self heating of ±100ppm(0.1W to 0.5W) and an operating temperature from 0°C to +60°C with a chip size of 2512.

  • Surface-mount 4 terminal thin film chip resistor
  • Resistance values range from 3Ω to 8Ω
  • Power rating of 0.5W
  • Tolerance value ±0.5% (D),
  • TCR value ±5 ppm/°C (V)
  • Chip size of 2512
  • Temperature range of 0°C to +60°C

Susumu SHR6432 series thin film precision low resistance chip resistors are ideal for the following applications:

  • Electronic scales
  • Test equipment
  • Measuring equipment

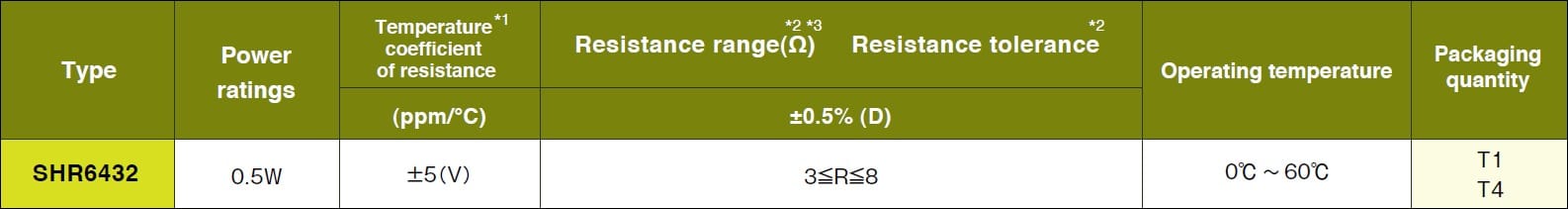

The below table gives the full specifications of the Susumu SHR643 Series:

Susumu SHR6432 Specifications

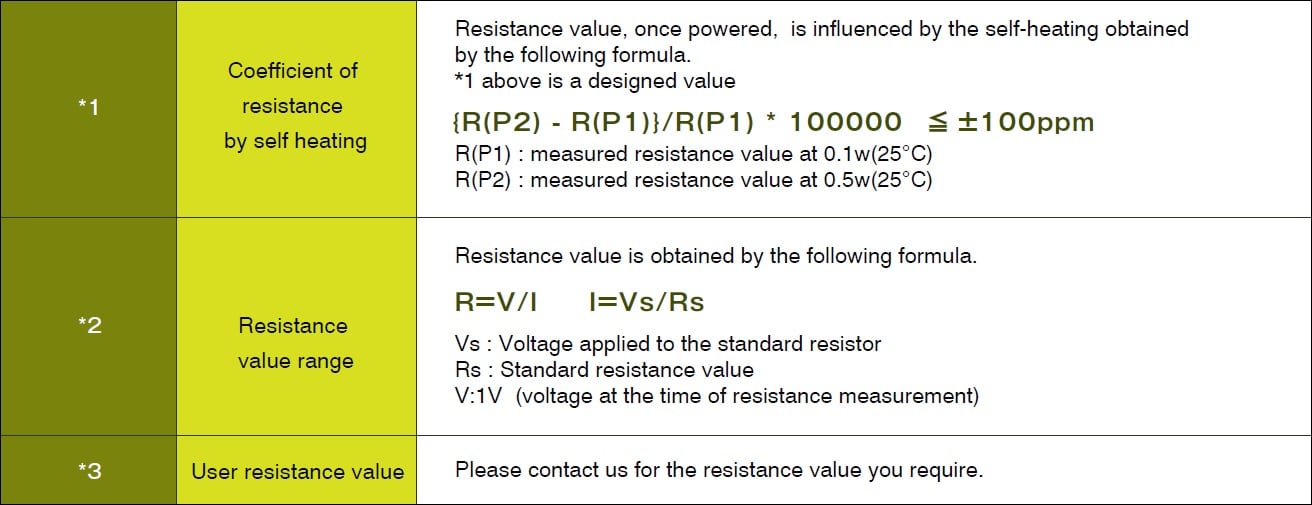

Please see below further information on the above specification table

Further Information

Specifications

Weight 0.00000 kg

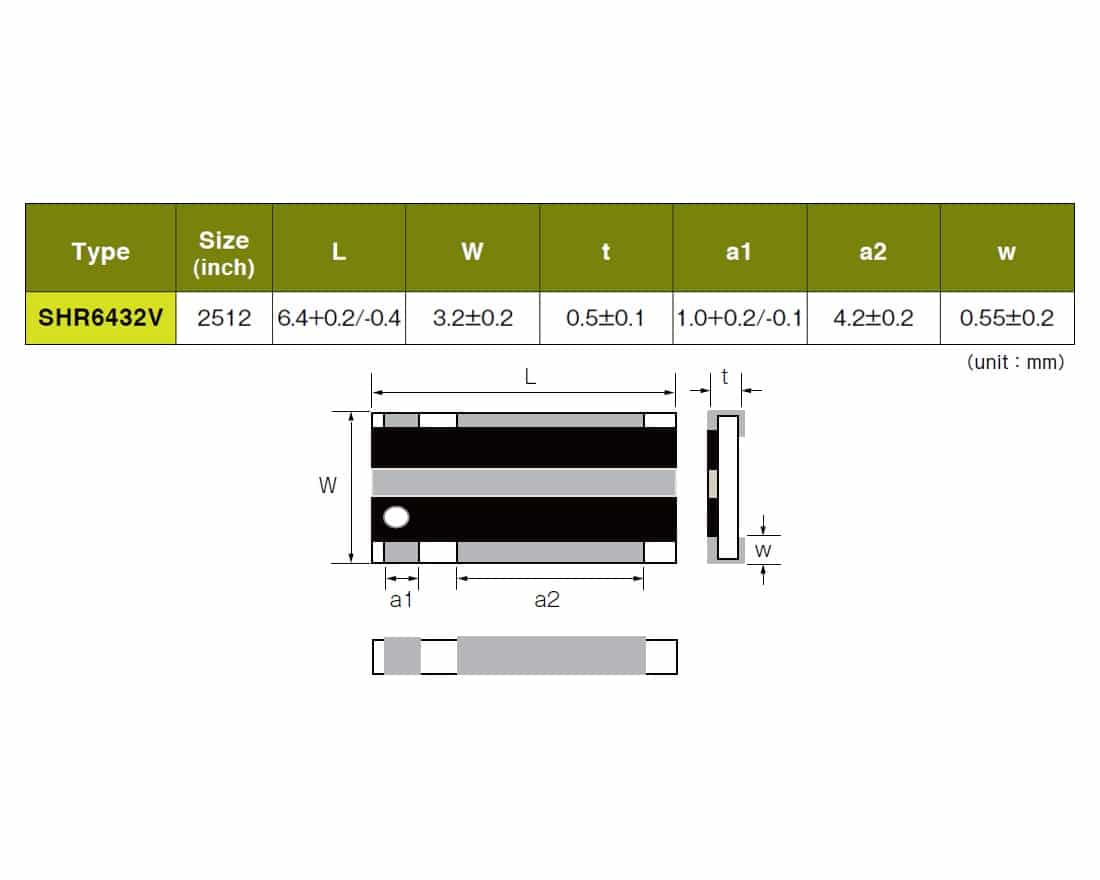

Dimensions 6.40 × 3.20 × 0.50 mm
Minimum Resistance

Series / Model

Maximum Resistance

Temperature Coefficient

Power Rating

Tolerance
