Susumu URG6432 Series

Susumu URG6432 Series

The URG6432 series of ultra precision thin film chip resistors from Susumu offer the designer an enhanced level of precision and high reliability. Similar in construction to the RG series, the URG has a double layer of passivation to eliminate water ingress to the thin film element, which makes this SMD resistor ideal for use in high temperature and extremely humid conditions. The resistance values range from 100Ω to 200kΩ with a voltage rating of 300V and a chip size of 2512. The URG6432 series thin film structure enables low noise and anti-sulfur as well as the resistors having long term stability with inorganic passivation.

  • Surface-mount ultra precision thin film chip resistor
  • Resistance range between 100Ω and 200kΩ available
  • Resistance value series E-24 and E-96
  • Power rating of 0.75W
  • Tolerance values available ±0.01% (L), ±0.02% (P), ±0.05% (W),±0.1% (B) and ±0.5% (D)
  • TCR values available ±1 ppm/°C (X) and ±2 ppm/°C (W) (−20°C to +125°C)
  • Maximum voltage of 300V
  • Operating temperature range of −55°C to +155°C
  • Thin film structure enabling low noise and anti-sulfur
  • Long term stability with inorganic passivation
  • Chip size of 2512
  • AEC-Q200 compliant

Susumu URG6432 series ultra precision thin film chip resistors are ideal for the following applications:

  • Industrial measurement
  • Electrical scales
  • High precision sensors
  • Medical electronics

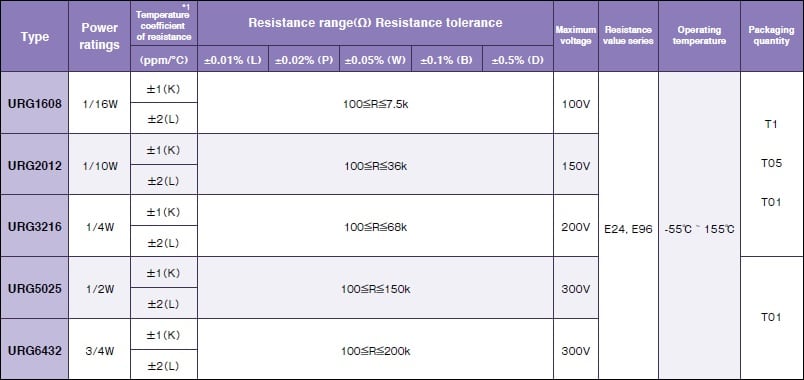

The below table gives the full specifications of the Susumu URG series including the URG6432:

Susumu URG6432 Specifications

*1 Applicable TCR range −20°C to +125°C
Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values

Specifications
Additional Features
  • Surface-mount ultra precision thin film chip resistor
  • Operating temperature range of −55°C to +155°C
  • Maximum voltage of 300V
  • Thin film structure enabling low noise and anti-sulfur
  • AEC-Q200 compliant
Maximum Power Rating 0.75W
Maximum Resistance 200kΩ
Minimum Resistance 100Ω
Package/Size 2512
TCR
  • ±1 ppm/°C (X)
  • ±2 ppm/°C (W)
Tolerance
  • ±0.01% (L)
  • ±0.02% (P)
  • ±0.05% (W)
  • ±0.1% (B)
  • ±0.5% (D)

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
PDF Document Susumu URG ultra precision thin film chip resistor series datasheet
PDF Document Susumu product selection guide and handling care information
PDF Document Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
