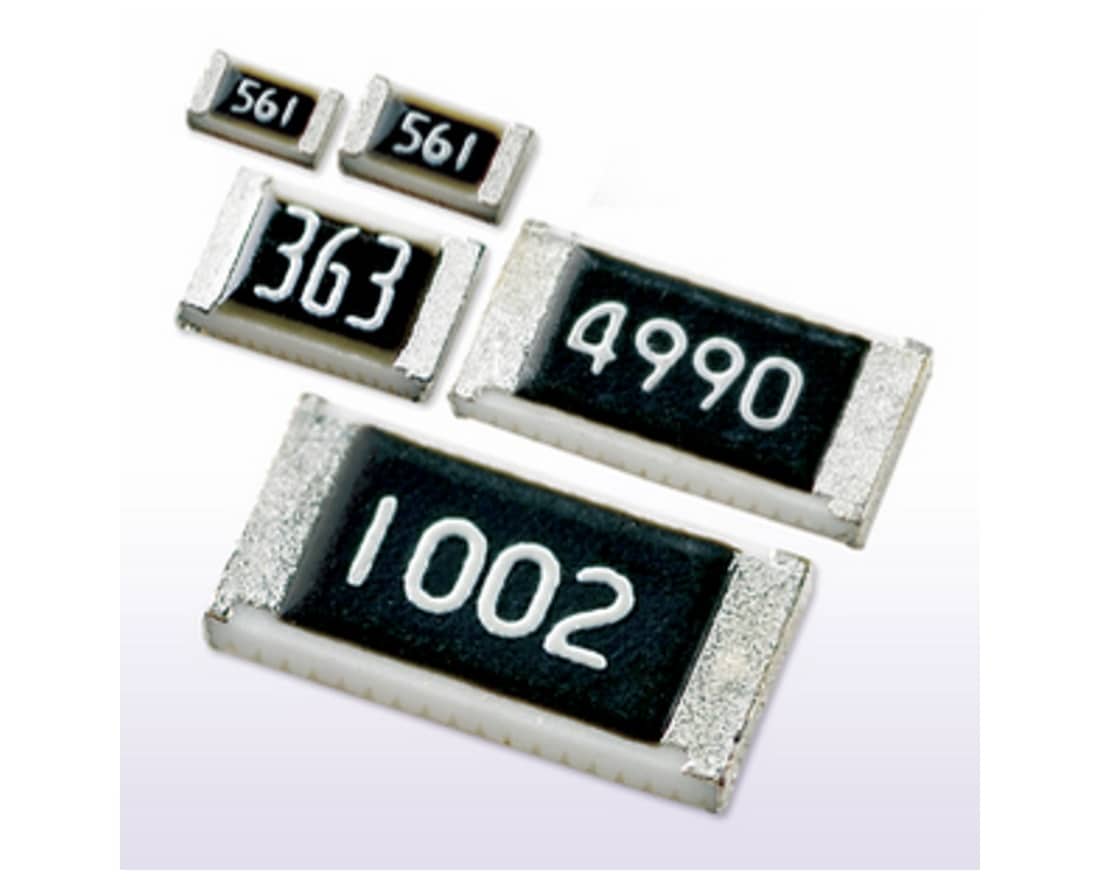

Susumu URG5025 Series

Susumu URG5025 Series
Susumu URG5025 Series
Susumu URG5025 Series
  • Susumu

Product Features

  • Surface-mount ultra precision thin film chip resistor
  • Temperature range of −55°C to +155°C
  • Maximum voltage of 300V
  • Thin film structure enabling low noise, anti-sulfur
  • AEC-Q200 compliant.
  • Automotive

Applications

  • Medical
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The URG5025 series of ultra precision thin film chip resistors from Susumu offer the designer an enhanced level of precision and high reliability. Similar in construction to the RG series, the URG has a double layer of passivation to eliminate water ingress to the thin film element, which makes this SMD resistor ideal for use in high temperature and extremely humid conditions. The resistance values range from 100Ω to 150kΩ with a voltage rating of 300V and a chip size of 2010. The URG5025 series thin film structure enables low noise and anti-sulfur as well as the resistors having long term stability with inorganic passivation.

  • Surface-mount ultra precision thin film chip resistor
  • Resistance range of between 100Ω to 150kΩ
  • Resistance value series E-24 and E-96
  • Power rating of 0.5W
  • Tolerance values available ±0.01% (L), ±0.02% (P), ±0.05% (W), ±0.1% (B) and ±0.5% (D)
  • TCR values available ±1 ppm/°C (X) and ±2 ppm/°C (W) (−20°C to +125°C)
  • Maximum voltage of 300V
  • Temperature range of −55°C to +155°C
  • Thin film structure enabling low noise and anti-sulfur
  • Long term stability with inorganic passivation
  • Chip size of 2010
  • AEC-Q200 compliant



Susumu URG5025 series ultra precision thin film chip resistors are ideal for the following applications:

  • Industrial measurement
  • Electrical scales
  • High precision sensors
  • Medical electronics



The below table gives the full specifications of the Susumu URG series including the URG5025:

Susumu URG5025 Specifications
*1 Applicable TCR range −20°C to +125°C

Please see the Susumu selection guide in the Technical Library tab for the E-24 and E-96 values





Specifications

Weight 0.00000 kg
Dimensions 5.00 × 2.50 × 0.45 mm
Minimum Resistance

Maximum Resistance

Series / Model

Temperature Coefficient

,

Power Rating

Tolerance

, , , ,

Package / Size
