Sensors

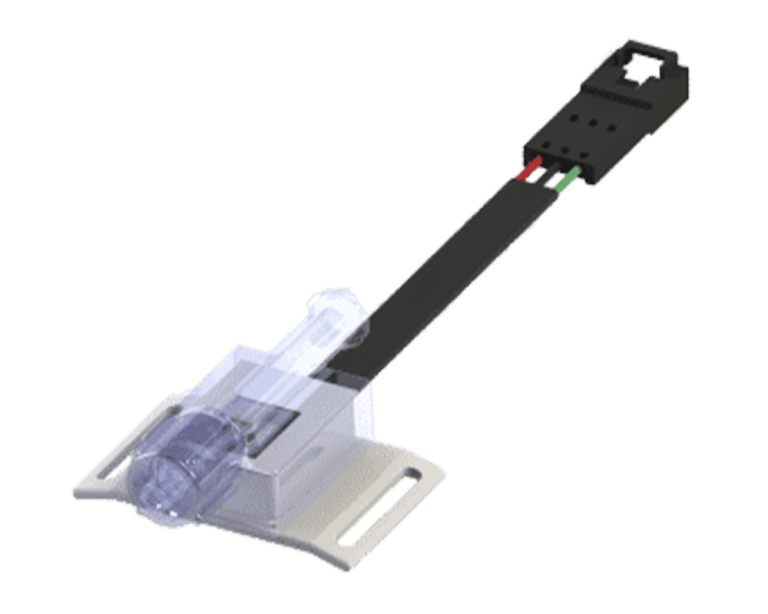

Merit Sensor MSS100 Series

Fully compensated pressure transducer.
Compact and lightweight design.
Easy electrical connection via Molex connector.
Designed for medical, pharmaceutical, and bio-processing applications.
Pressure range 5 to 100 psi (compound, vacuum, absolute, or gauge).
Operating temperature 10°C to 50°C.

Merit Sensor RSH Series

Uncompensated pressure sensor with MEMS-die-on-pressure-port design.
Compatible with wet and harsh media.
Suitable for broad temperature and pressure ranges.
Pressure range 0 to 500 psi (absolute or gauge).
Operating temperature range -40°C to 150°C

Merit Sensor TRVF Series

Fully compensated pressure sensor.
Wetted materials including silicon, glass, and ceramic enhances compatibility with harsh media.
Compact and lightweight, weighing approximately 1.35 grams.
Designed to measure pressure in air, gases, and liquids.
Pressure Range available from 1 to 300 psi (absolute or gauge).
Operating temperature range between -40°C to 150°C.

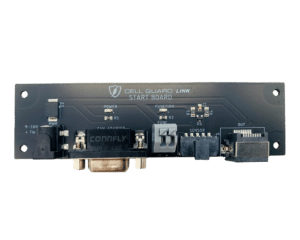

Nano Development Kit

The Nano Development Kit can be used alongside 3 environmental sensors: Cell Guard, H Guard and Air Wise. In order to quickly plug in and evaluate your sensor, use this Development Board which has all the necessary cables to plug into a CAN adaptor.

Includes:

Development Board
Power Supply
Sensor Cables
DB9 Cable

Sensors not included

Metis Engineering Cell Guard

Cell Guard is a CAN-based environmental sensor for use with Battery Packs in Energy Storage Systems and Electric Vehicles. It measures absolute pressure, air temperature, VOCs, absolute humidity, relative humidity, dew point temperature, and shock load and duration. For quick desktop analysis, use alongside the Cell Guard Development Kit.

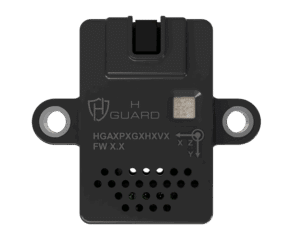

Metis Engineering H Guard

H Guard is a CAN based sensor that can measure absolute pressure, air temperature, H2 (Hydrogen), absolute air water content, relative humidity, dew point temperature and 3 axis acceleration.

Absolute Pressure: 0.3 to 1.2 Bar
Air Temperature: -40°C to +125°C
Relative Humidity: 0% to 100%
Dew Point Temperature: 0 to 100°C
Accelerometer Range: -24 to +24g

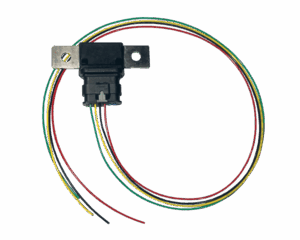

Isabellenhütte ICD series

Shunt-based Current Sensor
Current range up to ±500A
Communication based on CANbus 2.0A/B
Input voltage tolerance 5.5V to 26V
Temperature range from -40°C to +105°C

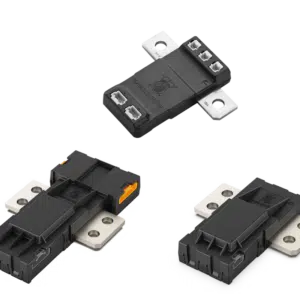

Isabellenhütte IVT-S series

Current & voltage measurement sensor
Current range up to ±2,500A
Voltage range up to ±1,200V (Extended)
Communication based on CANbus 2.0 & DBC
Accuracy of ±0.4% of reading
Temperature range from -40°C to +105°C

Isabellenhütte IVT 3 Base

Current measurement sensor (ASIL C)
Current measurement up to 4,000A (Ext)
Temperature Measurement
Communication based on CAN 2.0B with DBC
Total accuracy of ±0.4% of rdg. +0.1A
Supply voltage 12V/24V**
Temperature range from -40°C to +125°C

Isabellenhütte IVT 3 Pro

Current measurement sensor (ASIL C)
3V or 6V measurement channels (ASIL B)
Active insulation monitoring (QM)
Temperature measurement
Current measurement up to 4,000A (Ext)
Voltage measurement up to 1,250V (Ext)
Temperature range from -40°C to +125°C

Core Sensors CS10 Series

Industrial pressure transducer
Pressure ranges from vacuum up to 45,000 PSI
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum
Temperature range from -40°C to +85°C
Media Temperature from -40°C to +120°C

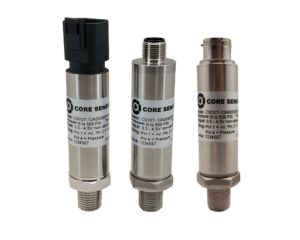

Core Sensors CS10T Series

Pressure and temperature measurement with independent outputs
Pressure ranges from 50 to 10,000 PSI
Multiple temperature ranges available
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum

Core Sensors CS11 Series

Compact media isolated pressure sensor
Pressure ranges from 0-2 up to 2,000 PSI
Accuracy as low as ≤ ±0.25% BFSL
Stability of ≤ ±0.2% of FS (1 year)
Pressure cycles of 10 million
Overpressure of 2x minimum
Burst pressure of 5x or 4,000 PSI

Core Sensors CS12 Series

Submersible pressure transducer
Pressure ranges from 1 to 100 PSI
Accuracy down to ≤±0.25% BFSL
Stability (1 year) of ≤±0.25% of FS
Pressure cycles of 50 million
Overpressure of 2x minimum
Burst pressure of 5x or 500 PSI

Core Sensors CS14 Series

Wet/wet differential pressure transducer
Differential pressure ranges up to 300 PSI
Line pressure up to 500 PSI
Accuracy of ≤±0.25% BFSL at 25°C
Stability of ≤±0.25% of FS
Pressure cycles of 4 million
Overpressure of 2x or 500 PSI

Core Sensors CS15 Series

Non-Clogging submersible pressure transducer
Pressure ranges from 2 PSI to 50 PSI
Flush diaphragm prevents clogging
Hastelloy C276 diaphragm material
IP68 rated
Operating temperature of -40 to +85°C
Compensated temperatures from 0 to +55°C

Merit Sensor MSS100 Series

Fully compensated pressure transducer.
Compact and lightweight design.
Easy electrical connection via Molex connector.
Designed for medical, pharmaceutical, and bio-processing applications.
Pressure range 5 to 100 psi (compound, vacuum, absolute, or gauge).
Operating temperature 10°C to 50°C.

Merit Sensor RSH Series

Uncompensated pressure sensor with MEMS-die-on-pressure-port design.
Compatible with wet and harsh media.
Suitable for broad temperature and pressure ranges.
Pressure range 0 to 500 psi (absolute or gauge).
Operating temperature range -40°C to 150°C

Merit Sensor TRVF Series

Fully compensated pressure sensor.
Wetted materials including silicon, glass, and ceramic enhances compatibility with harsh media.
Compact and lightweight, weighing approximately 1.35 grams.
Designed to measure pressure in air, gases, and liquids.
Pressure Range available from 1 to 300 psi (absolute or gauge).
Operating temperature range between -40°C to 150°C.

Nano Development Kit

The Nano Development Kit can be used alongside 3 environmental sensors: Cell Guard, H Guard and Air Wise. In order to quickly plug in and evaluate your sensor, use this Development Board which has all the necessary cables to plug into a CAN adaptor.

Includes:

Development Board
Power Supply
Sensor Cables
DB9 Cable

Sensors not included

Metis Engineering Cell Guard

Cell Guard is a CAN-based environmental sensor for use with Battery Packs in Energy Storage Systems and Electric Vehicles. It measures absolute pressure, air temperature, VOCs, absolute humidity, relative humidity, dew point temperature, and shock load and duration. For quick desktop analysis, use alongside the Cell Guard Development Kit.

Metis Engineering H Guard

H Guard is a CAN based sensor that can measure absolute pressure, air temperature, H2 (Hydrogen), absolute air water content, relative humidity, dew point temperature and 3 axis acceleration.

Absolute Pressure: 0.3 to 1.2 Bar
Air Temperature: -40°C to +125°C
Relative Humidity: 0% to 100%
Dew Point Temperature: 0 to 100°C
Accelerometer Range: -24 to +24g

Isabellenhütte ICD series

Shunt-based Current Sensor
Current range up to ±500A
Communication based on CANbus 2.0A/B
Input voltage tolerance 5.5V to 26V
Temperature range from -40°C to +105°C

Isabellenhütte IVT-S series

Current & voltage measurement sensor
Current range up to ±2,500A
Voltage range up to ±1,200V (Extended)
Communication based on CANbus 2.0 & DBC
Accuracy of ±0.4% of reading
Temperature range from -40°C to +105°C

Isabellenhütte IVT 3 Base

Current measurement sensor (ASIL C)
Current measurement up to 4,000A (Ext)
Temperature Measurement
Communication based on CAN 2.0B with DBC
Total accuracy of ±0.4% of rdg. +0.1A
Supply voltage 12V/24V**
Temperature range from -40°C to +125°C

Isabellenhütte IVT 3 Pro

Current measurement sensor (ASIL C)
3V or 6V measurement channels (ASIL B)
Active insulation monitoring (QM)
Temperature measurement
Current measurement up to 4,000A (Ext)
Voltage measurement up to 1,250V (Ext)
Temperature range from -40°C to +125°C

Core Sensors CS10 Series

Industrial pressure transducer
Pressure ranges from vacuum up to 45,000 PSI
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum
Temperature range from -40°C to +85°C
Media Temperature from -40°C to +120°C

Core Sensors CS10T Series

Pressure and temperature measurement with independent outputs
Pressure ranges from 50 to 10,000 PSI
Multiple temperature ranges available
Accuracy down to ≤ ±0.25% BFSL
Stability (1 year) of ≤ ±0.25% of FS
Overpressure of 2x minimum

Core Sensors CS11 Series

Compact media isolated pressure sensor
Pressure ranges from 0-2 up to 2,000 PSI
Accuracy as low as ≤ ±0.25% BFSL
Stability of ≤ ±0.2% of FS (1 year)
Pressure cycles of 10 million
Overpressure of 2x minimum
Burst pressure of 5x or 4,000 PSI

Core Sensors CS12 Series

Submersible pressure transducer
Pressure ranges from 1 to 100 PSI
Accuracy down to ≤±0.25% BFSL
Stability (1 year) of ≤±0.25% of FS
Pressure cycles of 50 million
Overpressure of 2x minimum
Burst pressure of 5x or 500 PSI

Core Sensors CS14 Series

Wet/wet differential pressure transducer
Differential pressure ranges up to 300 PSI
Line pressure up to 500 PSI
Accuracy of ≤±0.25% BFSL at 25°C
Stability of ≤±0.25% of FS
Pressure cycles of 4 million
Overpressure of 2x or 500 PSI

Core Sensors CS15 Series

Non-Clogging submersible pressure transducer
Pressure ranges from 2 PSI to 50 PSI
Flush diaphragm prevents clogging
Hastelloy C276 diaphragm material
IP68 rated
Operating temperature of -40 to +85°C
Compensated temperatures from 0 to +55°C

Featured products

Metis Engineering H Guard

Metis Engineering H Guard

H Guard is a CAN based sensor that can measure absolute pressure, air temperature, H2 (Hydrogen), absolute air water content, relative humidity, dew point temperature and 3 axis acceleration.

Absolute Pressure: 0.3 to 1.2 Bar
Air Temperature: -40°C to +125°C
Relative Humidity: 0% to 100%
Dew Point Temperature: 0 to 100°C
Accelerometer Range: -24 to +24g

ICD Series Shunt-based current sensor

Isabellenhütte ICD series

Shunt-based Current Sensor
Current range up to ±500A
Communication based on CANbus 2.0A/B
Input voltage tolerance 5.5V to 26V
Temperature range from -40°C to +105°C

Coto RR133-1E83-511 Series

TMR ultra-low power digital magnetic sensor
Omnipolar magnetic field response
Operate sensitivity of 14 G (typical)
Supply voltage range of 2.4V to 5.5V
Operating frequency of 1 kHz
Operating temperature range from -40°C to +125°C.

Merit Sensor RSH Series

Uncompensated pressure sensor with MEMS-die-on-pressure-port design.
Compatible with wet and harsh media.
Suitable for broad temperature and pressure ranges.
Pressure range 0 to 500 psi (absolute or gauge).
Operating temperature range -40°C to 150°C

Manufacturers

Looking for Sensors?

The below manufacturers are all of our authorised partners that produce Sensors or related products.

Coto Technology

Metis Engineering Ltd

Newtek Sensor Solutions

Stellar Technology

Sensors

We offer a broad selection of sensors from a number of different industry leading manufacturers. Many of our sensors are designed for use in a variety of industries including Automotive, Medical, Aerospace, Oil & Gas and other harsh environment applications. Our range of sensors available include:

Temperature Sensors
Pressure Sensors
Magnetic Sensors
Load Cells
Float & Flow Switches

From standard off-the-shelf products to customised sensors, we can work with you and our authorised partners to offer the right solution suited to your requirements.

Looking for that extended pressure range, greater temperature rating or a different connector fitting? Need something a little different from the standard products below? Contact us now with your requirement.
