Load cells for force measurement where there is little room for one, in test rigs, automation and embedded assemblies.
Low-profile load cells for tension and compression where axial height is limited. Used in press monitoring, structural testing and general force measurement.

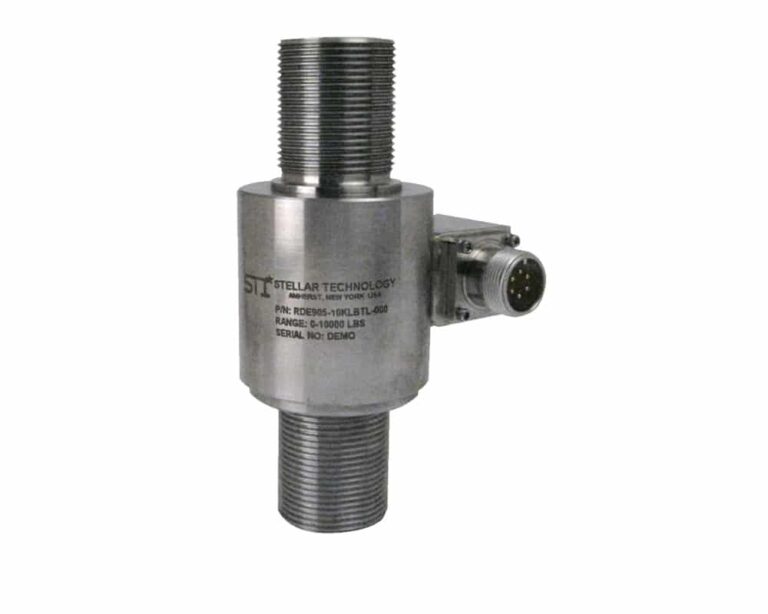

Load cells built into a rod end fitting, measuring force in line with the linkage or actuator they form part of.
Cylindrical load cells for compressive force, with the element enclosed in a sealed steel body. For high-capacity weighing, test rigs and structural load monitoring.
Load cells smaller again than the miniature range, for force measurement in space-constrained and high-density assemblies.
Load cells shaped as the clevis pin itself, so the joint carries the load and measures it at the same time. No separate sensor has to be designed into the linkage.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
Load cells for force and weight measurement, in six mechanical formats: canister, clevis pin, miniature, pancake, rod end and subminiature. The format follows how the load reaches the cell, which the mechanics usually fix before the electrical specification.
