High-Precision Attenuators

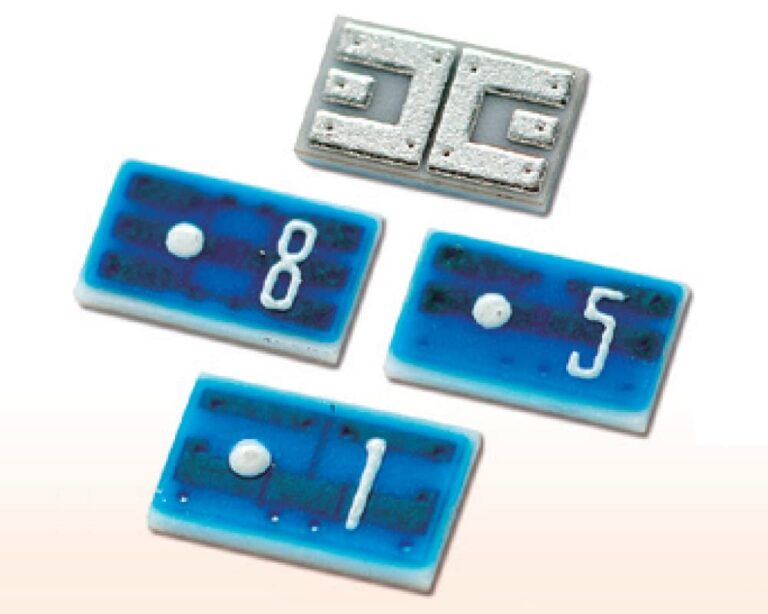

Susumu ATS2012 Series

Surface-mount high frequency chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C

Surface-mount high frequency chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C

Susumu PAT0510S Series

High precision chip attenuator
Surface mount design with an 0402 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

High precision chip attenuator
Surface mount design with an 0402 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

Susumu PAT0816 Series

High precision chip attenuator
Surface mount design with an 0603 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

High precision chip attenuator
Surface mount design with an 0603 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

Susumu PAT1220 Series

High precision chip attenuator
Surface mount design with an 0805 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

High precision chip attenuator
Surface mount design with an 0805 chip size
Attenuation of 0dB to 10dB (1dB steps)
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

Susumu PAT1632 Series

High precision chip attenuator
Surface mount design with an 1206 chip size
Attenuation of 0dB to 10dB (1dB steps) & 16dB
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

High precision chip attenuator
Surface mount design with an 1206 chip size
Attenuation of 0dB to 10dB (1dB steps) & 16dB
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω
Temperature range from −55°C to +125°C

Susumu PAT3042 Series

Surface-mount high precision chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C.

Surface-mount high precision chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C.

Susumu PAT3042S Series

High precision chip attenuator
Surface mount design with an 1612 chip size
Attenuation of 0dB to 10dB (1dB steps), 16dB or 20dB
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω or 75Ω
Temperature range from −55°C to +125°C

High precision chip attenuator
Surface mount design with an 1612 chip size
Attenuation of 0dB to 10dB (1dB steps), 16dB or 20dB
Attenuation tolerance down to ±0.3dB
Impedance of 50Ω or 75Ω
Temperature range from −55°C to +125°C

Susumu PAT3060H Series

Surface-mount high precision chip attenuator
Rated operating temperature of +70°C
Temperature range of −55°C to +125°C

Surface-mount high precision chip attenuator
Rated operating temperature of +70°C
Temperature range of −55°C to +125°C

Susumu PAT4556 Series

Surface-mount high precision chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C

Surface-mount high precision chip attenuator
Rated operating temperature +70°C
Temperature range of −55°C to +125°C

Manufacturers

Looking for High-Precision Attenuators?

Looking for High-Precision Attenuators?

The below manufacturers are all of our authorised partners that produce High-Precision Attenuators or related products.

High-Precision Attenuators

We offer a select range of high-precision attenuators by Susumu. Some of the key features of these industry-defining attenuators are as follows:

operating frequencies of up to 30GHz (ATS series, up to 10GHz for PAT series)
Attenuations from 0dB to 20dB
Tolerances of ±0.1dB, ±0.25dB, ±0.3dB, ±0.5dB, ±0.7dB or ±0.75dB

These parts are designed to satisfy most requirements within the wireless communications market.

Utilising the thin-film technology and wrap-around terminals, they are available in various surface-mount chip sizes – the PAT0510S is currently the smallest surface-mount attenuator on the market!
