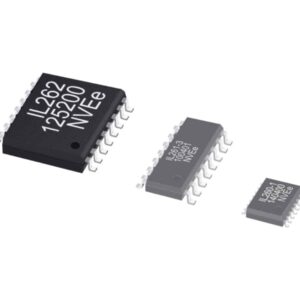

The IL260VE high speed digital isolator from NVE is a five channel CMOS device with typical data rate of 110Mbps. They feature high working voltage of 1kV_RMS and isolation voltage of 6kV_rms. The IL260VE is available in an 16-pin 0.3″ SOIC package, specified over a temperature range of −40°C to +85°C. These isolators are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. The IL260VE features symmetric magnetic coupling barrier, providing the best specification in terms of propagation delay and pulse width distortion on the market. The unique fifth channel can be used to distribute isolated clocks or handshake signals to multiple delta-sigma A/D converters. The unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL260 series, including IL260VE is UL1577 recognised and certified to VDE 0884-10.

• Surface-mount high speed digital isolator
• Unidirectional five channel isolation
• High speed with typical data rate of 110 Mbps
• Isolation voltage of 6kV_rms
• Working voltage of 1kV_RMS
• Temperature range of −40°C to +85°C
• 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
• No carrier or clock for low EMI emissions and susceptibility
• Typical quiescent current of 0.0012A per channel
• Typical pulse width distortion of 2ns
• Pulse jitter of 100ps
• Channel to channel skew of 2ns
• Typical propagation delay of 10ns
• Barrier life of 44000 years
• Excellent magnetic immunity
• VDE V 0884-10 certified; UL 1577 recognised
• 16-pin 0.3″ SOIC package

Typical applications for the IL260 series include:

• ADCs and DACs
• Multiplexed data transmission
• Board-to-board communication
• Equipment covered under IEC 61010-1 Edition 3
• 5kV_RMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL260 high speed digital isolator series including the IL260VE:
