NVE IL712T-1E

  • NVE

Product Features

  • High temperature, high speed digital isolators
  • Multidirectional two channel isolation
  • High speed at 110 Mbps typical
  • 1kVRMS isolation voltage
  • 600VRMS working voltage
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • 0.0012 A/channel typical quiescent current
  • 2ns typical pulse width distortion (with 5V supply)
  • 100ps pulse jitter
  • 2ns channel-to-channel skew
  • 44000 year barrier life
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 8-pin MSOP package

Applications

  • Medical
  • Motion Control
  • Power Control
  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The IL712T-1E high temperature, high speed digital isolator from NVE is a two channel CMOS device with typical data rate of 110Mbps. It features an isolation voltage of 1kVrms and 600Vrms working voltage per VDE V 0884-10. The IL712T-1E isolators are available in a miniature 8-pin MSOP package and are specified over a temperature range of −40°C to +125°C. These isolators are the industry standard for solid-state signal isolation and the ultimate in usable data rate and performance. The IL712T-1E series from NVE are manufactured with NVE’s patented IsoLoop® spintronic Giant Magnetoresistive (GMR) technology. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. The IL712 series, including IL712T-1E is UL1577 recognised and certified to VDE V 0884-10.

  • High temperature, high speed digital isolator

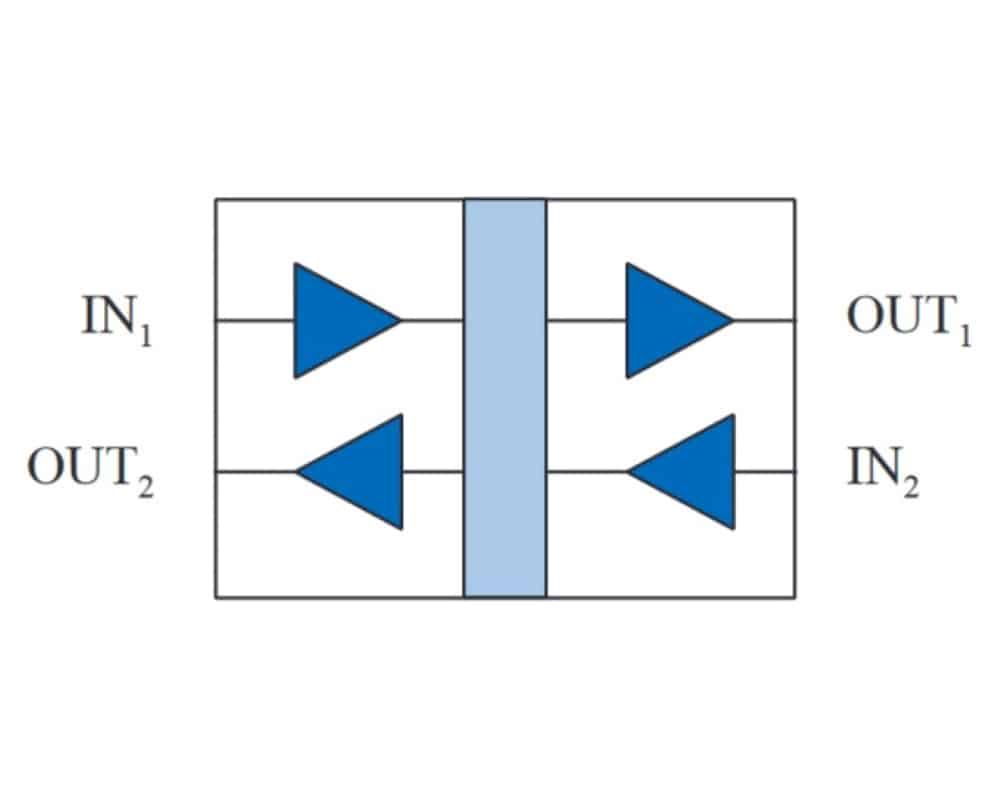

  • Multidirectional two channel isolation
  • High speed at 110 Mbps typical
  • Isolation voltage of 1kVrms
  • Working voltage of 600 Vrms per VDE V 0884-10
  • Temperature range of −40°C to +125°C
  • 50 kV/μs typical (30 kV/μs minimum) common mode transient immunity
  • No carrier or clock for low EMI emissions and susceptibility
  • Typical quiescent current 0.0012A/channel
  • Typical pulse width distortion of 2ns
  • Pulse jitter 100ps
  • Channel to channel skew 2ns
  • Typical propagation delay of 10ns
  • Barrier life of 44000 years
  • Excellent magnetic immunity
  • VDE V 0884-10 certified; UL 1577 recognised
  • 8-pin MSOP package

The NVE IL712T-1E series symmetric magnetic coupling barrier provides a typical propagation delay of only 10ns and a pulse width distortion as low as 2ns, achieving the best specifications of any isolator. Typical transient immunity of 50 kV/µs is unsurpassed.

Typical applications for the IL712 series include:

  • Board-to-board communication
  • CANbus
  • Peripheral interfaces
  • Logic level shifting
  • Equipment covered under IEC 61010-1 Edition 3
  • 5 kVRMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions of the NVE IL712 high speed digital isolator series including the IL712T-1E:

NVE IL712T-1E Specifications

Specifications

Weight 0.02500 kg
Dimensions 3.10 × 3.10 × 1.15 mm
Series / Model

Additional Features

High temperature, high speed digital isolators Multidirectional two channel isolation High speed at 110 Mbps typical 1kVRMS isolation voltage 600VRMS working voltage 50 kV/μs typical (30 kV/μs mini

Temperature Range (°C)

Supply Voltage

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
