NVE IL2985E

NVE IL262VE
NVE IL262VE
NVE IL3022E
NVE IL2985E
  • NVE

Product Features

  • Low-power RS-485 isolated transceiver
  • Bus ESD protection 7kV
  • Typical common mode transient immunity of 50 kV/µs
  • Isolation of 2.5kVRMS
  • Working voltage of 300VRMS
  • 44000 year barrier life
  • Thermal shutdown protection
  • UL 1577 and VDE V 0884-10 pending
  • 0.3″ 16-pin SOIC package

Applications

  • Scientific Instrumentation
  • Test and Measurement
  • Compliant

Description

The IL2985E low-power, galvanically isolated RS-485 differential bus transceiver from NVE offers data rate of 4Mbps and very low quiescent current, typically 2.4mA (IDD1Q+IDD2Q). The IL2985 series delivers at least 1.5V into a 54Ω load for excellent data integrity over long cables, and is also compatible with 3V power supplies. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. This particular device uses NVE’s patented IsoLoop spintronic Giant Magnetoresistance (GMR) technology and comes in a 0.3″ 16-pin SOIC package.

  • Surface-mount low-power, galvanically isolated RS-485 transceiver
  • 3V abd 5V power supplies
  • Data rate of 4Mbps
  • 7kV bus ESD protection
  • Isolation of 2.5kVRMS
  • Working voltage of 300VRMS
  • Temperature range of −40°C to +85°C
  • Typical common mode transiend immunity of 50kV/μs (30kV/μs minimum)
  • Supports up to 32 nodes
  • Thermal shutdown protection
  • UL 1577 and VDE V 0884-10 pending; meets or exceeds ANSI RS-485 and ISO 8482:1987(E)
  • 0.3″ 16-pin SOIC package

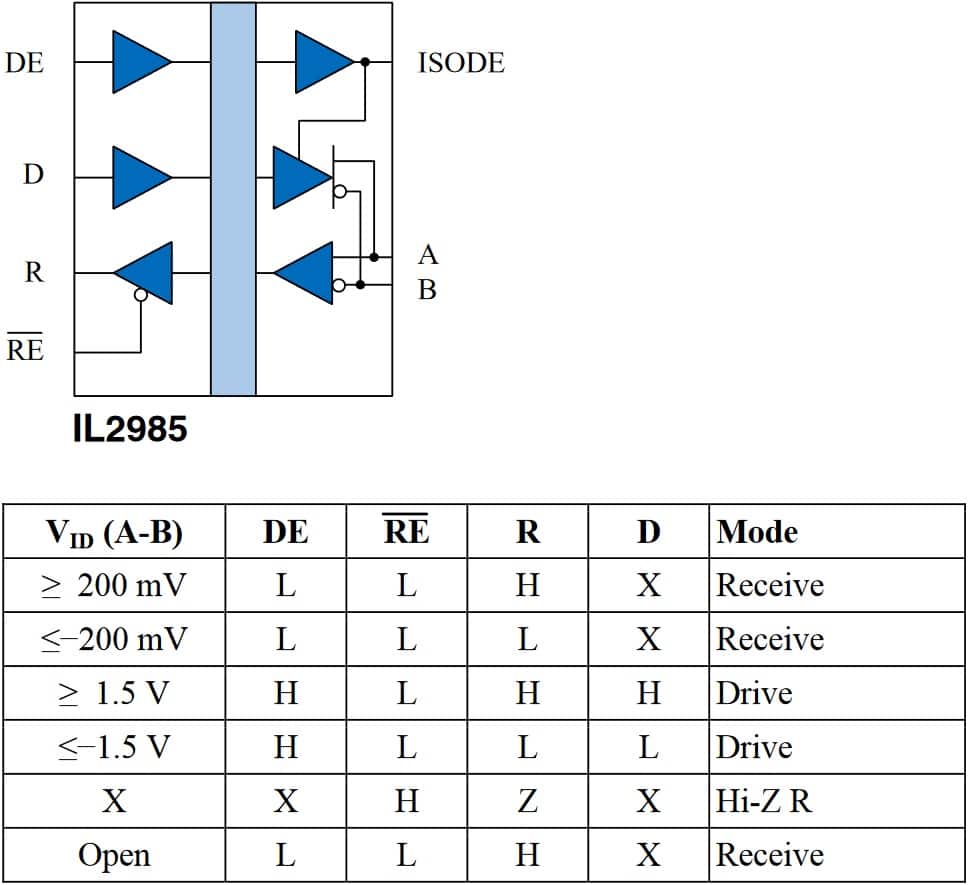

The IL2985 has current limiting and thermal shutdown features to protect against output short circuits and bus contentions that may cause excessive power dissipation, and also incorporate a “fail-safe if open” design, ensuring a logic high on R if the bus lines are disconnected or “floating.”

Typical applications for the IL2985 series include:

  • Metering
  • Battery-powered RS-485 nodes
  • Factory automation
  • Industrial control networks
  • Building environmental controls
  • Equipment covered under IEC 61010-1 Edition 3

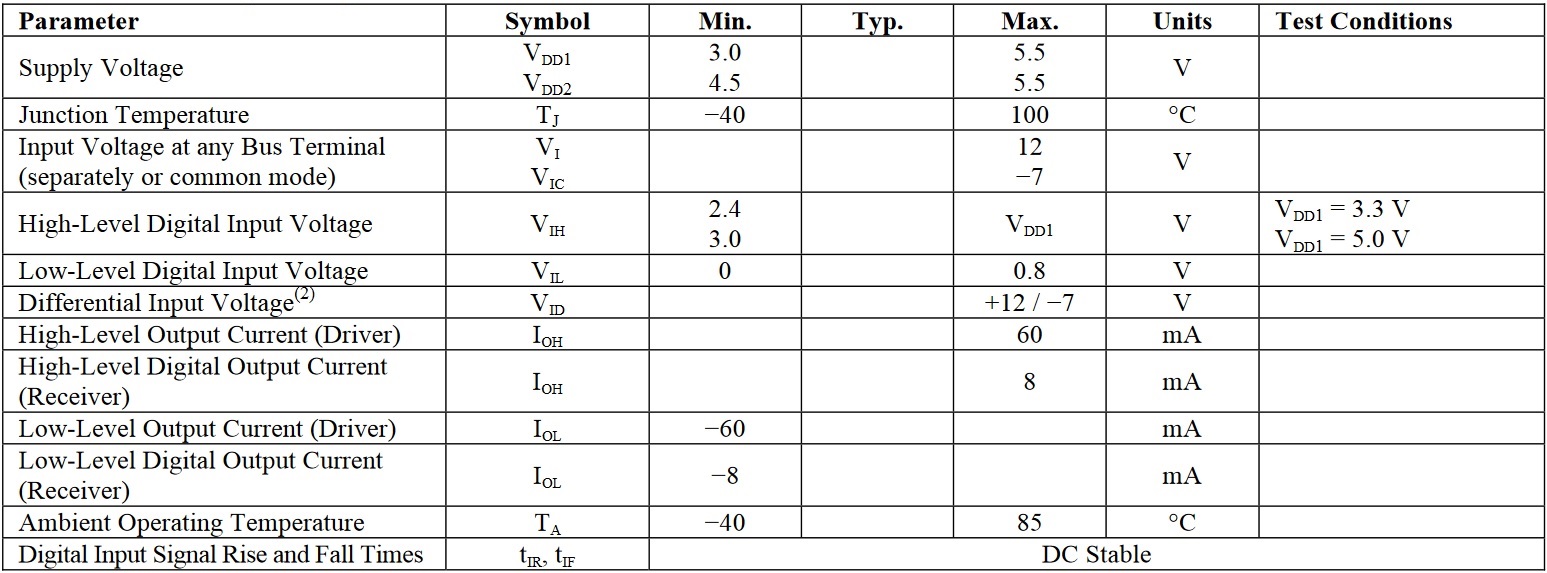

The below table gives the recommended operating conditions for the NVE IL2985E low-power transceiver:

NVE IL2985E Specifications

Specifications

Weight 0.02500 kg
Dimensions 10.08 × 7.42 × 2.34 mm
Temperature Range (°C)

Series / Model

Supply Voltage

,

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

NVE IL2985 Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
NVE IL2985 Low power isolated transceivers series datasheet
Isolated logic level shifters
Isolated RS485 and RS422
Making RS485 system work
Package, tape-and-reel and pad layout specifications
GMR in isolation
Isolator high voltage safety standards
Isolated data converter
Power supply bypass capacitor selection
Pb free and S-Pb solder profiles
IsoLoop isolators for high efficiency power control
Isoloop isolators have low emissions, low emissions, low EMI susceptibility and excellent magnetic immunity
Isolating data converters
Isolated I S minimises distortion
IsoLoop isolators have best in class endurance voltage
Profibus complianc, a hardware design guide
Isolated CAN reference design
IsoLoop isolators have best-in-Class transient immunity
NVE isolators feature eight millimeter creepage
Isoloop isolators enable next generation switching mode power suppliers
Isoloop isolators have excellent thermal characteristics
