NVE IL3585-3E

  • Compliant
  • NVE

Product Features

  • High speed RS-485 isolated transceiver
  • Bus ESD protection 15kV
  • Typical common mode transient immunity of 50 kV/µs
  • Isolation of 2.5kVRMS
  • Working voltage of 600VRMS
  • 44000 year barrier life
  • Thermal shutdown protection
  • UL 1577 recognized; VDE V 0884-10 certified
  • 0.15″ 16-pin SOIC package

Applications

  • Scientific Instrumentation
  • Test and Measurement

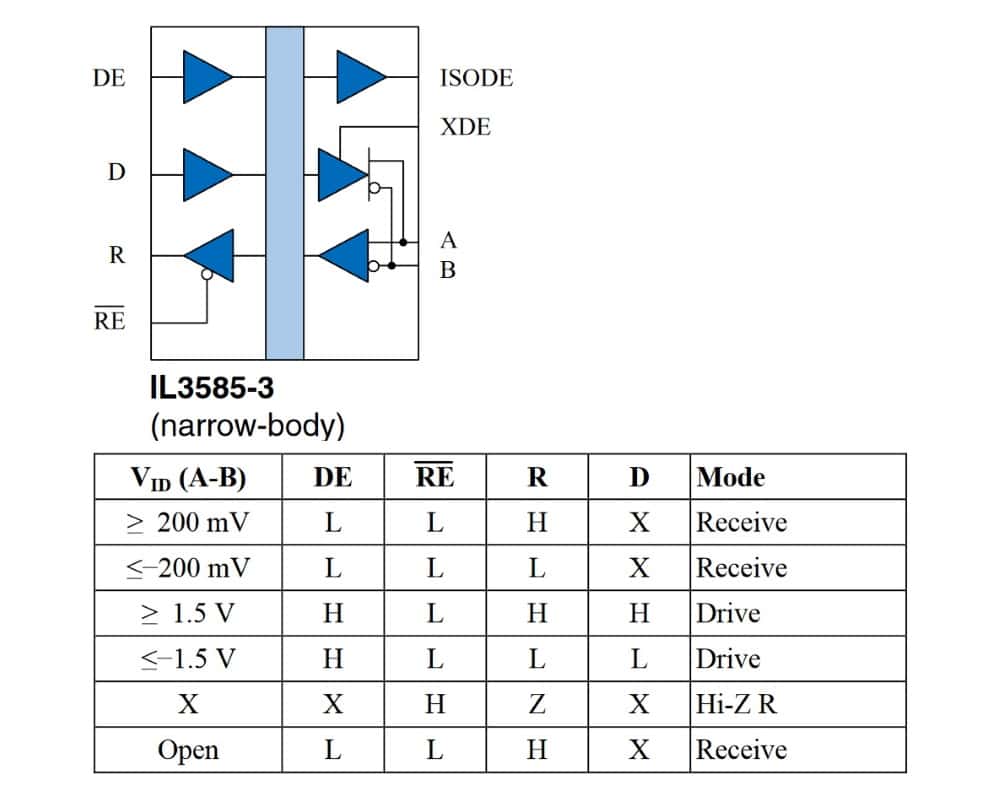

Description

The IL3585E high speed differential input RS-485 isolated transceiver from NVE is designed to galvanically isolate bidirectional data communication over balanced transmission lines. The IL3585 series delivers at least 2.3V differential output into a 54Ω load for excellent data integrity over long cables, and is also compatible with 3V input supplies, allowing interfacing to standard microcontrollers without additional level shifting. A unique ceramic/polymer composite barrier provides excellent isolation and virtually unlimited barrier life. This particular device uses NVE’s patented IsoLoop spintronic Giant Magnetoresistance (GMR) technology and comes in a miniature 0.15″ 16-pin SOIC package.

  • Surface-mount, high speed, galvanically isolated RS-485 transceiver
  • Power supply VDD1 between 3V and 5.5V, VDD2 between 4.5V and 5.5V
  • Data rate as high as 40Mbps
  • 15kV bus ESD protection
  • Isolation of 2.5kVRMS
  • Working voltage of 600VRMS
  • Temperature range of −40°C to +85°C
  • Typical common mode transiend immunity of 50kV/μs (30kV/μs typical)
  • Propagation delay as low as 20ns
  • Thermal shutdown protection
  • UL 1577 recognised; VDE V 0884-10 certified
  • 0.15″ 16-pin SOIC package

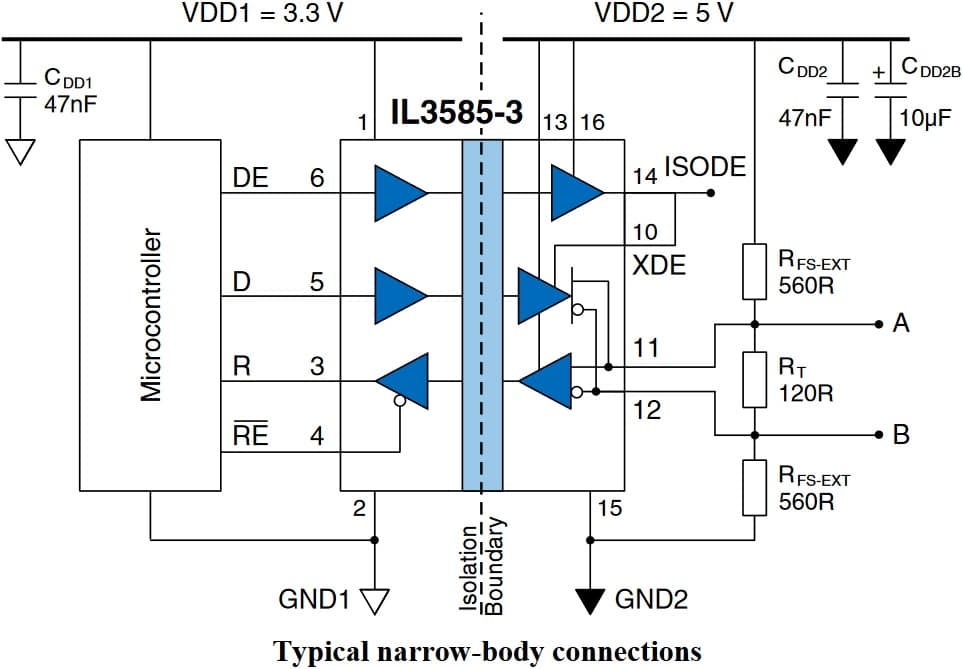

The IL3585 has current limiting and thermal shutdown features to protect against output short circuits and bus contentions that may cause excessive power dissipation, and also incorporate a “fail-safe if open” design, ensuring a logic high on R if the bus lines are disconnected or “floating.”

Typical applications for the IL3585 series include:

  • Factory automation
  • Industrial control networks
  • Building environmental controls
  • Equipment covered under IEC 61010-1 Edition 3
  • 5kVRMS rated IEC 60601-1 medical applications

The below table gives the recommended operating conditions for the NVE IL3585 High speed RS-485 isolated transceiver series including the IL3585E:

NVE IL3585E Specifications

Specifications

Weight 0.02500 kg
Dimensions 9.80 × 3.81 × 1.40 mm
Series / Model

Additional Features

High speed RS-485 isolated transceiver Bus ESD protection 15kV Typical common mode transient immunity of 50 kV/µs Isolation of 2.5kVRMS Working voltage of 600VRMS 44000 year barrier life Therm

Temperature Range (°C)

Supply Voltage

,

Maximum Data Rate

Propagation Delay

Creepage Distance

RoHS Compliant Product – NVE

This product is available fully compliant to the RoHS EU directive 2011/65/EU.
