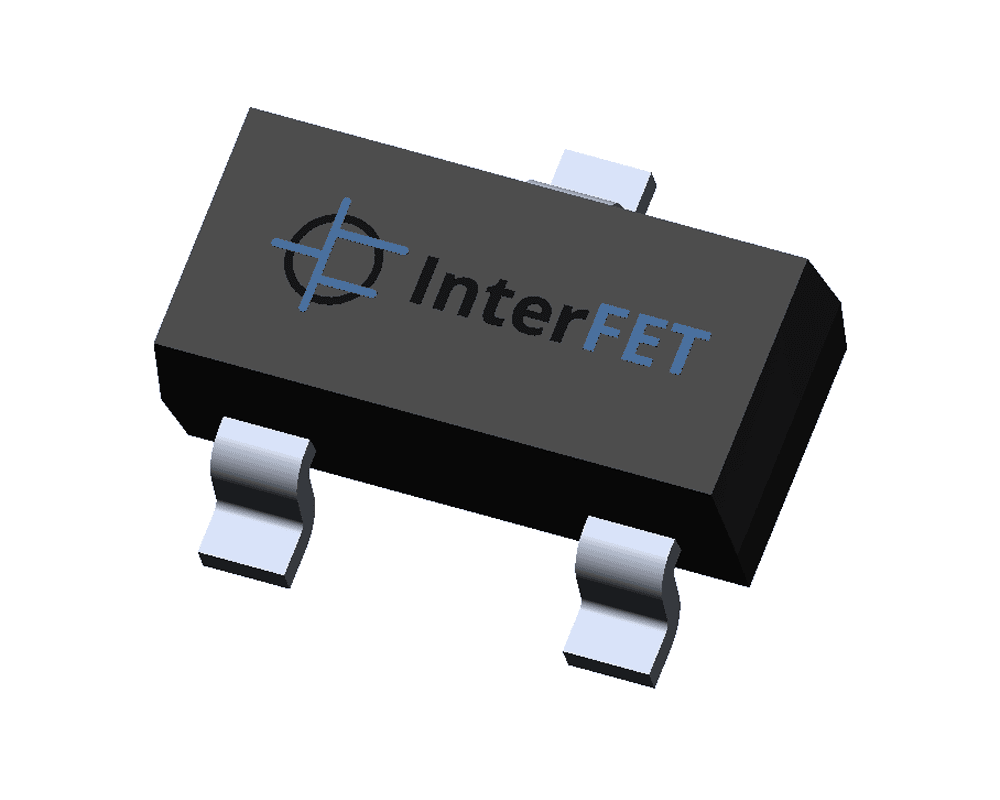

InterFET IF140ST3 N-Channel JFET with N0014L Geometry. Typical leakage of -1pA and a low input capacitance of 3pF (max). All of this in a SOT-23 package.
| Product Type | |
|---|---|
| Series / Model | |
| Industry Standard P/N | |
| Mounting / Size | |
| Geometry Type | N0014L |
| Polarity | N-Channel |
| BVgss (min) V | 20 |
| Igss (typ) pA | -1 |
| Vgso (max) V | -6 |
| Idss (min) mA | -5 |
| Idss (max) mA | -15 |
| Gm (min) mS | 3.5 |
| En (typ) nV/√Hz | 4 |
| Ciss (max) pF | 3 |
| Crss (max) pF | 0.6 |
InterFET IF140ST3 N-Channel JFET with N0014L Geometry. Typical leakage of -1pA and a low input capacitance of 3pF (max). All of this in a SOT-23 package.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
