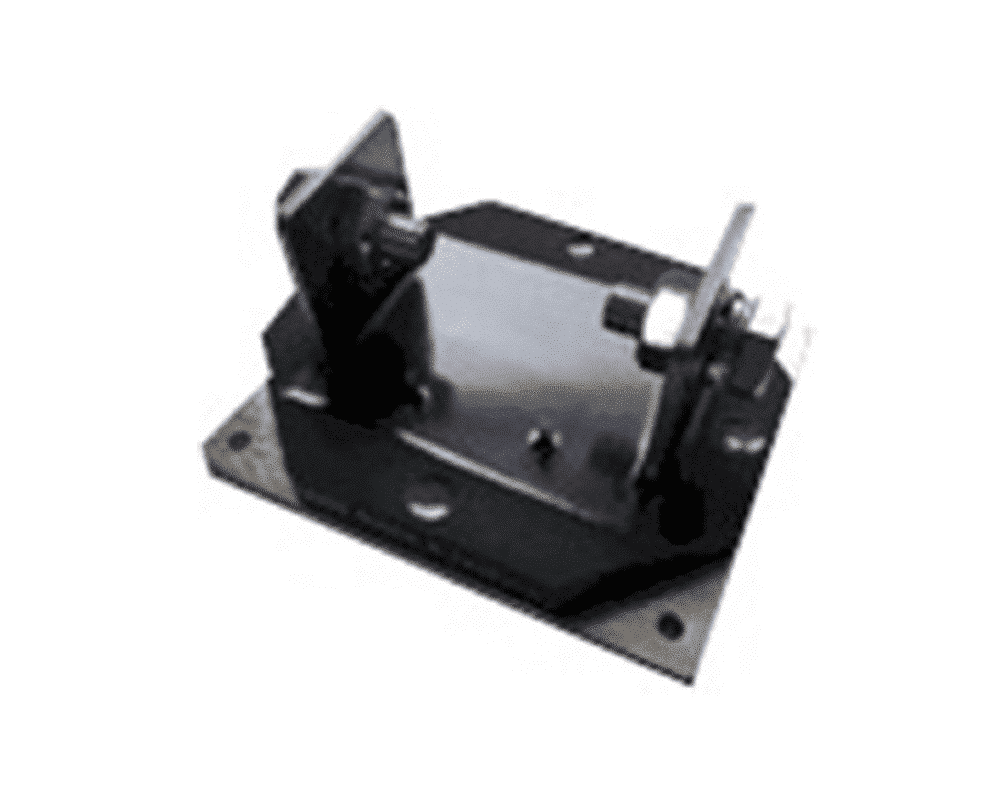

The UHPS Ultra high power precision 4-terminal shunt resistor series from RARA offers a power rating of up to 100W on a suitable heat sink, with a maximum current limit of 707A (resistance value of 0.2mΩ). The UHPS series is available with resistance values of 0.2mΩ and 1mΩ, tolerance options as low as ±0.05% and a maximum TCR of ±10 ppm/°C. Short-term stability as low as ≤±0.1% at maximum current load for 1 hour.
Typical applications for the UHPS series include:

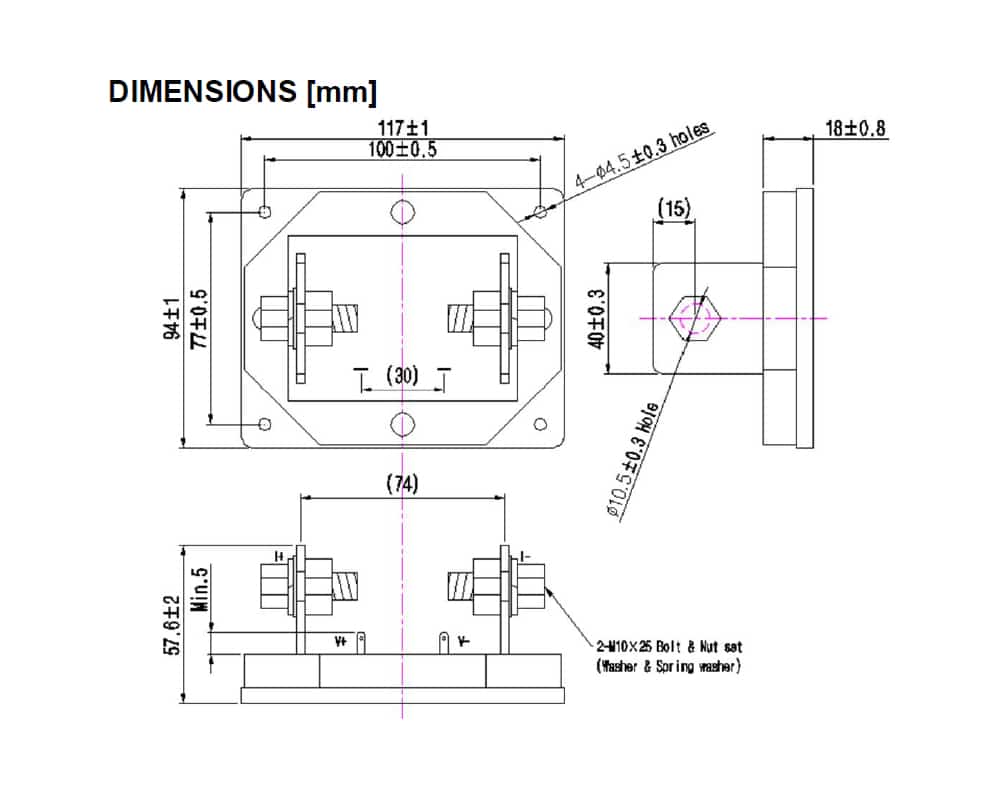

| Attributes | Value |
|---|---|
| Temperature range | -55°C to +100°C |
| Rated power | 100W (on a suitable heatsink) |
| Resistance values | 0.2mΩ / 1mΩ |
| Tolerance | ±0.05% (A) / ±0.1% (B) / ±0.5% (D) / ±1% (F) |
| Maximum working current | 707A (at 1mΩ) |
| TCR | ±10ppm/°C |
| Dielectric withstanding voltage | 500V AC for 60s (Max. leakage current 2mA) |
| Short-term stability | ΔR ≤±0.1% (for 1hr at terminal & copper flange temperature ≤+50°C) |
| Dimensions | 21 x 70 x 60mm |
|---|---|
| Product Type | |
| Series / Model | |
| Package / Size | |
| Power Rating | |
| Current Rating | |
| Resistance Value | |
| Tolerance | |
| Temperature Coefficient | |
| Temperature Range (°C) | -55 to +100°C |
Due to the technical complexity nature of these components, complete specifications, performance data, dimensional information and configuration options are provided within the product datasheet.
UHPS
| SKU | Resistance Value | Tolerance | Temperature Coefficient |
|---|---|---|---|
| RARA UHPS Series-1 | 0.001Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.001Ω | ±1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.002Ω | ±1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.005Ω | ±1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.01Ω | ±1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.02Ω | ±1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±0.05% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±0.1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.05Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±0.5% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±1% | ±3 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±0.05% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±0.1% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±0.5% | ±5 ppm/°C |
| RARA UHPS Series-1 | 0.1Ω | ±1% | ±5 ppm/°C |
