Alpha SLD Series

Product Features

Ultra precision, 2 element resistor network
Resistance range 50Ω and 30kΩ
Tolerance from ±0.05% to ±0.1% available
TCR of ±2.5 ppm/°C or ±5 ppm/°C
Power rating of 0.25W (at +70°C)
Temperature range from -25°C to +125°C

Datasheet

Resistance Value Element 1

Resistance Value Element 2

Clear

Custom resistance value (Ω) *
Custom AT Range (AT) *
Custom Capacity (lbs) *
Custom Pressure (Bar/PSI) *
Custom Resistance Value Element 1 (Ω) *
Custom Resistance Value Element 2 (Ω) *
Custom lead length (mm) *
Custom lead length (inches) *

Quantity

Add to Compare

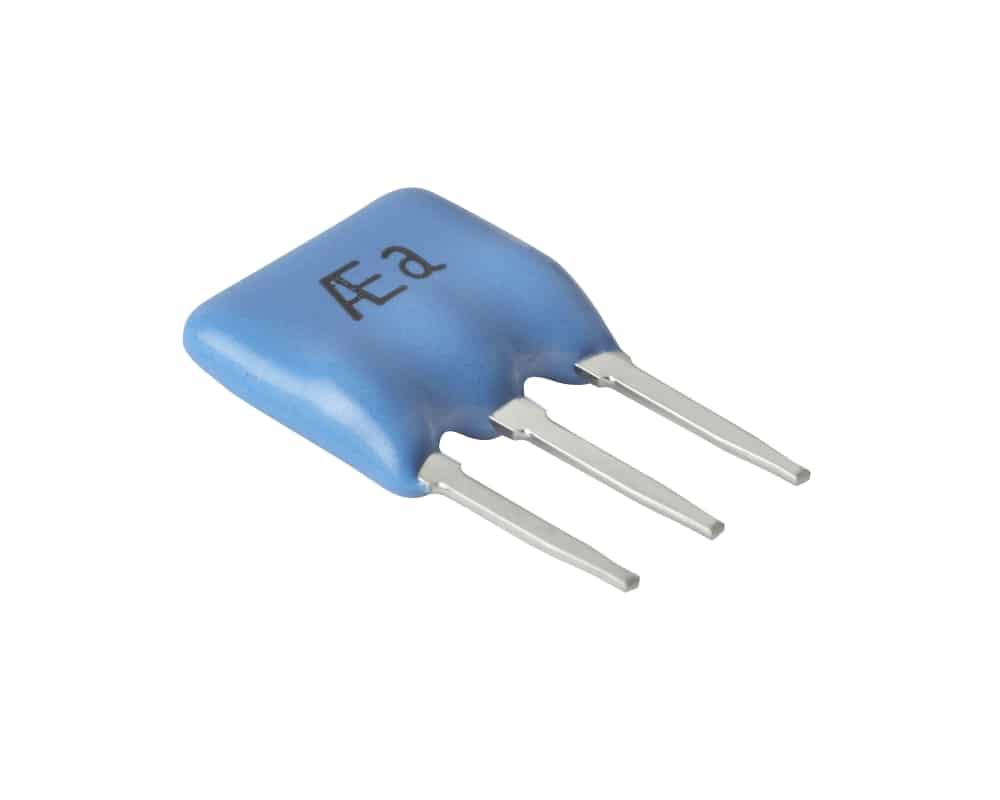

The SLD conformally coated ultra-precision resistor 1-2-3 network series from Alpha Electronics offers a 3 terminal, 2 element resistor network in a small through-hole package. Each resistive element can range from 50Ω up to 30kΩ all with tight tolerances down to +0.05% absolute and +0.02% matching (100Ω to 30kΩ). By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce this resistor network series with low temperature coefficients (both absolute and tracking) as well as excellent long-term stability. The Alpha SLD series offers three pins with a standard pin pitch of 2.54 ±0.25mm.

2 element resistor network
Each resistor element is available in any resistance between 50Ω and 30kΩ
Through-hole conformally coated 3 pin package
Tight absolute tolerance of ±0.05% for resistances between 100Ω and 30kΩ with an even tighter matching tolerance of ±0.02% over the same resistance range available
Tight absolute TCR of ±2.5 ppm/°C (from -25°C up to +125°C)
Tight tracking TCR available of between ±0.5 ppm/°C and ±3 ppm/°C depending on resistance ratio between the two elements
Power rating of 0.25W per resistor package (at +70°C)
Maximum rated operating temperature +70°C
Temperature range from -25°C up to +125°C

The SLD through-hole, ultra-precision resistor 1-2-3 network series exhibits excellent high frequency characteristics thanks to Alpha’s Bulk Metal® foil resistor technology, making them suitable for the most demanding precision applications.

Alpha’s SLD resistor network series are ideal for use in input and feedback resistors for amplifiers due to both the input and feedback resistors being incorporated into the same package, therefore amplification is not affected by temperature change.

The below table gives the full specifications for each resistor model available including the Alpha SLD series:

* Symbols parenthesized are for part number composition
** Please contact us for resistance availability
TCR is from -25°C to +125°C for SLD Type

Specifications

Weight	0.00000 kg

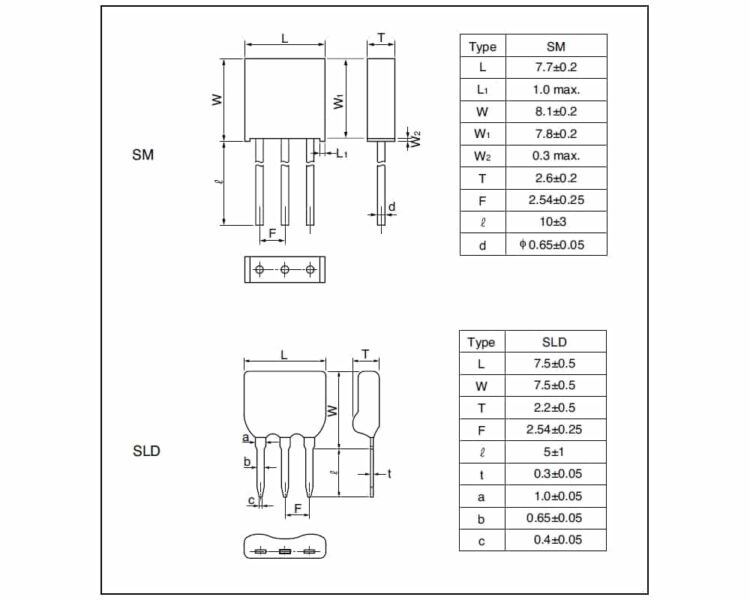

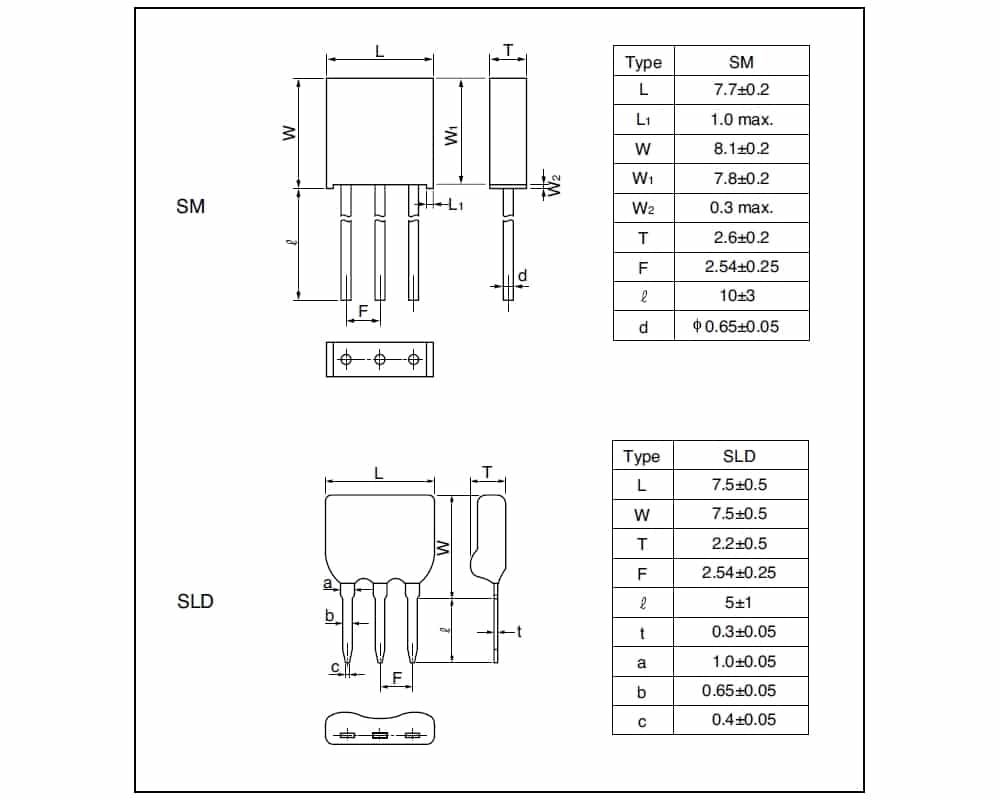

Dimensions	7.50 x 2.20 x 7.50mm
Maximum Resistance	30kΩ
Minimum Resistance	50Ω
Package / Size	Through-hole, 3 Pin, Conformally Coated
Power Rating	0.25W
Product Type	Network, Ultra-Precision, Resistor
Resistance Value Element 1	Custom (50Ω – 100Ω), Custom (100Ω – 30kΩ), 1kΩ, 2kΩ, 10kΩ, 20kΩ
Resistance Value Element 2	Custom (50Ω – 100Ω), Custom (100Ω – 30kΩ), 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ
Series / Model	Sx
Temperature Coefficient	±2.5 ppm/°C, ±5 ppm/°C
Temperature Range (°C)	-25 to +125°C
Tolerance	±0.05%, ±0.1%, ±0.5%

Product Variations

SKU	Resistance Value Element 1	Resistance Value Element 2
Alpha SLD1Y 1K000 BA	1kΩ	1kΩ
Alpha SLD1Y 10K00 BA	10kΩ	10kΩ
Alpha SLD1Y 20K00 BA	20kΩ	20kΩ
Alpha SLD1Y 2K000 BA	2kΩ	2kΩ
Alpha SLD1Y 5K000 BA	2kΩ	5kΩ
Alpha SLD2 (50Ω - 100Ω)/(100Ω - 30kΩ)	Custom (50Ω - 100Ω)	Custom (100Ω - 30kΩ)
Alpha SLD2 (100Ω - 30kΩ)/(100Ω - 30kΩ)	Custom (100Ω - 30kΩ)	Custom (100Ω - 30kΩ)
Alpha SLD2 (50Ω - 100Ω)/(50Ω - 100Ω)	Custom (50Ω - 100Ω)	Custom (50Ω - 100Ω)
Alpha SLD2 (100Ω - 30kΩ)/(50Ω - 100Ω)	Custom (100Ω - 30kΩ)	Custom (50Ω - 100Ω)
