Alpha MATF Series

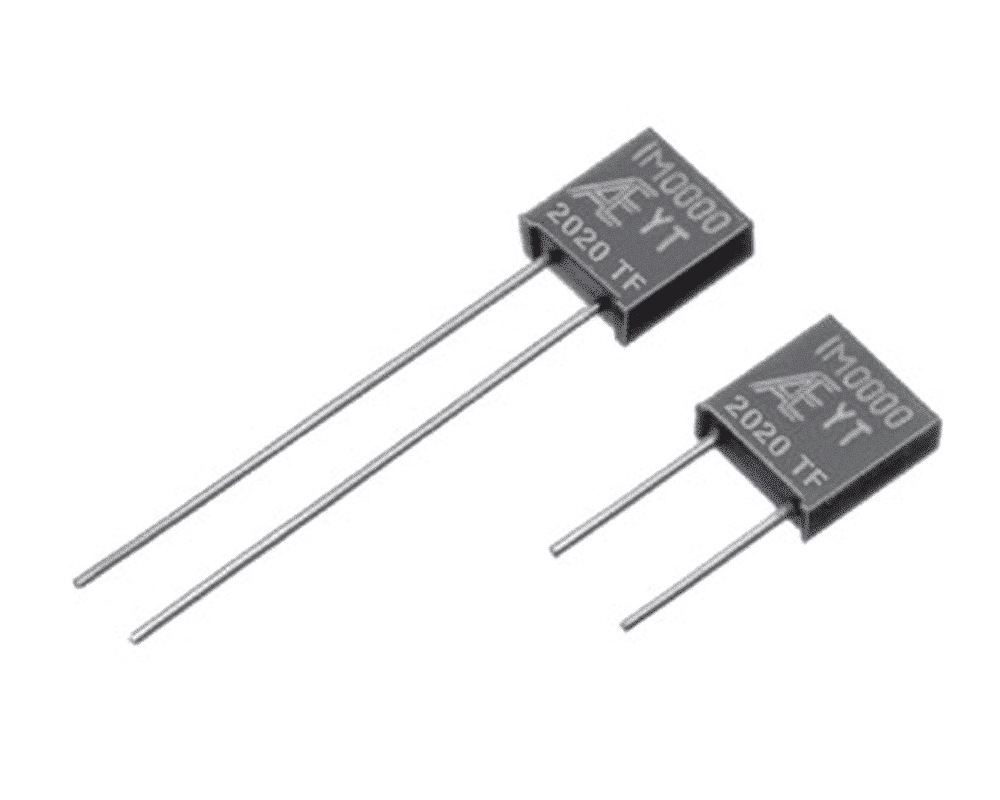

Alpha MATF/MCTF precision thin film resistor product image

Product Features

Precision thin film resistor (transfer moulded)
Resistance ranges from 200kΩ up to 10MΩ
Tolerances from ±0.01% up to ±0.01% (model dependant)
TCR of 0±1ppm/°C to 0±10ppm/°C (model dependant)
Pin pitch of 3.81±0.25mm
Lead length of 25±10mm
Working temperature range from -65°C up to +175°C

Applications

The MATF precision thin film resistor series from Alpha Electronics offers a wide resistance range from 200kΩ up to 10MΩ with tight tolerances from ±0.01% up to ±0.1%, all in a small through-hole package with a pin pitch of 3.81 ±0.25mm.

Alpha’s Bulk Metal® foil resistor technology means that these transfer moulded, through-hole, ultra-precision resistors are ideal for precision measurements. These resistors are constructed using an outer coating of transfer moulded epoxy resin, making the parts strongly resistant to heat, moisture and solvents. Internally, there are secondary leads which act as a buffer so that stress on the exterior leads is not transmitted to the foil, providing stability against vibrations when the resistor is mounted on a circuit.

Precision thin film resistor (transfer moulded)
Resistance ranges from 200kΩ up to 10MΩ
Tolerances from ±0.01% up to ±0.01% (resistance value dependent)
TCR from ±1ppm/°C up to ±10ppm/°C (resistance value dependent)
Maximum working voltage of 300V
Power rating of 0.2W (at +125°C)
Maximum rated operating temperature +125°C
Working temperature range from -65°C up to +175°C
Pin pitch of 3.81±0.25mm
Lead length of 25±10mm
Transfer moulded through-hole package
Inorganic element coating for moisture resistance

Typical applications for the MATF precision thin film resistor series include:

Current sense / Voltage divider for precision instrumentation
Automated test equipment
Medical
Electric Scales

Alpha Electronics are a manufacturer of some of the most stable and precise resistors on the market. As part of the VPG group, the Alpha Electronics brand is globally rewarded for the accuracy and reliability of its Bulk Metal® Foil technology resistors. Alpha Electronics has been living the conviction globally known to engineers for consistently delivering the highly desirable characteristics of “Stability, Accuracy and Reliability”. Please visit https://www.alpha-elec.co.jp for more information.

Alpha MATF Series

Add to Compare

Calculators and Convertors

Work out what you need for your project. Go to calculators and convertors

Specifications

Dimensions	2.8 x 8.3 x 7.9mm
Lead Length	25±10mm
Maximum Resistance	10MΩ
Minimum Resistance	200kΩ
Package / Size	Through-hole
Pitch	3.81±0.25mm
Power Rating	0.2W
Product Type	Thin Film, Precision, Transfer Moulded, Resistor
Resistance Value	Custom (200kΩ – 1MΩ), Custom (1MΩ – 10MΩ)
Series / Model	MxTF
Temperature Coefficient	±1 ppm/°C, ±2.5 ppm/°C, ±5 ppm/°C, ±10 ppm/°C
Temperature Range (°C)	-65 to +175°C
Tolerance	±0.01%, ±0.02%, ±0.05%, ±0.1%

Series / Model (MATF)

MATF

Temperature Coefficient (X)

C: ±10 ppm/°C
X: ±5 ppm/°C
Y: ±2.5 ppm/°C
Z: ±1 ppm/°C

Resistance Value (XXXXXX)

Resistance value, in ohm, is expressed by a series of 6 characters, 5 of which represent significant digits. K (kiloohms) or M (megaohms) is a dual-purpose letter that designates both the value range and the location of the decimal point.

Tolerance (X)

A: ±0.05%
B: ±0.1%
Q: ±0.02%
T: ±0.01%
