Exxelia Ohmcraft HC 0303

Specifications

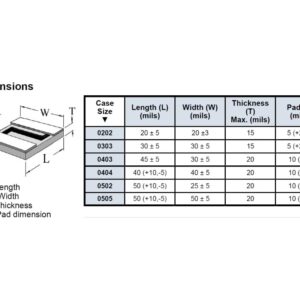

Dimensions 0.38 x 0.76 x 0.76mm
Product Type

Design Technology

Package / Size

Minimum Resistance

Maximum Resistance

Tolerance

, , ,

Temperature Coefficient

, ,

Power Rating

Voltage Rating

Termination / Connection

Temperature Range (°C)

Series / Model

Exxelia Ohmcraft HC 0303

Clear
Quantity
  • Compliant

Series Products

Exxelia Ohmcraft HC 0303 Series Products

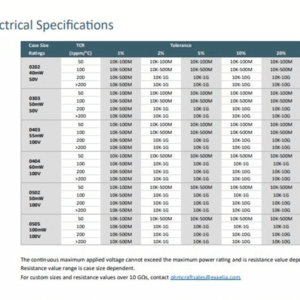

 Product namePackage / SizeMinimum ResistanceMaximum ResistanceToleranceTemperature CoefficientPower RatingVoltage RatingAdd to enquiry
Exxelia Ohmcraft - HC Series Exxelia Ohmcraft HC 0202020210kΩ10GΩ±2%, ±5%, ±10%, ±20%±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C0.04W50VAdd to Enquiry
Exxelia Ohmcraft - HC Series Exxelia Ohmcraft HC 0303030310kΩ10GΩ±2%, ±5%, ±10%, ±20%±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C0.05W50VAdd to Enquiry
Exxelia Ohmcraft - HC Series Exxelia Ohmcraft HC 0403040310kΩ10GΩ±2%, ±5%, ±10%, ±20%±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C0.055W100VAdd to Enquiry
Exxelia Ohmcraft - HC Series Exxelia Ohmcraft HC 0404040410kΩ10GΩ±2%, ±5%, ±10%, ±20%±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C0.06W100VAdd to Enquiry
Exxelia Ohmcraft - HC Series Exxelia Ohmcraft HC 0502050210kΩ10GΩ±2%, ±5%, ±10%, ±20%±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C0.05W100VAdd to Enquiry
Exxelia Ohmcraft - HC Series Exxelia Ohmcraft HC 0505050510kΩ10GΩ±2%, ±5%, ±10%, ±20%±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C , >±200 ppm/°C0.1W100VAdd to Enquiry

HC Series Description

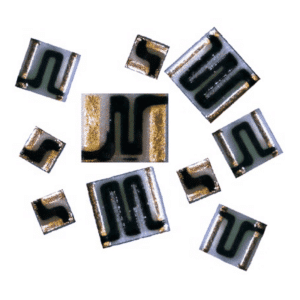

  • Bondable SMD Resistors
  • Available in resistances from 10kΩ to 10GΩ *
  • Standard chip sizes of 0202, 0303, 0403, 0404, 0502 & 0505 *
  • Tolerances of ±1%, ±2%, ±5% ,±10% or ±20%
  • TCR ratings of ±50 ppm/°C, ±100 ppm/°C, ±200 ppm/°C or >±200ppm/°C
  • Ultra high stability
  • Very low noise
  • Termination of wire bondable gold (Au)
  • Power rating from 0.04W to 0.1W
  • Voltage rating from 50V to 100V
  • Operating temperature range of -55°C to 150°C

* Custom configurations are available upon request The HC high ohmic bondable chip resistor series from Exxelia Ohmcraft® offers resistance ranges from 10kΩ up to 10GΩ all in chip sizes. By utilising patented Micropen® precision printing technology, Exxelia Ohmcraft® are able to provide an entirely new level of performance and stability in thick-film SMD resistors. The HC series offer very low noise, and ultra-high stability with tolerances down to ±1%, TCR as low as ±50 ppm/°C.

Exxelia Ohmcraft HC 0303 Ordering Info

Below is the model number configuration for the HC series from Exxelia Ohmcraft.
Ordering example: HC0303K5006KG
XXXXXXXXXXXXX

Series / Model (XX)

HC
HC

Package / Size (XXXX)

0303
0303

Temperature Coefficient (X)

K
±100 ppm/°C
L
±200 ppm/°C
M
>±200 ppm/°C

Resistance Value (XXXX)

Resistance value is expressed as a four-digit number where the first three numbers are the significant value, and the fourth number is the number of zeros.

Tolerance (X)

G
±2%
J
±5%
K
±10%
L
±20%

Termination / Connection (X)

G
Wire Bondable Gold (Au)
