Product Features

  • Surface-mount high power thin film chip resistor
  • Temperature range of −55°C to +155°C
  • Maximum voltage of 200V
  • Thin film structure enabling low noise
  • Anti-sulfur with a significantly larger power handling capability than existing same size resistors
  • Automotive

Applications

  • Compliant

Description

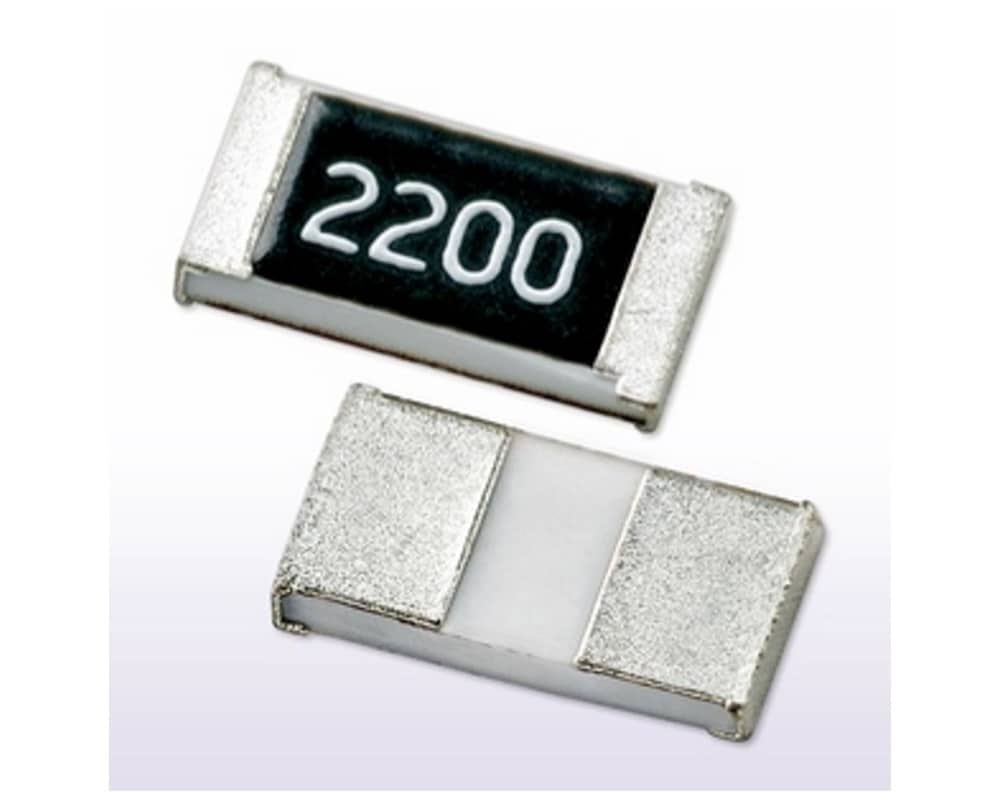

The HRG series of high power thin film chip resistors from Susumu expand on the original RG series by offering a greater power handling capability. Parts are available in a 1206 chip size, with resistance values ranging from 10Ω up to 100kΩ and with a power rating of 1W which is significantly larger than the existing same size resistor offerings. The resistors have short sided terminals but with wider bottom contacts to enable the higher power handling capabilities. The HRG series are AEC-Q200 compliant and have an operating temperature of between −55°C to +155°C which makes this range suitable for automotive applications.

  • Surface-mount high power thin film chip resistor
  • Resistance range of between 10Ω to 100kΩ
  • Power rating 1W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available of ±25 ppm/°C (P) and ±50 ppm°C (Q)
  • Resistance value series E-24 and E-96
  • Maximum voltage of 200V
  • Temperature range of −55°C to +155°C
  • Thin film structure enabling low noise and anti-sulfur
  • Chip size of 1206 with wider bottom terminal enabling higher power capability (short side terminal)
  • Significantly larger power handling capability than existing same size resistors



The Susumu HRG series of high power thin film chip resistors are ideal for the following applications:

  • Power source related devises
  • DC motors
  • Inverters
  • Robotics
  • Industrial control system



The below table gives the full specifications of the Susumu HRG3216 resistor series:

Susumu HRG3216 Specifications
Please see the Susumu selection guide under the Technical Library tab for the E-24 and E-96 values





Specifications

Weight 0.00000 kg

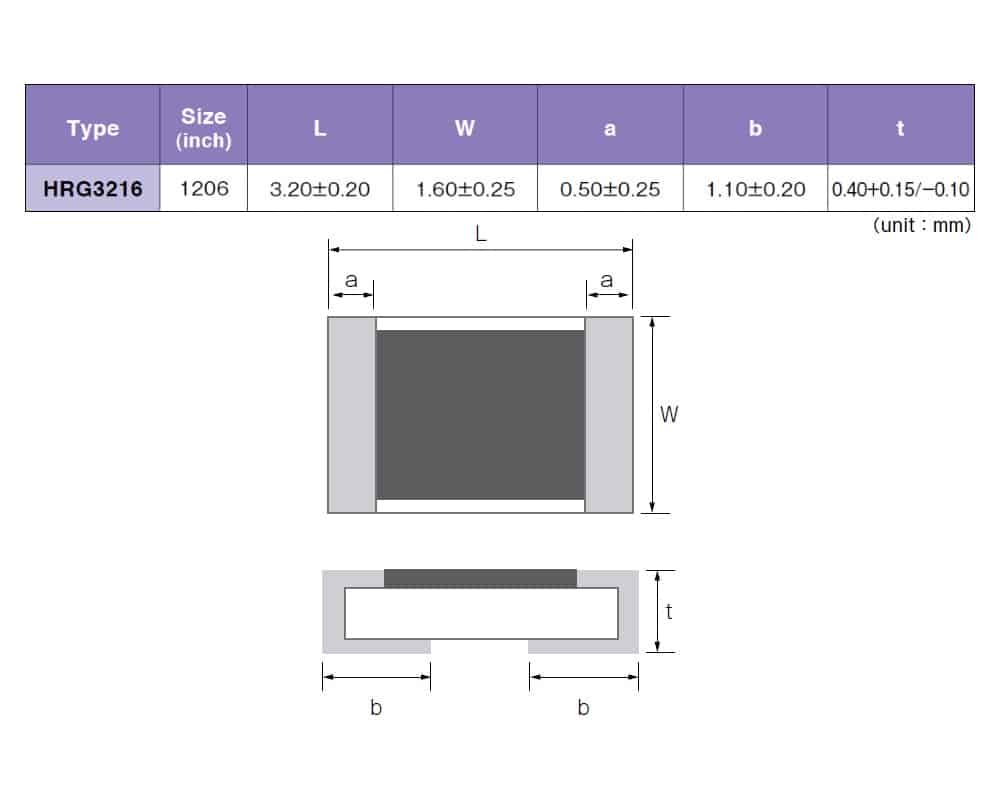

Dimensions 3.20 × 1.60 × 0.40 mm
