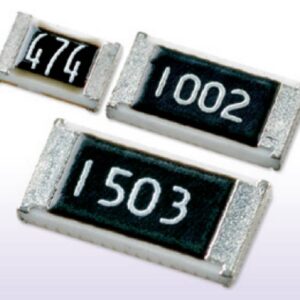

Susumu MRG2012 Series

  • Susumu

Product Features

  • Surface-mount anti-surge thin film chip resistor
  • Operating temperature range of −55°C to +155°C
  • Maximum voltage of 150V
  • AEC-Q200 Compliant
  • Thin film structure enabling low noise and anti-sulfur
  • Automotive

Applications

  • Automotive

Description

The MRG2012 series of anti-surge thin film chip resistors from Susumu offer significantly improved anti-surge capabilities compared to the existing thin film resistors they have to offer. The MRG2012 series is in 0805 chip size with voltage ratings of 150V, resistance values ranging from 100Ω to 1MΩ and the thin film structure enables low noise and anti-sulfur. This resistor is AEC-Q200 compliant and has a high operating temperature of +155°C which makes this range suitable for automotive applications.

  • Surface-mount anti-surge thin film chip resistor
  • Resistance range between 100Ω and 1MΩ available
  • Resistance value series E-24 and E96
  • Power rating of 0.1W
  • Tolerance values available ±0.1% (B) and ±0.5% (D)
  • TCR values available are ±10 ppm/°C (N) and ±25 ppm/°C (P)
  • Maximum voltage of 150V
  • Operating temperature range of −55°C to +155°C
  • Thin film structure enabling low noise and anti-sulfur
  • AEC-Q200 Compliant
  • Chip size of 0805

The Susumu MRG2012 series of anti-surge thin film chip resistors are ideal for the following applications:

  • Automotive electronics
  • Power source related devices
  • Robotics
  • Industrial control systems

The below table gives the full specifications of the Susumu MRG series including the MRG2012:

Susumu MRG2012 Specifications

Please see the Susumu selection guide in the Technical Libary tab for the E-24 and E-96 values


Specifications

Weight 0.00000 kg
Dimensions 2.00 × 1.25 × 0.40 mm
Minimum Resistance

Maximum Resistance

Tolerance

Power Rating

Additional Features

Resistance Value

Temperature Coefficient

,

RoHS Compliant Product – Susumu

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Susumu MRG Series Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Susumu MRG anti-surge thin film chip resistor series datasheet
Susumu product selection guide and handling care information
Susumu complete catalogue







VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.

VIDEOS
Susumu overview

A video highlighting the history of Susumu, potential applications and information relating to their product range, including their thin film chip resistors.
