| Weight | 4.50000 kg |
|---|---|
| Dimensions | 99.00 x 140.00 x 430.00mm |
| Accuracy | ±0.005%, ±0.01%, ±0.1% |
| Maximum Resistance | 11.11110MΩ |
| Minimum Resistance | 0.1Ω |
| Model / Part Number | |
| Power Rating | |
| Product Type | |
| Series / Model | |
| Temperature Coefficient |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The ADR 6-dial decade resistance box series from Alpha Electronics, with 6½ digit readings, features ultra precision resistors, low contact resistance rotary switches, low thermal EMF output terminals and the double shielded construction. There are 5 models of the ADR 6-dial decade resistance box available, each offering different resistance ranges starting from 0.1Ω minimum to 1.111210KΩ maximum up to 10Ω minimum to 11.11110MΩ maximum.
All resistors used in this Decade Resistance Box are from the ultra precision Bulk Metal® Foil resistors manufactured by Alpha Electronics, assuring high stability over time and environment change.
The rotary switches have very low contact resistance which is achieved by connecting three clip-type contacts in parallel. This method also ensures a higher mechanical reliability. Low thermal EMF output terminals use a low thermal resistance rectangular wire circuit configuration. A double shielded construction inhibits interference of environmental noise.

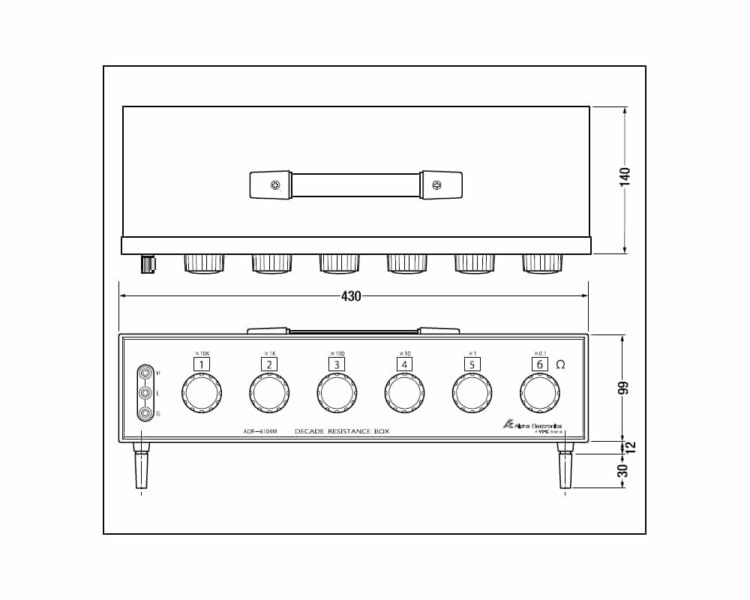

The ADR 6-dial resistance box series has a weight of approximately 4.5kg and dimensions of 430mm x 140mm x 99mm.
The below table gives the full specifications for each model available of the Alpha ADR 6-dial decade resistance box series:
