| Dimensions | 6.20 x 2.20 x 7.50mm |
|---|---|
| Product Type | |
| Minimum Resistance | 10Ω |
| Resistance Value | |
| Maximum Resistance | 200kΩ |
| Tolerance | |
| Power Rating | |
| Temperature Coefficient | |
| Mounting / Size | |
| Temperature Range | -25 to +155°C |
| Series / Model |
Get help specifying or customising the right product for your application.
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

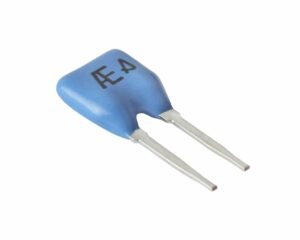

The FLC high precision through-hole resistor series from Alpha Electronics offers a very precise resistor with a resistance range from 1Ω up to 200kΩ all in a small through-hole package. The terminals have been designed for easy insertion into the PCB. By utilising Alpha’s Bulk Metal® foil resistor technology, they are able to produce resistors with low-temperature coefficients and excellent long-term stability. This makes them ideal for precision measurements, also their low inductance enables use at higher frequencies.
| Attributes | Value |
|---|---|
| Resistance value | 1Ω to 200kΩ |
| Tolerance | ±0.01% to ±1% |
| TCR | ±2.5ppm/°C to ±15ppm/°C (-25 to +125°C) |
| Temperature range | -25°C to +155°C |
| Power rating (at +70°C) | 0.25W |
| Maximum voltage | 300V |
