| Weight | 0.00000 kg |
|---|---|
| Dimensions | 20.50 x 8.70 x 13.50mm |
| Actual Energy Failure | 231J |
| Dissipation Constant | 12.7mW/°C |
| Material Type | |
| Max. Recommended Energy | 110J |
| Maximum Steady State Current | 2A |
| Mounting / Size | |
| Resistance at +25°C | 150Ω |
| Series / Model | |
| Thermal Time Constant | 71mW/s |
| Tolerance | |
| Voltage Rating |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.

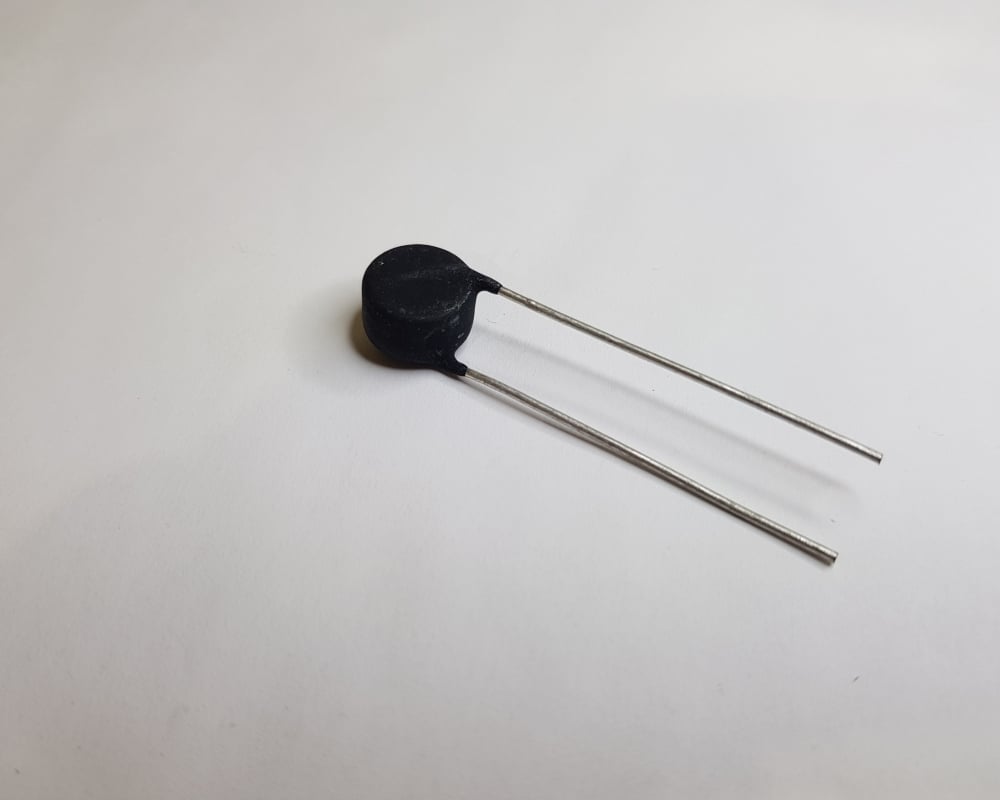

The MS12 15102 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 2A (up to +25°C), resistance of 150Ω ±25% (at 25°C) and a maximum recommended energy rating of 110J. Ametherm’s MegaSurge™ series of inrush current limiting NTC thermistors reduce costs and greatly simplify designs. In addition, they increase safety by eliminating the fire hazard associated with failed relays. While traditional thermistors are only certified for input voltages from 85 VAC to 265 VAC, UL recognised MegaSurge™ devices are certified for single and three phase input voltages up to 480 VAC. These specifications are the highest of any single-solution inrush current limiting device on the market.
Typical applications for the MS12 series include:

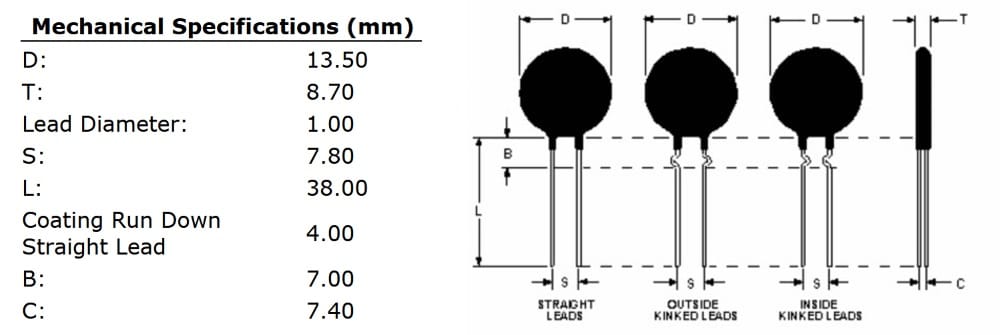

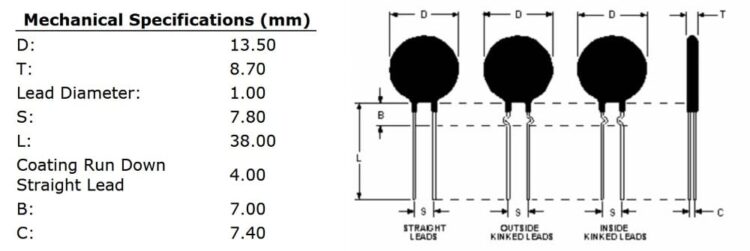

The below table gives the full specifications of the Ametherm MS12 15102 series:
