| Weight | 0.00000 kg |
|---|---|

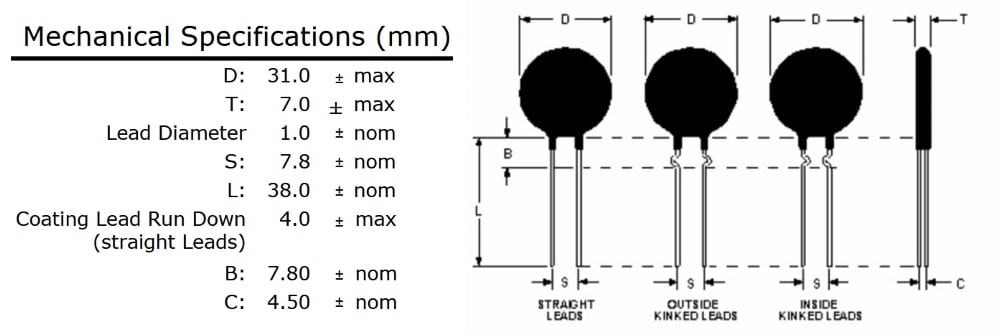

| Dimensions | 38.80 x 7.00 x 31.00mm |
| Actual Energy Failure | 400J |
| Dissipation Constant | 79.8mW/°C |
| Material Type | |
| Max. Recommended Energy | 250J |
| Maximum Steady State Current | 40A |
| Mounting / Size | |
| Resistance at +25°C | 0.5Ω |
| Series / Model | |
| Thermal Time Constant | 194mW/s |
| Tolerance | |
| Voltage Rating |
Working alongside your design team from the earliest stage, we help you select the right part for the application and, where a standard part will not do, develop customised components with our manufacturing partners such as lead length, termination and package size.
The MS32 0R540 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 40A (up to +65°C), resistance of 0.5Ω ±25% (at 25°C) and a maximum recommended energy rating of 250J. Ametherm’s MegaSurge™ series of inrush current limiting NTC thermistors reduce costs and greatly simplify designs. These specifications are the highest of any single-solution inrush current limiting device on the market.
Typical applications for the MS32 series include:
The below table gives the full specifications of the Ametherm MS32 0R540 series:
