Ametherm MS32 5R020

Product Features

  • Inrush current limiting thermistor
  • Resistance of 5Ω (at 25°C)
  • Maximum steady state current of 20A
  • Maximum recommended energy of 300J
  • Voltage rating from 120VAC to 680VAC
  • Body temperature of +204°C at maximum current
  • Exempt

The MS32 5R020 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 20A (up to +65°C), resistance of 5Ω ±25% (at 25°C) and a maximum recommended energy rating of 300J. Ametherm’s MegaSurge™ series of inrush current limiting NTC thermistors reduce costs and greatly simplify designs. In addition, they increase safety by eliminating the fire hazard associated with failed relays. While traditional thermistors are only certified for input voltages from 85 VAC to 265 VAC, UL recognised MegaSurge™ devices are certified for single and three phase input voltages up to 480 VAC. These specifications are the highest of any single-solution inrush current limiting device on the market.

  • Inrush current limiting thermistor
  • Resistance of 5Ω (at 25°C)
  • Maximum steady state current of 20A (up to +65°C)
  • Maximum recommended energy of 300J
  • Voltage ratings of 120VAC, 240VAC, 440VAC and 680VAC
  • Actual energy failure at 670J
  • 0.04Ω at 100% maximum current and 0.10Ω at 50% maximum current
  • Body temperature of +204°C at maximum current
  • Material type G (for beta and curve)
  • Tolerance ±25%
  • Dissipation constant of 55.4mW/°C
  • Thermal time constant of 194s
  • Recognised by Underwriters Laboratories (UL) for ensured safety



Typical applications for the MS32 series include:

  • Inrush current protection of power supplies
  • Motor controllers, Audio amplifiers, Battery chargers and Frequency generators,
  • Plasma cutting tools, MRI machines and Toroidal transformers

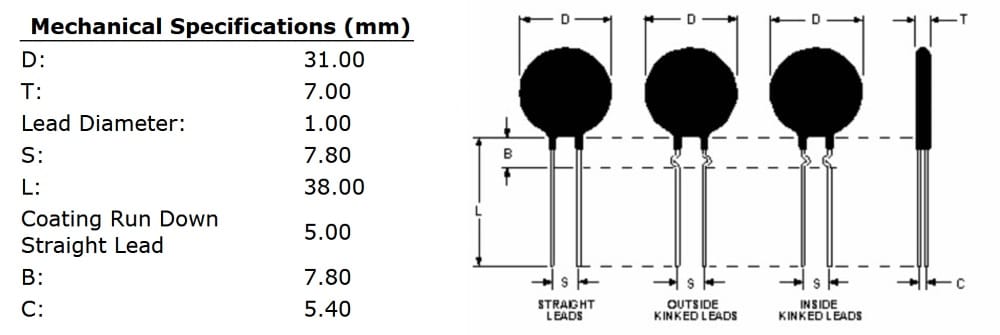

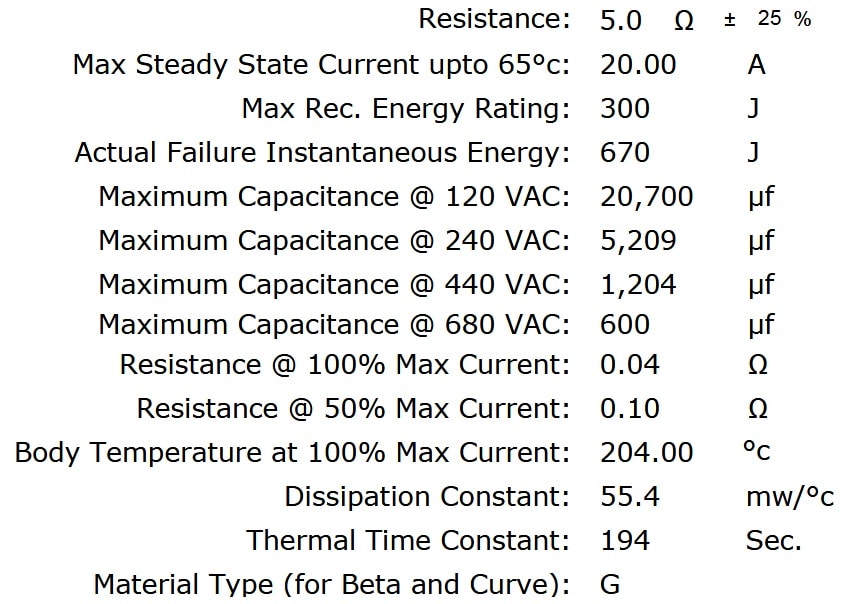

The below table gives the full specifications of the Ametherm MS32 5R020 series:

Ametherm MS32 5R020 Specifications

Specifications

Weight 0.00000 kg
Dimensions 38.80 x 7.00 x 31.00mm
Actual Energy Failure

670J

Dissipation Constant

55.4mW/°C

Material Type

Maximum Steady State Current

20A

Package / Size

Resistance at +25°C

Series / Model

,

Thermal Time Constant

194mW/s

Tolerance

Voltage Rating

, , ,
