Ametherm SL12 40002

Product Features

  • Inrush current limiting thermistor
  • Resistance of 40Ω (at 25°C)
  • Maximum steady state current of 2A
  • Maximum recommended energy of 20J
  • Body temperature of +148°C at maximum current
  • Maximum disc diameter 12mm
  • Exempt

The SL12 40002 inrush current limiting thermistor from Ametherm offers a maximum steady state current of 2A (up to +25°C), resistance of 40Ω ±25% (at 25°C) and a maximum recommended energy rating of 20J. The Ametherm SL series suppresses surge currents that occur when electrical circuits are switched on, preventing serious damage to sensitive electronic components if their rated current values are exceeded. Connected in series with the load, at “switch-on” they limit the current due to its relatively high cold resistance. As a result of current flow, the thermistor self-heats and in turn reducing its resistance value so that once the initial surge current has been safely held off, the resistance in the thermistor is maintained at a low value to maximise efficiency

  • Inrush current limiting thermistor
  • Resistance of 40Ω (at 25°C)
  • Maximum steady state current of 2A (up to +25°C)
  • Maximum recommended energy of 20J
  • Actual energy failure at 35J
  • 0.45Ω at 100% maximum current and 0.96Ω at 50% maximum current
  • Body temperature of +148°C at maximum current
  • Dissipation constant of 12.7mW/°C
  • Tolerance ±25%
  • Thermal time constant of 47mW/s
  • Material Type I (for Beta and Curve)
  • Recognised by Underwriters Laboratories (UL) for ensured safety



Typical applications for the SL series include:

  • Limit current inrush to PSUs and battery chargers
  • Lighting circuits and thermostat protection
  • Electric motor soft start

The below table gives the full specifications of the Ametherm SL12 40002

Ametherm SL12 40002 Specifications

Specifications

Weight 0.00000 kg

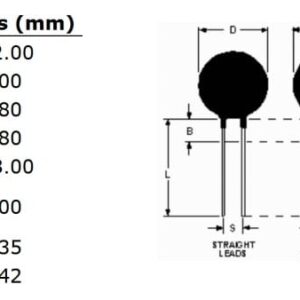

Dimensions 18.35 x 5.00 x 12.00mm
Actual Energy Failure

35J

Dissipation Constant

12.7mW/°C

Material Type

Maximum Steady State Current

2A

Package / Size

Resistance at +25°C

40Ω

Series / Model

,

Thermal Time Constant

47mW/s

Tolerance
