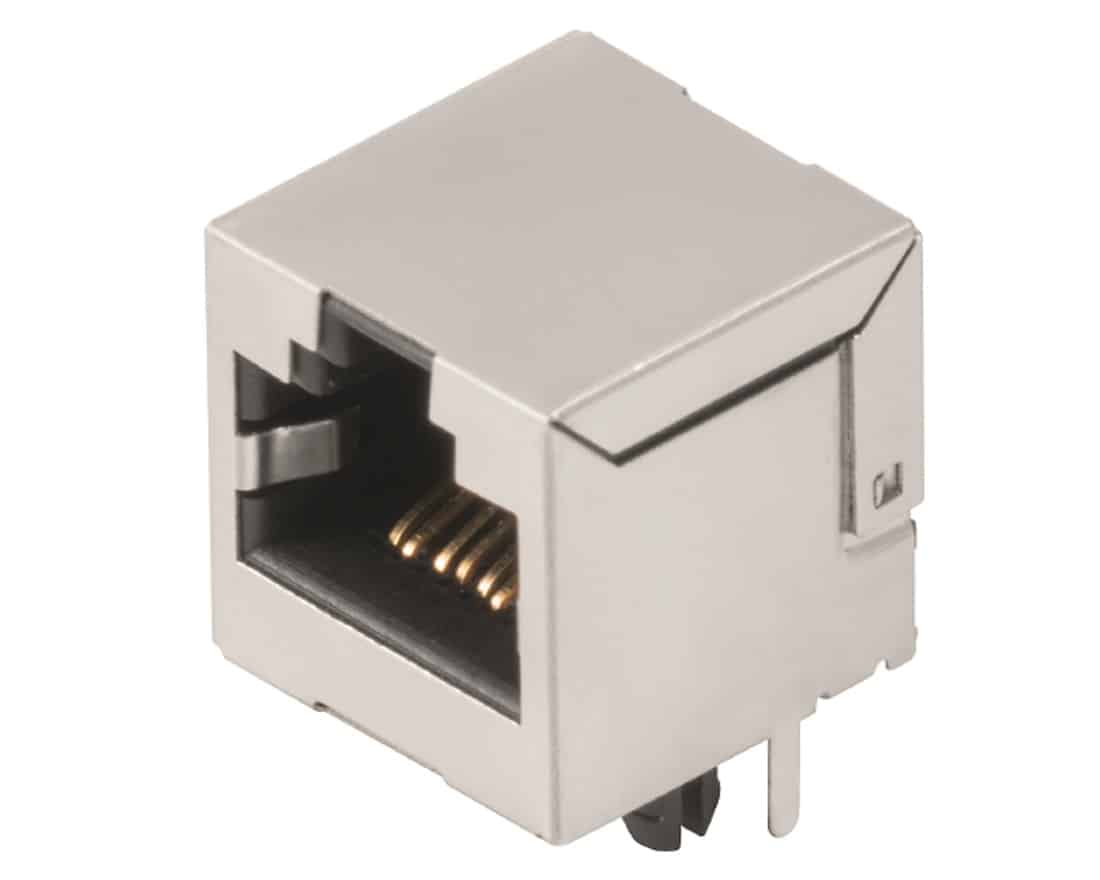

Through-hole RJ45 jack

Weidmüller RJ45C6 T1U 2.7N4N TY

  • Through-hole RJ45 jack
  • Category 6
  • Pitch of 1.27mm
  • Solder pin length of 3.2mm
  • Gold over nickel contact surface
  • Black in colour
  • Temperature range of −40°C to +85°C
  • EAC approved and UL listed
  • Compliant
Any questions, contact us?
Why buy from Rhopoint?
Frequently Asked Questions
Application Notes

The RJ45C6 T1U 2.7N4N TY series from the Weidmüller Omnimate data range, are a plug-in connector system with an eight-pole miniature plug-in system for use in connections with STP and UTP cables. This Weidmüller RJ45 jack features an outgoing elbow of 90° with an extended temperature range of −40°C to +85°C and a solder pin length of 3.2mm.

  • RJ45 jack
  • Mounting onto PCB via through-hole (THT) solder connection
  • Pitch of 1.27mm
  • Outgoing elbow of 90°
  • Shield surface being nickel-plated
  • Plugging cycles of 750
  • Approved by EAC and are UL listed
  • 8 poles
  • Solder pin length of 3.2mm
  • Contact surface of gold over nickel
  • Dielectric strength of ≥1000VDC and current rated at 1.5A
  • Temperature range −40°C to +85°C

The Weidmüller RJ45 jack series is characterised by its compactness and simplicity. It is used predominantly in:

  • Horizontal wiring
  • Wiring workstations

For further information regarding the specifications, please see the datasheet on the Technical Library tab.


Specifications

Weight 3.04400 kg

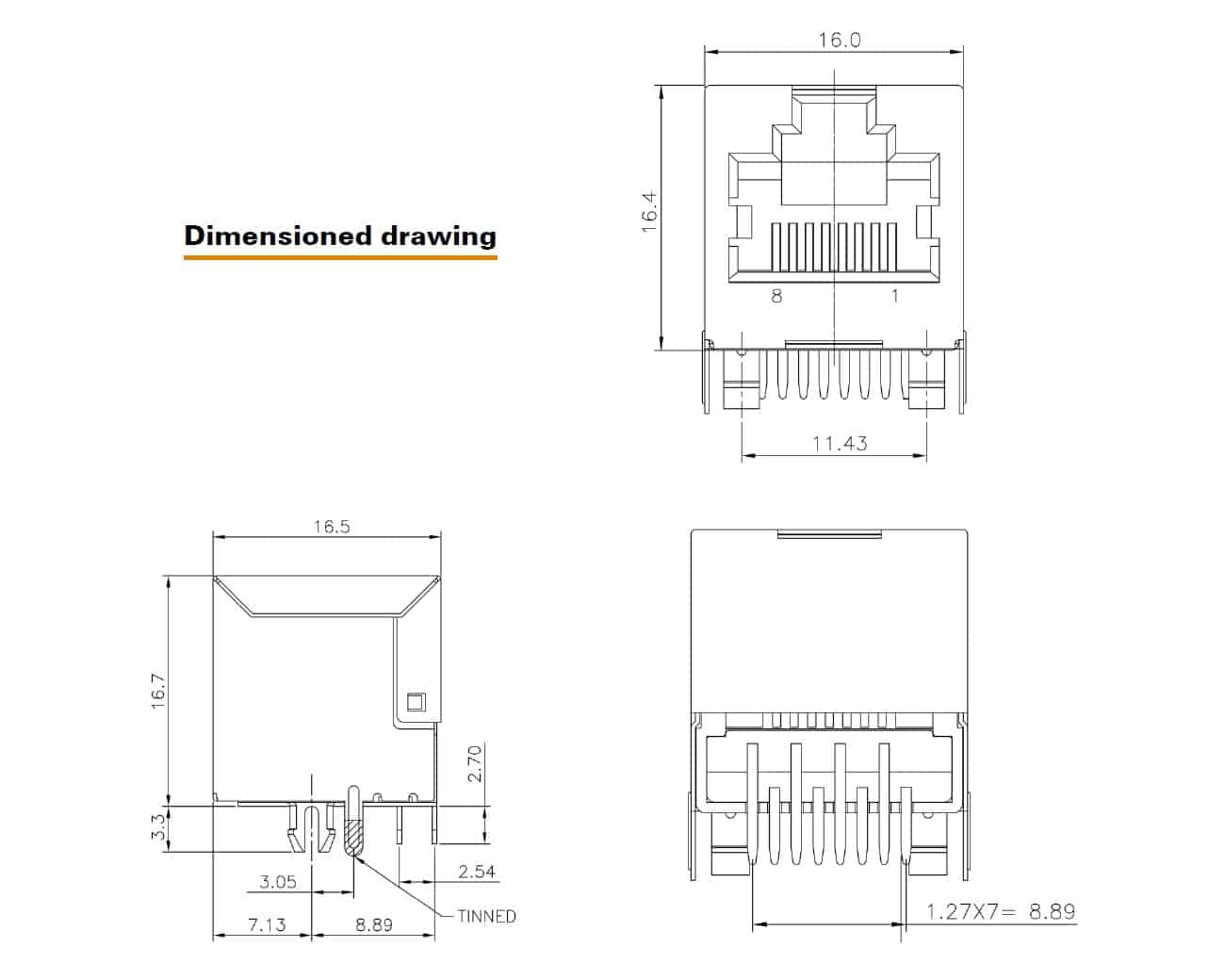

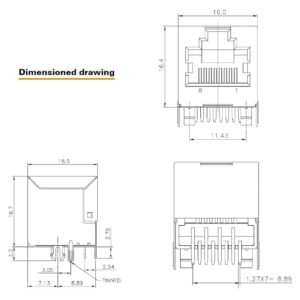

Dimensions 16.70 x 16.50 x 16.00mm
Conductor Outlet Direction

90°
LED

No LEDs
Number of Poles

8
Plugging cycles

750
Series / Model

Shielding

Nickel-plated

RJ45 Series Products

 Product nameSKUDatasheet
Weidmüller RJ45C5 R1V 3.2N4G/Y TY Weidmüller RJ45C5 R1V 3.2N4G/Y TYWeidmüller RJ45C5 R1V 3.2N4G/Y TYView Product
Weidmüller RJ45C5 T1D 3.2E4G/Y TY Weidmüller RJ45C5 T1D 3.2E4G/Y TYWeidmüller RJ45C5 T1D 3.2E4G/Y TYView Product
Weidmüller RJ45C5 T1D 3.2N4N TY Weidmüller RJ45C5 T1D 3.2N4N TYWeidmüller RJ45C5 T1D 3.2N4N TYView Product
Weidmüller RJ45C5 T1D 3.3E4N TY Weidmüller RJ45C5 T1D 3.3E4N TYWeidmüller RJ45C5 T1D 3.3E4N TYView Product
Weidmüller RJ45C5 T1U 2.8E4G/Y TY Weidmüller RJ45C5 T1U 2.8E4G/Y TYWeidmüller RJ45C5 T1U 2.8E4G/Y TYView Product
Weidmüller RJ45C5 T1U 2.8E4N TY Weidmüller RJ45C5 T1U 2.8E4N TYWeidmüller RJ45C5 T1U 2.8E4N TYView Product
Weidmüller RJ45C5 T1U 2.8N4N TY Weidmüller RJ45C5 T1U 2.8N4N TYWeidmüller RJ45C5 T1U 2.8N4N TYView Product
Weidmüller RJ45C5 T1V 3.2N4G/Y TY Weidmüller RJ45C5 T1V 3.2N4G/Y TYWeidmüller RJ45C5 T1V 3.2N4G/Y TYView Product
Weidmüller RJ45C5 T1V 3.2N4N TY Weidmüller RJ45C5 T1V 3.2N4N TYWeidmüller RJ45C5 T1V 3.2N4N TYView Product
Weidmüller RJ45C5 T1V 4.0N4N TY Weidmüller RJ45C5 T1V 4.0N4N TYWeidmüller RJ45C5 T1V 4.0N4N TYView Product
Weidmüller RJ45C6 T1U 2.7N4N TY Weidmüller RJ45C6 T1U 2.7N4N TYWeidmüller RJ45C6 T1U 2.7N4N TYView Product
Weidmüller RJ45C6 T1V 3.8N4N TY Weidmüller RJ45C6 T1V 3.8N4N TYWeidmüller RJ45C6 T1V 3.8N4N TYView Product
Weidmüller RJ45G1 R12D 3.3E4G/Y TY Weidmüller RJ45G1 R12D 3.3E4G/Y TYWeidmüller RJ45G1 R12D 3.3E4G/Y TYView Product
Weidmueller_RJ45G1_R12D_3.3E4YGYG_RL_series Weidmüller RJ45G1 R12D 3.3E4YG/YG RLWeidmüller RJ45G1 R12D 3.3E4YG/YG RLView Product
Weidmüller RJ45G1 R12D 3.3N4YG/YG RL Weidmüller RJ45G1 R12D 3.3N4YG/YG RLWeidmüller RJ45G1 R12D 3.3N4YG/YG RLView Product
Weidmüller RJ45G1 R1D 3.3E4G/Y TY Weidmüller RJ45G1 R1D 3.3E4G/Y TYWeidmüller RJ45G1 R1D 3.3E4G/Y TYView Product
Weidmüller RJ45G1 R1V 3.3N4YG/YG TY series Weidmüller RJ45G1 R1V 3.3N4YG/YG TY seriesWeidmüller RJ45G1 R1V 3.3N4YG/YG TY seriesView Product
Weidmüller RJ45M R12D 3.2N4G/Y RL series Weidmüller RJ45M R12D 3.2N4G/Y RL seriesWeidmüller RJ45M R12D 3.2N4G/Y RL seriesView Product
Weidmüller RJ45M R1D 3.3N4Y/G TY series Weidmüller RJ45M R1D 3.3N4Y/G TY seriesWeidmüller RJ45M R1D 3.3N4Y/G TY seriesView Product
Weidmuller-RJ45M-R1V-3.3N4YG-TY-series Weidmüller RJ45M R1V 3.3N4Y/G TY seriesWeidmüller RJ45M R1V 3.3N4Y/G TY seriesView Product
Weidmüller RJ45M R1V 3.3N4YG/YG TY series Weidmüller RJ45M R1V 3.3N4YG/YG TY seriesWeidmüller RJ45M R1V 3.3N4YG/YG TY seriesView Product
Weidmüller RJ45M T12D 3.3E4G/Y RL series Weidmüller RJ45M T12D 3.3E4G/Y RL seriesWeidmüller RJ45M T12D 3.3E4G/Y RL seriesView Product
Weidmüller RJ45M T1D 3.2E4N TY series Weidmüller RJ45M T1D 3.2E4N TY seriesWeidmüller RJ45M T1D 3.2E4N TY seriesView Product

RoHS Compliant Product – Weidmüller

This product is available fully compliant to the RoHS EU directive 2011/65/EU.

Weidmüller RJ45C6 T1U 2.7N4N TY Technical Library

We are pleased to provide you with a range of additional content including videos, product datasheets, case studies, white papers and application notes for your reference. Please see below for the latest content available:





DOCUMENTATION
Weidmüller RJ45C6 T1U 2.7N4N TY plug-in connector datasheet
